Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Third Cable
-
Model Number:
-
15KV-2Layer-ACSR Core
-
Size:
-
Customized
-
Voltage Rating:
-
15kV
-
Operating Temperature:
-
-40°C to +90°C
-
Conductor:
-
Aluminum Conductor Steel Reinforced
-
Insulation:
-
XLPE
-
Sheath Colour:
-
Black
-
Standard:
-
ICEA S-61-402
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Overhead
-
Conductor Material:
-
Aluminum
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Third Cable
-
Model Number:
-
15KV-2Layer-ACSR Core
-
Size:
-
Customized
-
Voltage Rating:
-
15kV
-
Operating Temperature:
-
-40°C to +90°C
-
Conductor:
-
Aluminum Conductor Steel Reinforced
-
Insulation:
-
XLPE
-
Sheath Colour:
-
Black
-
Standard:
-
ICEA S-61-402
Product Description

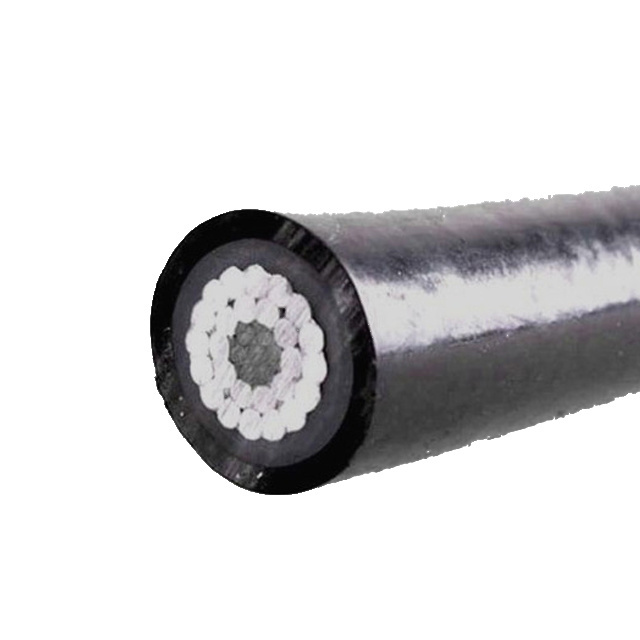

Overhead Distribution 15kV 2 AWG 4AWG ACSR Conductor XLPE/ Insulation HDPE Outer Jacket Tree Wire
Construction
Rating Voltage:15kV
Standards
:
ICEA S-61-402
Operating Temperature:-40°C to +90°C
Neutral Conductor:Aluminium Conductor Steel Reinforced
Insulation:XLPE (Cross-linked polyethylene) UV Resistant
Insulation:XLPE (Cross-linked polyethylene) UV Resistant
Packing Material:
Wooden Reel, Iron-wooden Reel, Steel Reel
Application
The cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.
It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.
It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.
Specification
|
Size
|
Stranding No.
|
Conductor dia.
|
Insulation thickness
|
Outer sheath thickness
|
Approx. Cable. Dia.
|
Approx. Cable Weight
|
Rated strength
|
|
AWG/kcmil
|
No.s
|
mm
|
mm
|
mm
|
mm
|
kg/km
|
KN
|
|
4
|
6/1
|
6.35
|
1.9
|
1.9
|
14.0
|
202
|
7.9
|
|
2
|
6/1
|
8.03
|
1.9
|
1.9
|
15.6
|
274
|
12
|
|
1/0
|
6/1
|
10.11
|
1.9
|
1.9
|
17.7
|
379
|
18.5
|
|
2/0
|
6/1
|
11.35
|
1.9
|
1.9
|
19.0
|
451
|
22.4
|
|
3/0
|
6/1
|
12.75
|
1.9
|
1.9
|
20.4
|
539
|
28
|
|
4/0
|
6/1
|
14.30
|
1.9
|
1.9
|
21.9
|
643
|
35.3
|
|
266.8
|
18/1
|
15.47
|
1.9
|
1.9
|
23.1
|
656
|
29.1
|
|
266.8
|
26/7
|
16.31
|
1.9
|
1.9
|
23.9
|
673
|
47.7
|
|
336.4
|
26/7
|
18.29
|
1.9
|
1.9
|
25.9
|
826
|
59.5
|
|
336.4
|
30/7
|
18.82
|
1.9
|
1.9
|
26.4
|
924
|
73.1
|
|
397.5
|
24/7
|
19.61
|
1.9
|
1.9
|
27.2
|
906
|
61.7
|
|
397.5
|
26/7
|
19.89
|
1.9
|
1.9
|
27.5
|
960
|
68.8
|
|
477
|
26/7
|
21.79
|
1.9
|
1.9
|
29.4
|
1134
|
82.3
|
|
477
|
30/7
|
22.43
|
1.9
|
1.9
|
30.0
|
1271
|
100.5
|
|
556.5
|
24/7
|
23.22
|
1.9
|
1.9
|
30.8
|
1232
|
83.6
|
|
556.5
|
26/7
|
23.55
|
1.9
|
1.9
|
31.2
|
1307
|
95.4
|
|
636
|
24/7
|
24.82
|
1.9
|
1.9
|
32.4
|
1393
|
92.9
|
|
636
|
26/7
|
25.15
|
1.9
|
1.9
|
32.8
|
1478
|
106.4
|
|
795
|
26/7
|
28.14
|
2.0
|
1.9
|
36.3
|
1836
|
133
|
|
795
|
45/7
|
27.00
|
2.0
|
2.0
|
35.1
|
1534
|
93.3
|
