200x200mm 3d printer 18x40mm 24v adhesive flexible kapton heater

200x200mm 3d printer 18x40mm 24v adhesive flexible kapton heater

FOB Reference Price: Get Latest Price

≥10 Pieces

US $11

≥50 Pieces

US $8

≥100 Pieces

US $6

≥500 Pieces

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: packed, Cutomer's Request

Weight:: 0.08 KG

Warranty:: one year, One year

Power Source::: Electric

Model Number:: kapton round heat plate

Max Operating Temperature:: 200 degree celsius

Power:: Customized

Wattage Tolerance:: +5%, -10%

Option:: Sensitive Adhesive, Thermostat and so on

Quick Details

Type:: Flexible Heater

Power Source:: Electric

Voltage:: 220v and can be customized, 12v/24v/220v/240v

Place of Origin:: Jiangsu, China

Brand Name:: Hongtai

Dimension(L*W*H):: packed, Cutomer's Request

Weight:: 0.08 KG

Warranty:: one year, One year

Power Source::: Electric

Model Number:: kapton round heat plate

Max Operating Temperature:: 200 degree celsius

Power:: Customized

Wattage Tolerance:: +5%, -10%

Option:: Sensitive Adhesive, Thermostat and so on

Related Products

Ceramic heater

Ceramic heater emitter

Sunna heater

Quartz heater

Tubular heater

Silicone heater

Product Description

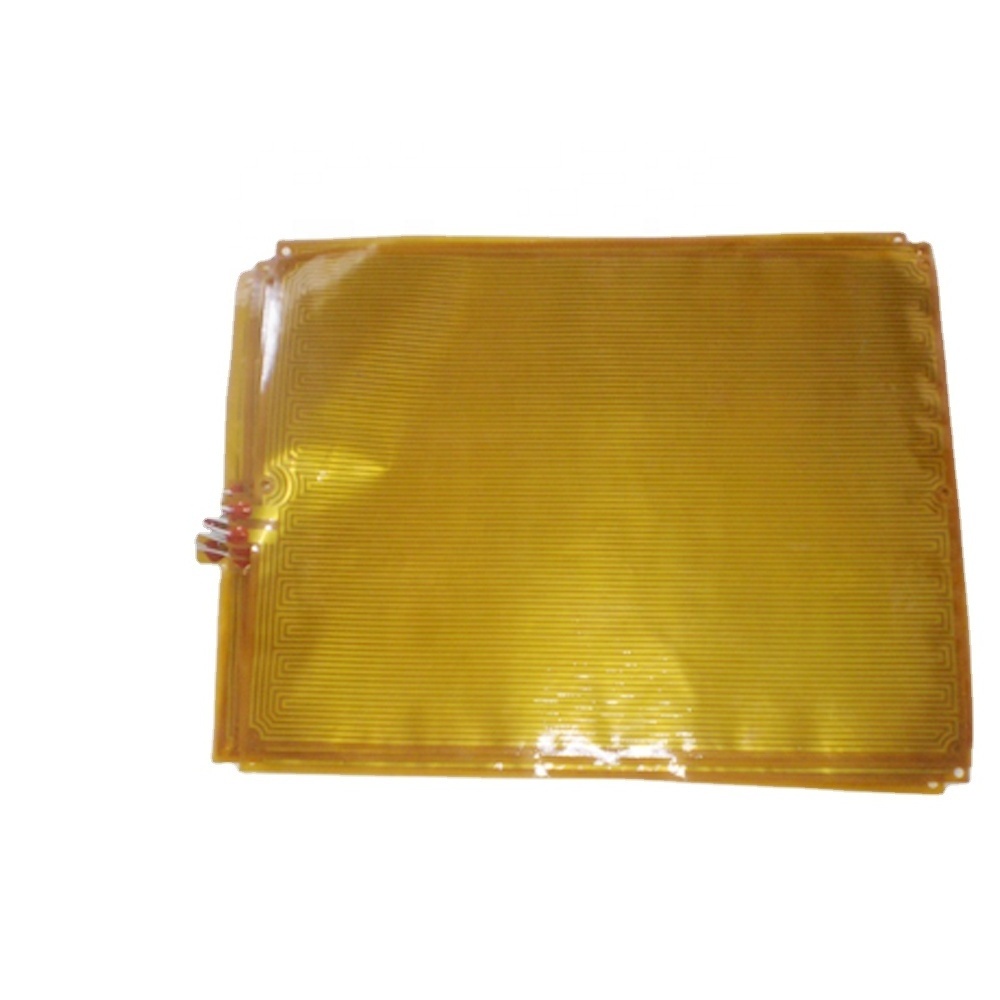

Polyimide heater is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 180 degree Celsius. Customize 12V,24V,36V 3D printer flexible heating film. This is very thin, the thickness is about 0.2mm, it is very light, so it is widely used on 3D printer.

Mounting	PSA or mechanical
Watt density	1.1-6.5w/cm2
Voltage range	1.5v~400v
Power density range	0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2)
Using temperature range	-60~200°C(-140~392°F)
Width range	10mm~500mm(0.39"~19.68")
Length range	10mm~1800mm(0.39"~70.86")
Thickness range	Standard:0.126~0.266mm(0.005"~0.01")
Plug	Chinese,British, American, European and so on
Exit	teflon, kapton or silicone insulated leads

Photo Shows

Features

☆ High tensile strength

☆ Low out gassing
☆ Excellent dimensional stability
☆ Thin light weight profile
☆ High watt densities
☆ Transparent material

Flexible Heater Order Guide

1. Wattage and voltage
2. Size required
3. Lead wire required
4. 3M adhesive or temperature control
5. Drawing or Sample required for special configuration.

Application

* Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.

* Stabilize optoelectronic components
* Test or simulate integrated circuits
* Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD's
* Protect aircraft electronic and mechanical devices in cold weather / area.
