Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
INWELT/OEM
-
Wavelength:
-
1075nm±10mm
-
Focal Spot Diameter:
-
06.-0.5nm
-
Dimensions:
-
650x300x621mm(LxWxH)
-
Weight (KG):
-
75 KG
-
Applicable Industries:
-
Domestic Appliance, Aerospace, Shipbuilding Rail, Car Manufacture, New Energy Power Battery, Chip Semiconductor, Hardware Appliances, Medical Instruments
-
Marketing Type:
-
New Arrival
-
Core Components:
-
Laser wedling machine, laser gun, wire feeder
-
Welding Mode:
-
976nm Wobble Pendulum Laser Welding
-
Laser Power:
-
1000/1500/2000W
-
Cooling System:
-
Air Cooling
-
Welding Depth:
-
0.1 - 3.5mm
-
Output Power Undulate Range:
-
<5%
-
Max Modulation Frequency:
-
50KHZ
-
Indicates the laser wavelength:
-
650nm
-
Input Voltage:
-
220 VAC/50Hz/60Hz, <18A
Quick Details
-
Max. Output Power:
-
1500W
-
Use:
-
Angle/verical/Stitching/Stack Welding
-
Laser Source Brand:
-
Raycus/MAX/IPG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
INWELT/OEM
-
Wavelength:
-
1075nm±10mm
-
Focal Spot Diameter:
-
06.-0.5nm
-
Dimensions:
-
650x300x621mm(LxWxH)
-
Weight (KG):
-
75 KG
-
Applicable Industries:
-
Domestic Appliance, Aerospace, Shipbuilding Rail, Car Manufacture, New Energy Power Battery, Chip Semiconductor, Hardware Appliances, Medical Instruments
-
Marketing Type:
-
New Arrival
-
Core Components:
-
Laser wedling machine, laser gun, wire feeder
-
Welding Mode:
-
976nm Wobble Pendulum Laser Welding
-
Laser Power:
-
1000/1500/2000W
-
Cooling System:
-
Air Cooling
-
Welding Depth:
-
0.1 - 3.5mm
-
Output Power Undulate Range:
-
<5%
-
Max Modulation Frequency:
-
50KHZ
-
Indicates the laser wavelength:
-
650nm
-
Input Voltage:
-
220 VAC/50Hz/60Hz, <18A
Product Description
INWELT's new arrival portable fiber laser hand-held welding machine is based on 976nm pumping technology. It use the latest generation of fiber laser modules, adopting independent research and development of a wobble welding head.

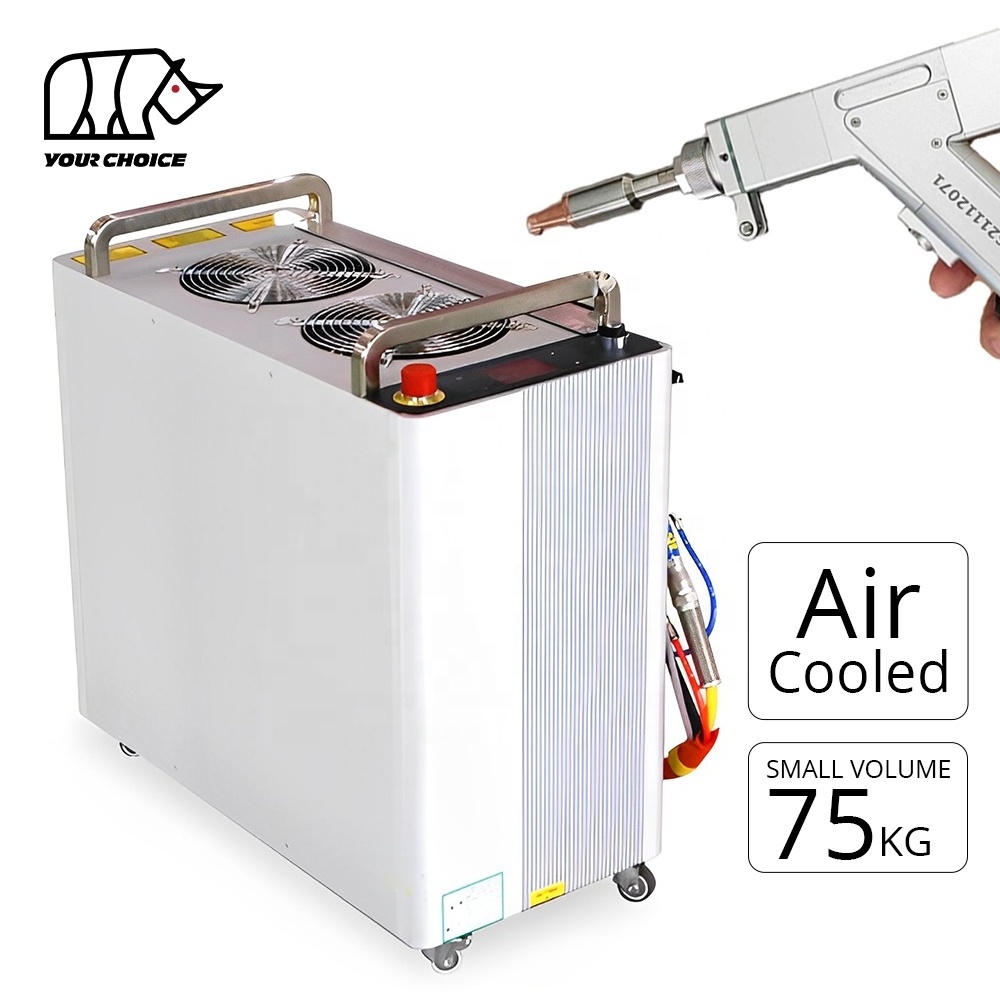

Air-cooling Handheld Fiber Laser Welding Machine
On present sales of 1000W and 1500W air-cooling laser welders. The advantage lies in the high internal integration, small volume and only 75KG weight, which is convenient for transportation and does not need to replace water.
Independent R&D Wobble welding head
Independent R&D Wobble welding head, swing welding mode, laser spot width can be adjusted, welding fault tolerance is strong,make up for the disadvantage of laser welding light spot too small , expand the machining parts tolerance range and weld width, to get better weld forming.
Specification
Technical Parameters:
|
Machine Parameters
|
|
|
|
Size
|
650x300x621[mm](L×W×H)
|
|
|
Weight
|
75[kg]
|
|
|
Optical Parameters
|
|
|
|
Output Power (Watt)
|
1500W
|
|
|
Working Mode
|
CW/Modulating Pulse Linear Array/Timing
|
|
|
Output Power Adjusting Range (%)
|
1-100%
|
|
|
Laser Wavelength (nm)
|
1075 ± 10 nm
|
|
|
Output Power Undulate Range
|
＜5%
|
|
|
Max Modulation Frequency
|
50KHZ
|
|
|
Laser Response Time
|
＜10us
|
|
|
Indicating Laser Wavelength
|
650
|
|
|
Indicating Light Adjusting Range
|
＜1mW
|
|
|
Conduction System Parameters
|
|
|
|
Port Type
|
Automatic Wire Feeding Welding Head
|
|
|
Collimating Focal Distance
|
50mm
|
|
|
Focusing Distance
|
150mm
|
|
|
Transmission Length
|
Standard 5±0.5m, （Optional 10m）
|
|
|
Conduction System Parameters
|
|
|
|
Cooling and Protection Gas
|
Inert Gas
|
|
|
Working Ambient Temperature
|
10-50 ℃
|
|
|
Working Ambient Humidity
|
≤85 degree
|
|
|
Input Voltage
|
220 VAC/50Hz/60Hz
|
|
|
Machine Power
|
≤ 4.8KW
|
|
Wobble Laser Head Welding Depth Data:
|
Power
|
SS
|
Carbon Steel
|
Galvanized Plate
|
|
500W
|
0.5-0.8mm
|
0.5-0.8mm
|
0.5-0.8mm
|
|
800W
|
0.5-1.2mm
|
0.5-1.2mm
|
0.5-1.0mm
|
|
1000W
|
0.5-1.5mm
|
0.5-1.5mm
|
0.5-1.2mm
|
|
2000W
|
0.5-3mm
|
0.5-3mm
|
0.5-2.5mm
|
