Quick Details
-
Weight:
-
Depends on Boiler Capacity
-
Product name:
-
Biomass Steam Boiler
-
Design fuel:
-
Biomass Pellet
-
After-sales Service Provided:
-
Online Service
-
Function:
-
Industrial Usage
-
Color:
-
Customers Requirment
-
Steam temperature:
-
170/184/194
-
Thermal efficiency:
-
92.4%--94.5%
-
Capacity:
-
0.1-1t/h
-
Manufacturer:
-
Zhongde
-
Material:
-
Special Boiler Steel Plate
Quick Details
-
Place of Origin:
-
HENAN
-
Brand Name:
-
Zhongde
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
Product name:
-
Biomass Steam Boiler
-
Design fuel:
-
Biomass Pellet
-
After-sales Service Provided:
-
Online Service
-
Function:
-
Industrial Usage
-
Color:
-
Customers Requirment
-
Steam temperature:
-
170/184/194
-
Thermal efficiency:
-
92.4%--94.5%
-
Capacity:
-
0.1-1t/h
-
Manufacturer:
-
Zhongde
-
Material:
-
Special Boiler Steel Plate
Product Description

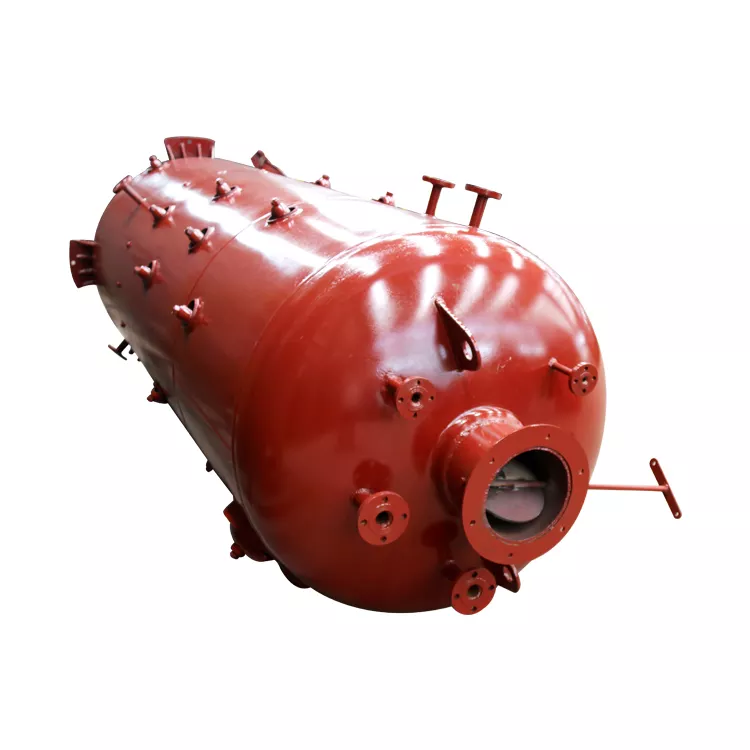

LSG/H TYPE
vertical horizontal water tube steam boiler adopts the traditional combustion technology. The fuel is put into the grate from the furnace door for combustion. The flue gas is alternately washed by the horizontal water tubes in the furnace liner. The fine carbon black and dust contained in the flue gas are cut by the multi-layer tube bundle and fall on the grate for re combustion, and then discharged into the atmosphere through the economizer and chimney. The boiler with this structure adopts multiple groups of horizontal water pipes and cupola structures, and has enough hand holes for mechanical cleaning of dirt. Moreover, it has compact structure, convenient installation and safe and reliable operation.
Product Details
Product specification
|
Model
|
LSG/H0.1
|
LSG/H0.2
|
LSG/H 0.3
|
LSG/H0.5
|
LSG/H 0.7
|
LSG/H 1
|
|||||
|
Rated steam capacity(t/h)
|
0.1
|
0.2
|
0.3
|
0.5
|
0.7
|
1
|
|||||
|
Rated steam pressure(Mpa)
|
0.4/0.7/1.0
|
|
|
|
|
|
|||||
|
Rated steam temperature(℃ )
|
151/170/184
|
|
|
|
|
|
|||||
|
Heating area (m2)
|
4.5
|
8
|
13
|
20.5
|
28.5
|
40.5
|
|||||
|
Boiler weight （t）
|
1.05
|
1.2
|
1.75
|
2.2
|
3.2
|
4.85
|
|||||
|
SIZE φ×H（mm）
|
700× 2610
|
900×2960
|
1000×3300
|
1200× 4000
|
1400×4400
|
1600×5000
|
|||||
Application & Boiler case
DZH steam boiler has high heating temperature, low working pressure, energy saving, and can be widely used in various industrial heating processes. Such as petrochemical industry, synthetic fiber industry, textile printing and dyeing, plastic rubber, paper industry, wood industry, building materials, machinery industry, food industry, electrical equipment, coking industry, metal and foundry industry, detergent industry, fat and coating industry, carbon Su industry.
