Quick Details
-
Filling Accuracy:
-
±1%, ±1%
-
Voltage:
-
AC 110V or 230V
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Ditron
-
Dimension(L*W*H):
-
36*20*25
-
Weight:
-
5 KG
-
Product name:
-
Lotion Bottle Liquid Filling Machine
-
Model:
-
GR1-6BS
-
Filling volume:
-
0-250ml/min
-
Filling nozzles:
-
2mm;4mm;
-
Machine material:
-
Steel
-
Number of channels:
-
1 or 2
-
Function:
-
Liquid Filling
-
Filling pump:
-
Peristaltic pump
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Paper
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1%, ±1%
-
Voltage:
-
AC 110V or 230V
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Ditron
-
Dimension(L*W*H):
-
36*20*25
-
Weight:
-
5 KG
-
Product name:
-
Lotion Bottle Liquid Filling Machine
-
Model:
-
GR1-6BS
-
Filling volume:
-
0-250ml/min
-
Filling nozzles:
-
2mm;4mm;
-
Machine material:
-
Steel
-
Number of channels:
-
1 or 2
-
Function:
-
Liquid Filling
-
Filling pump:
-
Peristaltic pump

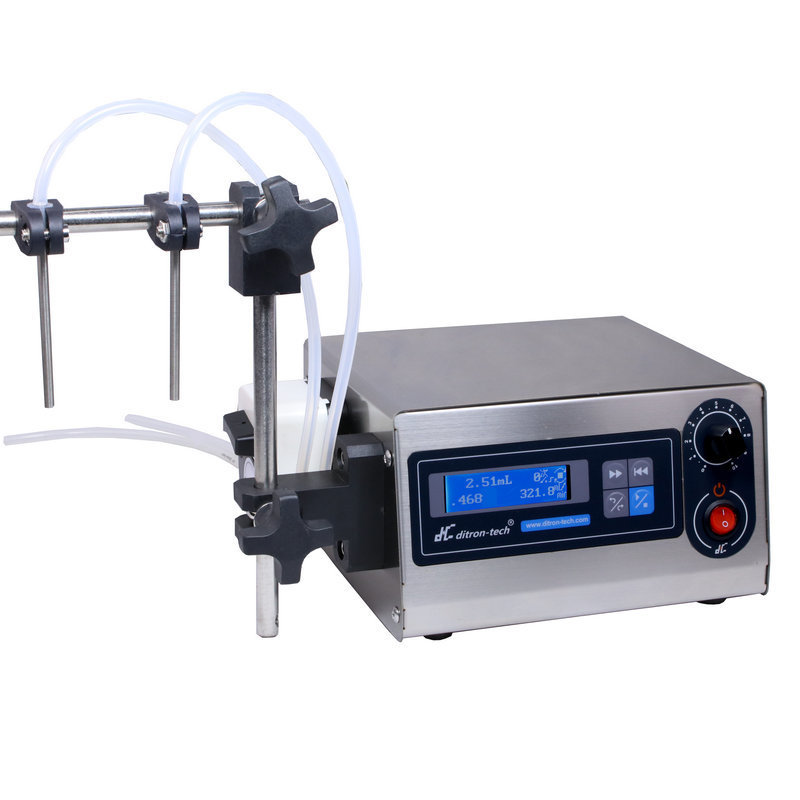

Hot selling cartridge candle wax bottle water filling machine
|
Product model |
GR1-6BS Peristaltic Pump filling machine |
|
Filling nozzle |
1 or 2 |
|
Flow range |
0.02-288mL/min |
|
Filling range |
0.1mL-999L |
|
Filling times |
1-9999 times |
|
Interval time |
0.1S-24Hr |
|
Display |
Flow and speed parameters display in the same LCD screen |
|
Direction control |
Clock-wise/counter clock-wise direction |
|
Operation mode |
Membrane keypad and rotary encoded switch, more convenient and fast |
|
Power-down memory function |
After power on, running as before |
|
Back to the suction function |
Under distribution mode, the pump runs reverse a certain angle, to prevent the liquid drop after pump stop |
|
Distribution calibration function |
Calibrate filling volume automatically, distribution volume rectify, filling accuracy ±0.5% |
|
Foot switch control |
Foot switch control for Start/Stop |
|
Filling nozzle |
various nozzle for choice, inner diameter 2.2mm/2.5mm/4mm/ for choice |
|
Power consumption |
30W |
|
Power supply |
Wide range voltage AC90-260V, 50Hz/60Hz |
Q: Are you a manufacture or trading company?
A: Ditron is the manufacture for Peristaltic pump, Syringe pump, Gear pump and Piston pump in China .
Q: Why choose peristaltic pump?
A: Peristaltic pump has follow advantages: Non-contamination, easy to clean, low shear and simple maintenance.
Q: How to prolong the life of pump?
A: Keep the pump clean and dry.
Q: How to prolong the life of tubing?
A: 1) unload the tubing when the pump is not working.
* change the segment of tubing after a period working.
