Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JCYC
-
Model Number:
-
HD-10
-
Product name:
-

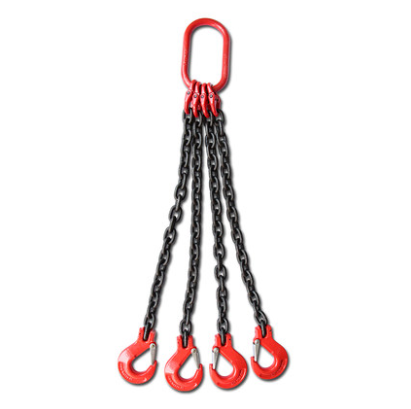

Four leg lifting chain sling
-
Chain:
-
G80
-
Model numer:
-
4 legs
-
Usage:
-
Lifting
-
Surface treatment:
-
Painted
-
Material:
-
steel alloy
-
Application:
-
Lifting Goods
-
Capacity:
-
1 ton- 10 ton
-
Length:
-
3m 6m 9m
-
MOQ:
-
10pcs
Quick Details
-
Type:
-
Chain Sling
-
Shape:
-
Endless
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JCYC
-
Model Number:
-
HD-10
-
Product name:
-
Four leg lifting chain sling
-
Chain:
-
G80
-
Model numer:
-
4 legs
-
Usage:
-
Lifting
-
Surface treatment:
-
Painted
-
Material:
-
steel alloy
-
Application:
-
Lifting Goods
-
Capacity:
-
1 ton- 10 ton
-
Length:
-
3m 6m 9m
-
MOQ:
-
10pcs
Product Application
1. Type of sling to be used - endless, single, two, three or four leg.
2. Capacity - the sling must be both long enough and strong enough for the load and the slinging method.
3. Apply the mode factor for the slinging method.
4. For use at temperatures exceeding 100°C or below minus 40°C refer to the suppliers instructions.
5. Where slings may come into contact with acids or chemicals consult the supplier.
6. In the case of multi-leg slings the angle between the legs should not be less than 30° or exceed the maximum marked.
7. Multi-leg slings exert a gripping force on the load which must be taken into account, this increases as the angle between the legs increases.
8. Due to the possibility of sparking, the use of aluminium is restricted in certain classified atmospheres, so ensure the ferrule is suitable for such conditions.
onditions, abandon the safety hazards, improve the stability of the operation, put an end to accidents, to ensure transport safety.
Product Specification:
|
Diameter of chain(mm) |
WLL(T) |
Main link(mm) |
Weight of chain(kg/m) |
|
|
≤45° |
45°-60° | |||
|
6 |
2.2 |
1.5 |
20*140*70 |
0.79 |
|
8 |
4.1 |
3 |
22*170*90 |
1.38 |
|
10 |
6.4 |
4.5 |
25*178*90 |
2.2 |
|
13 |
11 |
7.7 |
32*230*120 |
3.8 |
|
16 |
16.3 |
11.7 |
38 * 267 * 135 |
5.63 |
|
20 |
23.5 |
16.5 |
50 * 350 * 19 0 |
8.6 |
|
22 |
31.5 |
22.5 |
50 * 350 * 19 0 |
10.2 |
|
26 |
42 |
30 |
57 * 405 * 20 0 |
14 |
|
32 |
66 | 47 | 72 * 460 * 25 0 | 22.29 |
Main Feature:
1.Electronically controlled chain machines have been specially built and developed to provide advanced manufacturing processing for a high quality G80 lifting chain.
2.G80 lifting chain is made of high grade alloy steel that are carefully chosen.
3.Strict control of material acceptance and processing is carried out by skilled personnel.
4.Sophisticated multi-process heat-treatment techniques have been developed to keep the G80 lifting chain quality.
5.Non-destructive testing systems are used with magnetic crack detection (magna flux system),being applied during final inspection.
