Quick Details
-
Weight:
-
650 KG
-
Name:
-
tree branch grinder pine wood chipper garden waste shredder machine
-
Application:
-
crush wood to sawdust powder or chips
-
Keywords:
-
High Output Mobile Wood Crusher
-
Suitable for:
-
Biomass Pellet Plant,making charcoal briquette,mushroom cultivation
-
Quality:
-
Top Level
-
Spare parts:
-
hammer blades,mesh screen,knives
-
Feature:
-
High Efficiency Low Cost,multifunctional
-
Package:
-
wooden case
Quick Details
-
Use:
-
WOOD CHIPPER
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ainuok
-
Weight:
-
650 KG
-
Name:
-
tree branch grinder pine wood chipper garden waste shredder machine
-
Application:
-
crush wood to sawdust powder or chips
-
Keywords:
-
High Output Mobile Wood Crusher
-
Suitable for:
-
Biomass Pellet Plant,making charcoal briquette,mushroom cultivation
-
Quality:
-
Top Level
-
Spare parts:
-
hammer blades,mesh screen,knives
-
Feature:
-
High Efficiency Low Cost,multifunctional
-
Package:
-
wooden case

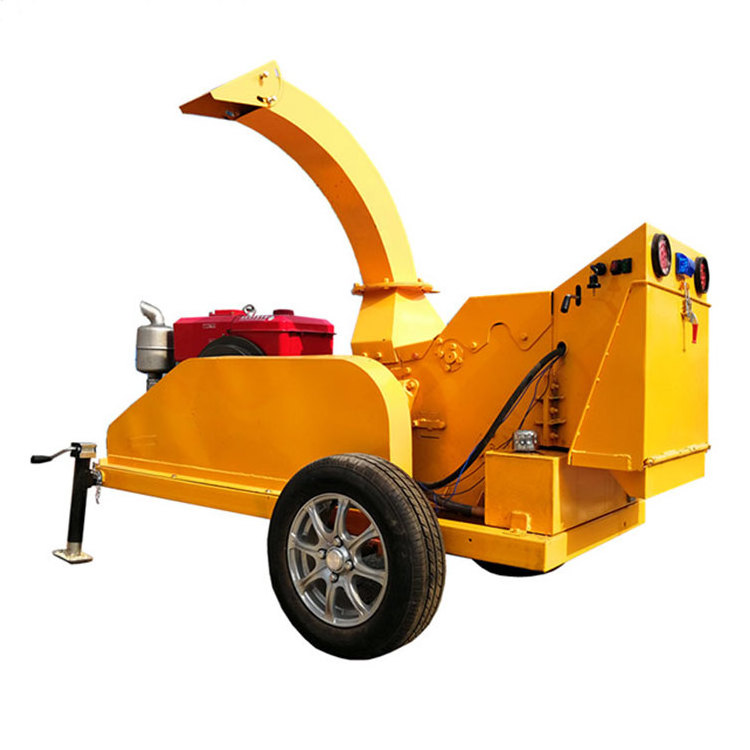

Diesel tree branch grinder pine wood chipper garden waste shredder machine
Mobile Wood branch shredder is a movable wood smasher, widely used for crushing branches and other plant scrap.Crushed chips can be used as a cover of garden ground , organic fertilizer, edible fungi base, biomass power generation, also can be used to produce high-density board, particle board, paper industry etc.
Raw materials suitable for crushing
Materials before crushing
After crushing
Application of crushed material
1.Can be buried in the ground to improve land organic matter.
2.Can be used as a good organic fertilizer and improve soil quality.
3.Can be the cover on bare soil to prevent dust and weed growth.
4.Can be used as herbivorous animal feed.
5.Can be used as a base for edible fungus cultivation.
6.Can be used as potting soil filler.
7.Can be used as raw materials for pulp and wood-based panels.
8.Can be used as bio-fuel.
Features of machine:
1. Mobile operation: Equipped with tires, can be towed and moved, diesel engine power, equipped with a generator, can charge the battery while working.
2. Hydraulic feeding: The hydraulic system is used to power the feeding pressure rollers, which runs smoothly and easy to operate. It has manual control of three stages: forward-stop-backward.
3. Direct loading: a 360-degree rotating discharge port is provided, which can spray the crushed wood chips into the cabin directly and conveniently.
4. Save labor cost: The volume of the branches can be reduced to 1 / 8-1 / 10 after crushing, which can greatly reduce the transportation cost. After crushing, the trucks can be directly loaded, which saves the labor costs of repeated loading and unloading.
Technical Par a meter
| Model | MZ-6130 | MZ-6145 |
| Knife roller diameter | 300mm | 500mm |
| Power | 32HP | 102HP |
| Start method | Electric start | Electric start |
| Rotary speed | 2600r/min | 1800r/min |
| Pcs of knives | Moving blade 3,fixed blade 1 | Moving blade 4,fixed blade 1 |
| Length of Knives | 300mm | 230mm |
| Inlet size | 300*200mm | 450*380mm |
| Dimension | 2440*1400*1320m | 4000*1600*1700mm |
| Weight | 650kg | 1500kg |
