Quick Details
-
Product name:
-
Foam Hydrant
-
Material:
-
Ductile Cast Iron, Brass
-
Color:
-
Red
-
Working Pressure:
-
1.6Mpa
-
Strength Test Pressure:
-
2.4Mpa
-
Size:
-
DN80, DN100, DN150
-
Finishing:
-
External Powder Painting
-
Applicable Medium:
-
Foam Mixture
-
Application:
-
Fire Foam System
-
Certificate:
-
ISO CCC
Quick Details
-
Place of Origin:
-
Fujian
-
Brand Name:
-
CA
-
Model Number:
-
PS 150/80*2, PS 150/65*2, PS 100/65*2, PS 80/50*2
-
Product name:
-
Foam Hydrant
-
Material:
-
Ductile Cast Iron, Brass
-
Color:
-
Red
-
Working Pressure:
-
1.6Mpa
-
Strength Test Pressure:
-
2.4Mpa
-
Size:
-
DN80, DN100, DN150
-
Finishing:
-
External Powder Painting
-
Applicable Medium:
-
Foam Mixture
-
Application:
-
Fire Foam System
-
Certificate:
-
ISO CCC
1. Pr oduct Description
1. Product Introduction
Model PS foam fire hydrant is one of important device applied in foam fire extinguishing system, especially applicable for the highly inflammable liquid and the production, storage and application occassions of highly inflammable liquids where are capable of large area of fire hazard.
2. Structure Principle

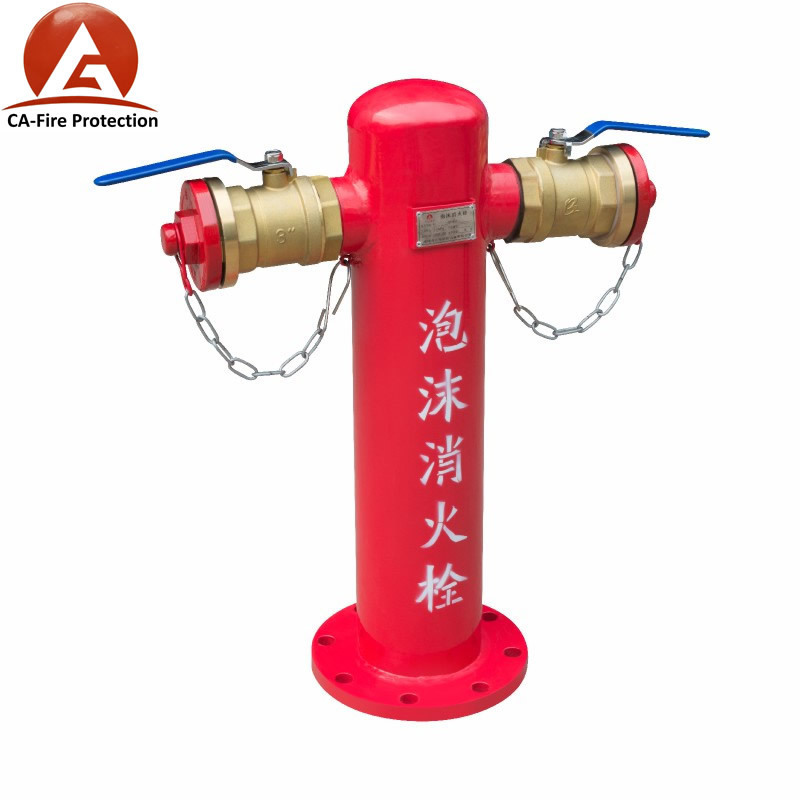

Foam fire hydrant is mainly composed of flange, cylinder, ball valve, nipple, fire pipe thread and end cap. It is installed at the preset position in the protection area, its flange is connected to liquid supply pipeline, the ball valve and the end cap are closed in normal times. When fire accident occurs, please turn off the end cap first, connect the fire hose,open the ball valve to transport the foam concentrate to foam generator, the fire hydrant must be used within the stipulated pressure range.
2. Product Parameters & Images
Type | Nominal diameter(mm) | Specifications of pipe thread connector(mm)*Qty | Rated operating pressure(MPa) |
PS 80-50*2 | DN80 | 50*2 | 1.6 |
PS100-65*2 | DN100 | 65*2 | |
PS150-65*2 | DN150 | 65*2 | |
PS150-80*2 | DN150 | 80*2 |
