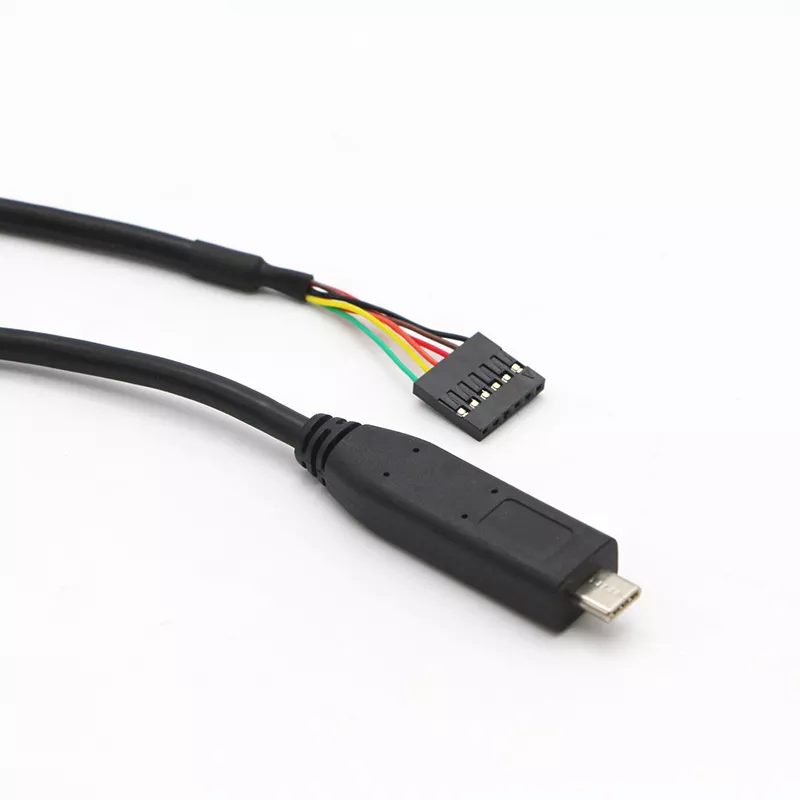

OEM FTDI TTL-232R Uart TTL 5V 3.3V USB type C to RS232 Serial Convetrer Cable

OEM FTDI TTL-232R Uart TTL 5V 3.3V USB type C to RS232 Serial Convetrer Cable

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Ftdi Ttl Cable

Model Number:: USB TO UART CABLE

Place of Origin:: Guangdong, China

Function:: data transfer, connection for USB interface and PC

Product name:: Ftdi Ttl Cable

Cable type:: FTDI cable

Interface:: type c & ttl serial

Feature:: no drive

Application:: IT solution/Construction

Compatible:: windows/Luix

Quick Details

USB Type:: TYPE-C

Material:: PVC

Connector:: USB 2.0 Connector

Brand Name:: Ftdi Ttl Cable

Model Number:: USB TO UART CABLE

Place of Origin:: Guangdong, China

Function:: data transfer, connection for USB interface and PC

Product name:: Ftdi Ttl Cable

Cable type:: FTDI cable

Interface:: type c & ttl serial

Feature:: no drive

Application:: IT solution/Construction

Compatible:: windows/Luix

Ftdi Ttl Cable

Factory Manufacture 5V/3.3V Support Pl2303 Debug Ftdi Ttl Cable

______________________________________________________________________________

The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTDI’s
FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The
cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is
encapsulated into the USB connector end of the cable. The FT232R datasheet, DS_FT232R, is available at
http://www.ftdichip.com. The other end of the cable comes with a selection of different connectors
supporting various applications
Cables are FCC, CE, RoHS compliant and are available at TTL levels of +5V and +3.3V.
Cables are available with either a 6-way SIL,0.1” pitch connector, a 3.5mm Audio Jack, an 8 way, keyed
2mm pitch connector (intended for use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended
connections
The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long
and supports a data transfer rate up to 3 Mbaud. Each cable supports the FTDIChip-ID™, with a unique
USB serial number programmed into the FT232R. This feature can be used to create a security or
password protected file transfer access using the cable. Further information and examples on this feature
are available at http://www.ftdichip.com under FTDIChip-ID Projects.
The TTL-232R cables require USB drivers, available free from http://www.ftdichip.com, which are
used to make the FT232R in the cable appear as a virtual COM port (VCP). This then allows the user to
communicate with the USB interface via a standard PC serial emulation port (for example TTY). Another
FTDI USB driver, the D2XX driver, can also be used with application software to directly access the
FT232R on the cable though a DLL.
