Quick Details
-
Brand Name:
-
Sinoway
-
Model Number:
-
SWD100
-
Dimension(Long * Breadth * High):
-
4890mm*2240mm*3120mm
-
Engine power:
-
100hp
-
Transmission:
-
Mechanical
-
Color:
-
Yellow
-
Track width:
-
450mm
Quick Details
-
Machine Weight:
-
10 ton
-
Dozing Capacity:
-
3.5m3
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sinoway
-
Model Number:
-
SWD100
-
Dimension(Long * Breadth * High):
-
4890mm*2240mm*3120mm
-
Engine power:
-
100hp
-
Transmission:
-
Mechanical
-
Color:
-
Yellow
-
Track width:
-
450mm
Product Description
Engine: choose the pressure rising engine produced by British Ricardo joint-venture technology, lower oil consumption and stronger torsion.
Main clutch comprises of dry, dual-sheet and common are combined with and it features simple construction, more reliable and easier maintenance.
Gearbox is applied to 4F plus 2R mechanical shift, and it features higher efficiency, simple operation, easier maintenance and more reliable operation.
Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintenance, lightly and convenient operation.
Transmissions: choose two classes, straight teeth, big modulus gear transmission, stronger in carrying capacity and higher in reliability.
Operation device: several devices such as direct-pouring shovel, environmentally hydraulic, angle shovel, coal-pushed shovel and soil scarifier are available for user.
Main clutch comprises of dry, dual-sheet and common are combined with and it features simple construction, more reliable and easier maintenance.
Gearbox is applied to 4F plus 2R mechanical shift, and it features higher efficiency, simple operation, easier maintenance and more reliable operation.
Turning clutch: choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintenance, lightly and convenient operation.
Transmissions: choose two classes, straight teeth, big modulus gear transmission, stronger in carrying capacity and higher in reliability.
Operation device: several devices such as direct-pouring shovel, environmentally hydraulic, angle shovel, coal-pushed shovel and soil scarifier are available for user.

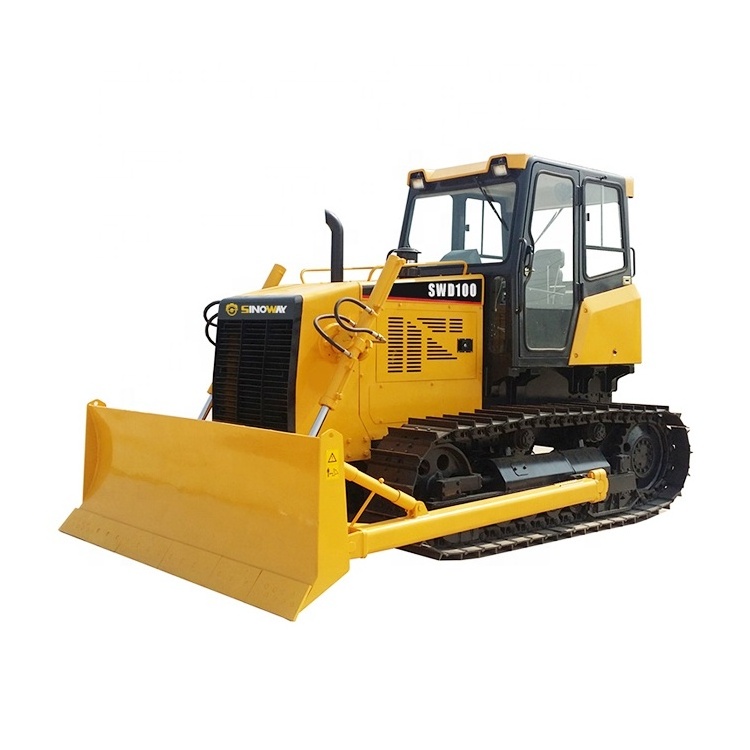

Product Show
Product Paramenters
|
Engine
|
|
|
Model
|
RICARDO tech diesel engine LR6A3
|
|
Type
|
Six-cylinder,water-cooled normally aspirated,mechanical injection
|
|
Rated power
|
73.5KW
|
|
Rated speed
|
2300rpm
|
|
Implement Hydraulic System
|
|
|
Hydraulic flow rate
|
115L/min
|
|
Hydraulic pressure
|
16MPa
|
|
Pump type
|
Gear pump
|
|
Control valve
|
Hand operated
|
|
Under Carriage System
|
|
|
Sprocket
|
Integral
|
|
Number of track rollers (each side)
|
6
|
|
Number of carrier rollers (each side)
|
(4 single, 2 double)
|
|
Number of front idler (each side)
|
11
|
|
Track type
|
Single grouser
|
|
Track tension
|
Hydraulic
|
|
Track pitch
|
171mm
|
|
Track width
|
450mm
|
|
Number of track shoes (each side)
|
39
|
|
Track length on ground
|
2160mm
|
|
Ground clearance
|
368mm
|
|
Main Technical Specification
|
|
|
Operating weight(without ripper)
|
10000Kg
|
|
Ground pressure(without ripper)
|
0.054MPa
|
|
Grade ability
|
58%
|
|
Overall dimensions (L×W×H,without ripper)
|
4190×2935×2982mm
|
|
Max. tractive force
|
81KN
|
|
Working Equipment
|
|
|
Blade type
|
Straight
|
|
Width
|
2935mm
|
|
Height
|
960mm
|
|
Max. digging depth
|
350mm
|
|
Max. lift above ground
|
830mm
|
|
Tilting angle
|
8.5°
|
|
Blade capacity
|
3.5m3
|
|
Transmission System
|
|
|
Gear box
|
Mechanical
|
|
Bevel gear
|
One pair spiral bevel gear
|
|
Final drive
|
One pair columnar gear floating sealing
|
|
Gear shifts(Forward/Reverse)Travelling speed(km/h)
|
F4/R2
|
|
Forward/Reverse I
|
2.6~10.4
|
|
Forward/Reverse II
|
3.7~6.7
|
|
Service Capacities
|
|
|
Fuel tank
|
250L
|
|
Water tank
|
22L
|
|
Implement oil tank
|
30L
|
|
Steering clutch
|
Dry multi-plate, floating control
|
|
Steering brake
|
Mechanical pedal control
|
