Zephyrus is a new generation of industrial energy-saving fan products of Kale. It is equipped with a new PMSM motor platform, and its maximum diameter can reach 7.3 meters. Generating three-dimensional natural wind, so that you can quickly cool down in the hot summer sweat, and have a natural comfortable experience. The design inspiration comes from the natural phenomenon "volcanic lava".
And the products are extremely industrial beauty. Even a casual glance will leave you with a deep impression!
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KALE FANS
-
Voltage:
-
220V
-
Dimeter:
-
7.3m(24FT)
-
Max. speed:
-
56rpm
-
Weight:
-
106KG
-
Noise Level:
-
<40dBA
-
Product name:
-
HVLS fans
-
Blade material:
-
Aluminum Alloy
-
Color:
-
Custom Color
-
Usage:
-
Industrial+Hotel+Office+Outdoor
-
Power supply:
-
1300w
Quick Details
-
Mounting:
-
Ceiling Fan
-
Power:
-
1.3Kw
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KALE FANS
-
Voltage:
-
220V
-
Dimeter:
-
7.3m(24FT)
-
Max. speed:
-
56rpm
-
Weight:
-
106KG
-
Noise Level:
-
<40dBA
-
Product name:
-
HVLS fans
-
Blade material:
-
Aluminum Alloy
-
Color:
-
Custom Color
-
Usage:
-
Industrial+Hotel+Office+Outdoor
-
Power supply:
-
1300w
Product Description

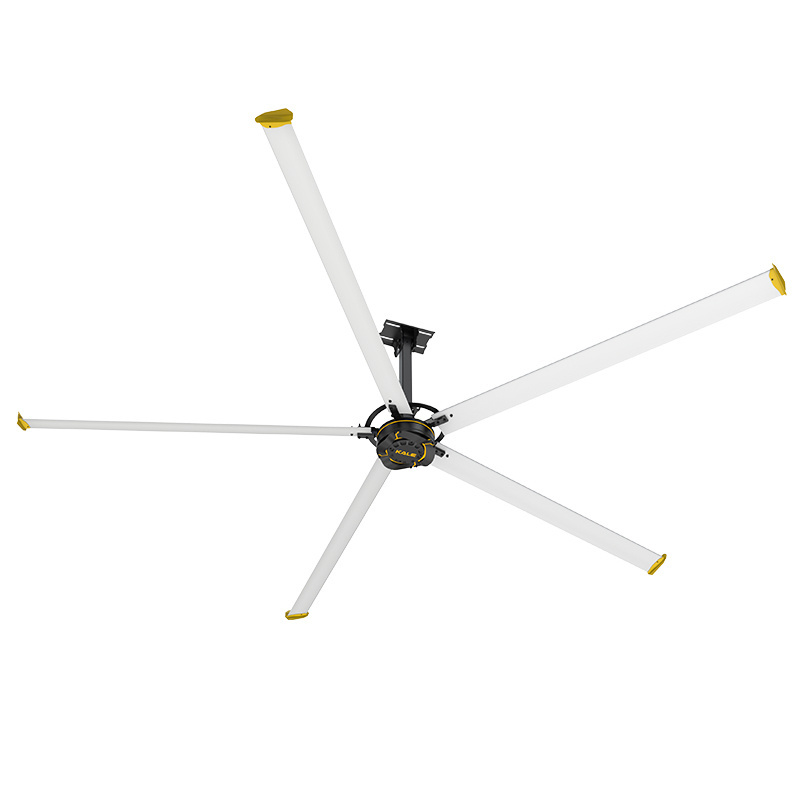

KALE FANS Zephyrus HVLS Ceiling Fan for Warehouses and Buildings
Specification
|
Model
|
Size
|
Air Volume
|
Power
|
Max Speed
|
Fan Weight
|
Full load current
|
|
HVLS-D3AAA73
|
24ft（7.3m）
|
13600 m³/min
|
1.3kW
|
56rpm
|
106kg
|
5.1A
|
|
HVLS-D3AAA61
|
20ft（6.1m）
|
12200 m³/min
|
1.2kW
|
64rpm
|
102kg
|
3.8A
|
|
HVLS-D3AAA55
|
18ft（5.5m）
|
12030 m³/min
|
0.7kW
|
72rpm
|
93kg
|
2.9A
|
|
HVLS-D3AAA49
|
16ft（4.9m）
|
11190 m³/min
|
0.6kW
|
80rpm
|
89kg
|
2.2A
|
PMSM Motor
AI Genetic Optimization Algorithm PMSM Permanent Magnet Synchronous Motor;
Unique internal rotor form in the industry;
Thinner motor;
Higher protection level, longer life, adapt to harsh working conditions;
New motor with optimized balance design
Ideal design, high protection grade maintenance free
Ideal design, high protection grade maintenance free
The motor structure of the new platform has a patented structure design, which enhances the industrial aesthetics and increases the product protection level, so that the fan can better cope with various harsh working conditions, thereby prolonging the product life of the whole motor.
Aviation Airfoil Fan Blade
Every customer who has experienced the Kale energy-saving fan will invariably admire: "The speed of the Kale fan is so low and the power is so small, how can it have such a large coverage area?" Such performance comes from the Kale Airfoil Blades™design, the Kale Zephyrus series fans are equipped with this fan blade. The aviation airfoil fan blade design is inspired by the aviation airfoil, with excellent aerodynamic performance, which can minimize wind resistance and convert electrical energy into kinetic
energy of air with the highest efficiency. The fan is equipped with aerofoil fan blades, which can form a 1-3 meters high wind layer on the ground, forming a super large coverage area beyond the fan diameter.
energy of air with the highest efficiency. The fan is equipped with aerofoil fan blades, which can form a 1-3 meters high wind layer on the ground, forming a super large coverage area beyond the fan diameter.
Eliminate hot & cold Stratification
Low-speed operation eliminates heat accumulation on the roof and can be used in multiple seasons
Low-speed operation eliminates heat accumulation on the roof and can be used in multiple seasons
Packing & Delivery
To better ensure the safety of your ventilation fan, professional, environmentally friendly, convenient and efficient packaging services will be provided. If the order is less than 100 units, the delivery time is 5-7 days.
