Quick Details
-
Brand Name:
-
BTF-LIGHTING
-
Model Number:
-
BTF-WS2815-1
-
CRI (Ra>):
-
85
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
18-20lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 80
-
Color Rendering Index(Ra):
-
85
-
Key Feature1:
-
WS2815 led strip
-
Key Feature2:
-
Programmable led strip
-
Key Feature3:
-
Dual Date Wire
-
IC position:
-
in-built
-
PCB Color:
-
white/black
-
Occasion:
-
Living Room
-
LEDs Number/M:
-
30/60/144
-
is customized:
-
yes
-
Lamp Power:
-
0.3w/led
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Control Mode:
-
Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BTF-LIGHTING
-
Model Number:
-
BTF-WS2815-1
-
CRI (Ra>):
-
85
-
Input Voltage(V):
-
DC12V
-
Lamp Luminous Flux(lm):
-
18-20lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 80
-
Color Rendering Index(Ra):
-
85
-
Key Feature1:
-
WS2815 led strip
-
Key Feature2:
-
Programmable led strip
-
Key Feature3:
-
Dual Date Wire
-
IC position:
-
in-built
-
PCB Color:
-
white/black
-
Occasion:
-
Living Room
-
LEDs Number/M:
-
30/60/144
-
is customized:
-
yes
-
Lamp Power:
-
0.3w/led

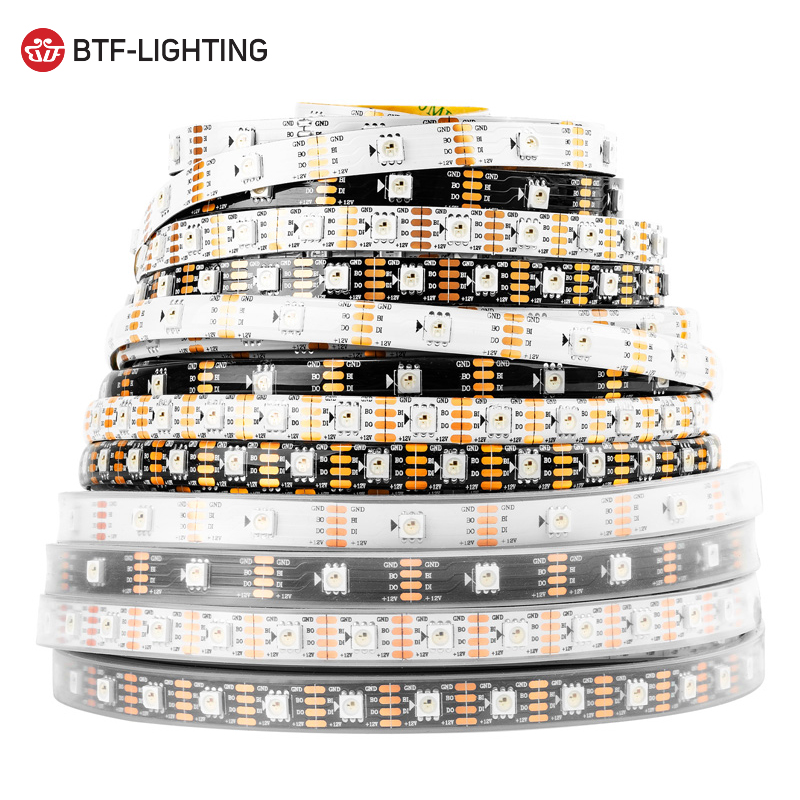

UL Certification WS2815 waterproof led smd 5050 rgb 12V addressable led strip
Wide compatibility:
Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.
12V WS2812B/WS2813 LED Strip:
WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.
Individually addressable:
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
Dual-signal wires:
WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.
Easy installation:
Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED can be cut off at cutting line.
There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other and wire up for power.
Specifications:
IC type :WS2815 IC
Gray level: 256
View angle: 120°
Input voltage: DC12V
Color: full color 24-bit
FPCB board color: White/Black
Power: 0.3W/LED 30/60/144 LEDs/m
Model: WS2815 strip 5050rgb chips
Storage Temperature:-30-+95 °C
Operating Temperature:-20 ~ +85°C
Led Qty: 30/60/144pcs RGB SMD 5050 per meter
The distance between two LEDs:30Leds/m -- 28mm, 60Leds/m -- 12mm, 144Leds/m -- 1.92mm
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
Waterproof level:
| IP30 | Non-waterproof |
| IP65 | Silicon Coating |
| IP67 | Silicone Tube (without adhesive) |
Package includes:
1 x 1M/5M RGB 30/60/144leds/m led strip
1 x 4pin connector
Note:
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.
