Factory Supply Thermofusion Welding Machine 200mm Hydraulic Butt Fusion Welding Machine Plastic Pipe Welding

Factory Supply Thermofusion Welding Machine 200mm Hydraulic Butt Fusion Welding Machine Plastic Pipe Welding

FOB Reference Price: Get Latest Price

≥1 Sets

US $900

≥3 Sets

US $895

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Input Voltage:: 220V

Dimensions:: 40-200mm

Use:: welding plastic, PE,PP&PVDF pipes and fittings

Power (kW):: 3.65kw

Weight (KG):: 135 KG

Welding range:: 40 50 63 75 90 110 125 140 160 180 200mm

Total Power:: 3.65KW

Work Voltage:: 220V 50/60HZ

Heating Plate Max. Temp.:: 270℃

Pressure Adjustable Ranges:: 0-6.3Mpa

Heating Plate Power:: 1.8KW

Planning Tool Power:: 1.1KW

Hydraulic Unit Power:: 0.75KW

Weight:: 135KG

Volume:: 0.53CBM

Quick Details

Warranty of core components:: 2 Year

Place of Origin:: Shandong, China

Brand Name:: POLYFUSION

Input Voltage:: 220V

Dimensions:: 40-200mm

Use:: welding plastic, PE,PP&PVDF pipes and fittings

Power (kW):: 3.65kw

Weight (KG):: 135 KG

Welding range:: 40 50 63 75 90 110 125 140 160 180 200mm

Total Power:: 3.65KW

Work Voltage:: 220V 50/60HZ

Heating Plate Max. Temp.:: 270℃

Pressure Adjustable Ranges:: 0-6.3Mpa

Heating Plate Power:: 1.8KW

Planning Tool Power:: 1.1KW

Hydraulic Unit Power:: 0.75KW

Weight:: 135KG

Volume:: 0.53CBM

Factory Supply Thermofusion Welding Machine 200mm Hydraulic Butt Fusion Welding Machine Plastic Pipe Welding

Product Overview

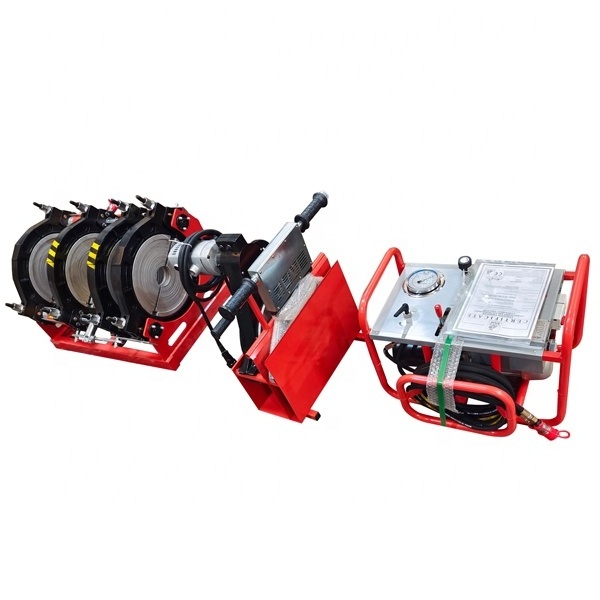

Hydraulic HDPE butt fusion welding machine

1) This machine is suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.

2) Be made of Aluminum material, easy to carry and transport.

3) Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.

FEATURES AT A GLANCE

1. Removable PTFE coated heating plate with separate temperature control system.

2. Electric planning tool with reversible double cutting edge blades.

3. Hydraulic unit provides welding machine with compressing power.

4. Be made of Aluminum material, easy to carry and transport.

5 . Low starting pressure ensures reliable welding quality of small pipes.

6. Temperature Controller and Timer, easy to know the time and temperature.

PRODUCT SPECIFICATIONS

Model		PF200
Welding Range	Power	40,50,63,75,90,110,125,140,160,180,200mm
Heater Working Temp	Bucket capacity	270°C
Temp Deviation in Surface	Operating weight	≤ ±5°C
Working Voltage	Max. tractive force	220V 50/60HZ
Heater Power	Max. breakout force	1.2KW
Trimer Power	Tipping load	0.8KW
Hydraulic Unit Power	Engine displacement	0.75KW
Total Power	Max. torque	2.75KW
Pressure Adjustable Ranges		0-6.3Mpa

Details Images

1. Tightening Screws: aluminum alloy, corrosion-resistant, belonging to consumables (give 2 for free)
2. High-pressure Tubing: high-quality material, oil-resistant and high-temperature resistant, anti-aging, soft and flexible,
weather resistant, not hard in winter, external sleeve has a telescopic spring to protect it
3. Hydraulic Cylinder: aluminum alloy material, anti-oxidation, anti-corrosion, can withstand high pressure, with warning signs, use safety
4. Clamp: 4 cm clamp, aluminum alloy material, anti-corrosion, long service life, stable fastening, precision grinding,
positioning pipe is accurate, easy to operate, clamps can be disassembled to handle different specifications of pipe fittings
5. Sealing Ring: durable, quality guaranteed, good sealing, fine polishing, smooth surface, no burrs, accurate size
6. Quick Connector: CE certification, using flat type, good sealing( Others use notched joints, easy to leak oil), insulating
material, use safety;
7. Pull Tab: thick, chrome-plated, no rust, improve stability

1. Temperature Controller,
2. Timer: quality assurance, CE certification, (Sole) brand.
3. Digital Voltmeter: high measurement accuracy, digital display
4. Reversing Valve,
5. Pressure Regulating Valve,
6. Pressure Relief Valve ,
7. Pressure Maintaining Valve are all CE certified, with high stability and long service life;
8. Pressure Gauge, sustainable pressure holding, sturdy and durable, good performance, pressure 0-16MPa, far exceeds the range
of others (0-10MPa);
9. Oil Circuit Module: the material is aluminum, corrosion resistant, good circulation, light weight and long service life
10. Aluminum Shell Pure & Copper Motor: internal pure copper coil, energy-saving and durable, good stability, the shell is made
of aluminum, impact resistant;
11. Power Switch：Using the high quality switch of Delixi brand, the workmanship and performance are good, and the product quality
meets European standards；
12. Data Logger: The hydraulic machine can be connected to the data logger. It is completely researched and manufactured in
Thailand and exported to all the world, which keeps our data logger have the highest quality and best service in the same
industry.

1. Rubber Handle: Made of high quality rubber material (others rubber handles are hard and easy to break)
2. Temperature Sensor: Wuxi Sole temperature sensor (others are thinner and more susceptible to damage);
3. Heating Element: Jiangsu Brand, long service life
4. Teflon Coating: imported Japanese Daikin Brand (Teflon)
5. Special Treatment Screws: anti-corrosion

6. Socket Connector: Brand: Hualun. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage)
7. Chrome-plated Radiator: chrome-plated, corrosion-resistant, not easy to rust

1. Blade: Carbon steel, strong and durable, double-edged edge, sharp blade, flattened pipe, and give a pair of blades for free
2. Trimmer Plate: The trimmer plate is made of aluminum, by die casting, the surface becomes smooth, durable and anti-corrosion.
3. Die Casting Handle: Through the overall die casting, the handle is integrated with the basic frame and is more sturdy.
4. Pure Copper Motor： pure copper material(others are made of aluminum, easy to be burnt ),the outer casing is made of aluminum, impact resistant.

1. Copper Core Cable : High quality copper core cable, low resistivity, good ductility and long service life;
2. Socket Connector : Brand: Hualun. High-quality material, insulation and flame retardant ,CE certification , can quickly connect the interface (others use the connector which internal plug is threaded , can not be quickly connected , and is easy to damage)
