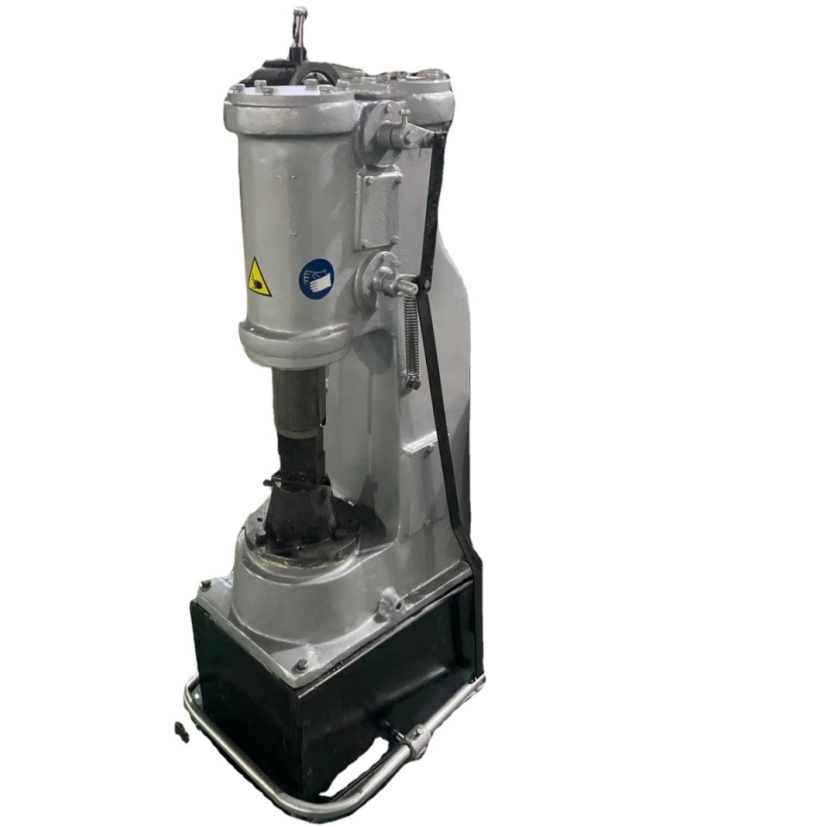

C41 25kg/40kg/65kg/75kg Pneumatic Forging Press Power Hammer Blacksmith Air Hammer For Forging Machine

C41 25kg/40kg/65kg/75kg Pneumatic Forging Press Power Hammer Blacksmith Air Hammer For Forging Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 110v/60hz

Power:: 2200

Dimension(L*W*H):: 1170*560*1480

Weight (KG):: 300

Name:: Blacksmith Power Hammer

Application:: Power Hammer Blacksmith

Function:: Heating Forging(dr 20-200mm)square/round/flat Steel Bar

Quick Details

Place of Origin:: Henan, China

Brand Name:: Fantai

Machine Type:: Pneumatic

Voltage:: 110v/60hz

Power:: 2200

Dimension(L*W*H):: 1170*560*1480

Weight (KG):: 300

Name:: Blacksmith Power Hammer

Application:: Power Hammer Blacksmith

Function:: Heating Forging(dr 20-200mm)square/round/flat Steel Bar

Product Description

Pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg, 16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 150kg,250kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.

Specification

Model	C41-20KG	C41-25KG	C41-40KG	C41-55KG
Weight of failling parts(KG)	20	25	40	55
Max.hit energy(KJ)	0.22	0.27	0.53	0.7
Height of working area(mm)	200	240	245	265
Hit number(min)	255	250	245	230
Dimension of top and bottom die surface(LxW mm)	90x50	100x50	120x50	120x55
Max. square steel can be forged(Diameter mm)	30x30	40x40	52x52	52x52
Max. round steel can be forged(Diameter mm)	35	45	68	68
Rate power(kw)	2.2	3/2.2	4	5.5
Speed of motor(r.p.m)	1440	1440	1440	1440
Total weight(kg)	380	560	880	1700
Overall dimensions(L x W x H mm)	820x460x1110	980x510x1200	1080x600x1430	1320x670x1620

DETAILS IMAGES

Dies of Air Hammer

Different shape for you choice.

If thier any dies you prefer, just share with us is ok.

Whole of Forging Hammer

The entire hammer body of the air hammer is moldedwith high-density tree seed sand.The high density canensure that the hammer body will not break and crack.

The internal hammer grindin g cylinder is used in the airhammer compression cylinder and the working cylinderto ensure that the internal clearance of the cylinderbody is finely matched and the working stability isstrong.

Oiler of Forging Hammer

Oiler: The iron double-tube self-priming oiler is used,and a manual oiling handle is installed，which canmanually lubricate the air hammer cylinder before themachine is used to prevent the lubricant from beingscarce and the cylinder is worn.

Rod of Forging Hammer

The working hammer rod is forged by 55 steel.Afterprocessing,the surface of the hammer rod isprocessed by a high-precision grinder. Finally,aspecial high hardness calendered steel ball is usedfor calendering to make the hammer rod hard....

Motor of Forging Hammer

As shown in the picture, this is the engine of the air hammer machine, so as to ensure the power of the normal operation of the machine

Why Choose Us

Packing & Delivery

To better ensure the safety of your air hammer machine , professional, environmentally friendly, convenient and efficient packaging services will be provided.
