Quick Details
-
Dimension (L*W*H):
-
590*410*155mm
-
Weight:
-
48kg
-
BMS:
-
Yes
-
Chargeable:
-
Yes
-
OEM/ODM:
-
Yes
-
Warranty:
-
5 years,over 10 years design lifespan
-
Application:
-
Home Appliances, Consumer Electronics, BOATS...
-
Certification:
-
CE
Quick Details
-

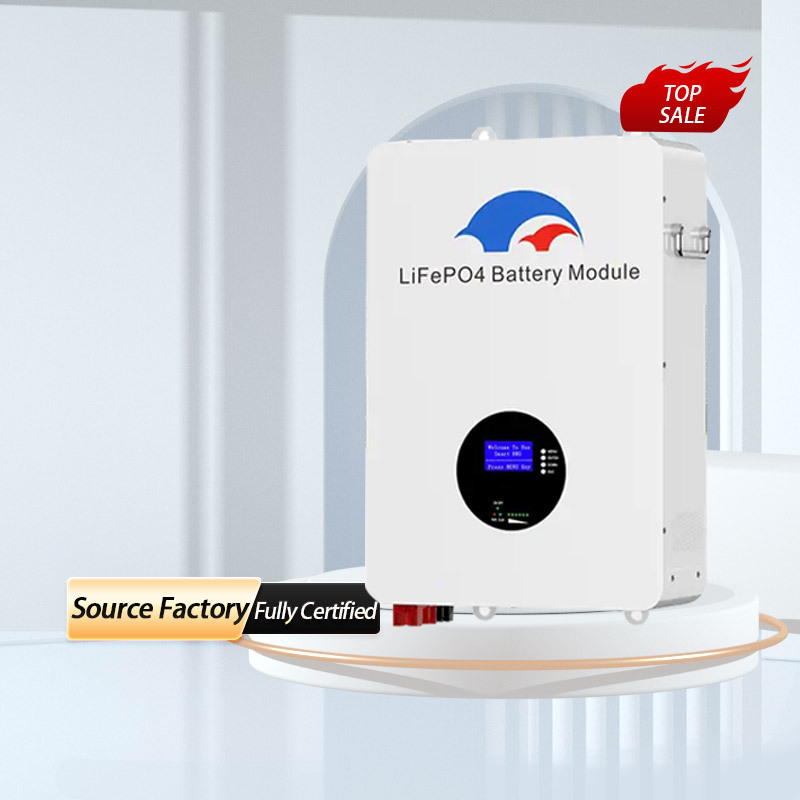

Model Number:
-
51.2v 100ah, YY48100HW-1
-
Brand Name:
-
daai, Yuyang
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
590*410*155mm
-
Weight:
-
48kg
-
BMS:
-
Yes
-
Chargeable:
-
Yes
-
OEM/ODM:
-
Yes
-
Warranty:
-
5 years,over 10 years design lifespan
-
Application:
-
Home Appliances, Consumer Electronics, BOATS...
-
Certification:
-
CE
|
Item
|
Product Parameter
|
|
|
|
|
|
|||||
|
Model
|
YY4850HW
|
YY4880HW
|
YY48100HW
|
YY48120HW
|
YY48150HW
|
YY48200HW
|
|||||
|
Rate voltage(Vdc)
|
51.2
|
51.2
|
51.2
|
51.2
|
51.2
|
51.2
|
|||||
|
Rate capacity(AH)
|
50
|
80
|
100
|
120
|
150
|
200
|
|||||
|
Energy storage(KWH)
|
2.56
|
4.096
|
5.12
|
6.144
|
7.68
|
10.24
|
|||||
|
Cycle life
|
≥6000 cycles to 85% DOD
|
|
|
|
|
|
|||||
|
Months self discharge
|
≤2%
|
|
|
|
|
|
|||||
|
Efficiency of charge
|
100% at 0.2C
|
|
|
|
|
|
|||||
|
Efficiency of discharge
|
96-99% at 1C
|
|
|
|
|
|
|||||
|
Charge voltage
|
58.4
|
|
|
|
|
|
|||||
|
Charge mode
|
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
|
|
|
|
|
|
|||||
|
Charge current(A)
|
10
|
16
|
20
|
24
|
30
|
40
|
|||||
|
Max. Charge current(A)
|
50
|
80
|
100
|
120
|
120
|
200
|
|||||
|
Charge cut-off voltage(VDC)
|
58.4
|
|
|
|
|
|
|||||
|
Contiunous current(A)
|
50
|
80
|
100
|
120
|
150
|
200
|
|||||
|
Discharge cut-off voltage(VDC)
|
44.8
|
|
|
|
|
|
|||||
|
Charge temperature
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
|
|
|
|
|||||
|
Discharge temperature
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
|
|
|
|
|||||
|
Storage temperature
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
|
|
|
|||||
|
IPclass
|
IP43
|
|
|
|
|
|
|||||
|
Material system
|
LiFePO4
|
|
|
|
|
|
|||||
|
Case materia
|
Metal
|
|
|
|
|
|
|||||
|
Case Type
|
Rack/Wall Mount
|
|
|
|
|
|
|||||
|
Pack Dimensions L*W*H(mm)
|
455*390*150
|
570*410*155
|
570*410*155
|
600*450*190
|
860*485*190
|
860*485*190
|
|||||
|
Package Dimension L*W*H(mm)
|
610*485*250
|
610*485*250
|
610*485*250
|
675*525*265
|
950*575*250
|
950*575*250
|
|||||
|
Net Weight(kg)
|
28.3
|
40.4
|
45
|
48.3
|
67.4
|
83.8
|
|||||
|
Gross Weight(kg)
|
31.2
|
42.7
|
48.2
|
52
|
70.1
|
86.4
|
|||||
|
Terminal
|
M8
|
|
|
|
|
|
|||||
|
Protocol(Optional)
|
CANBus/RS485/RS232
|
|
|
|
|
|
|||||
|
SOC (Optional)
|
LED/LCD
|
|
|
|
|
|
|||||
|
The quality assurance period
|
60 months
|
|
|
|
|
|
|||||
|
ITEM
|
|
VALUE
|
|
|
|||
|
Product name
|
|
YY48100HW-1
|
|
|
|||
|
Brand name
|
|
Yuyang
|
|
|
|||
|
Materials
|
|
Lithium iron phosphate
|
|
|
|||
|
Size(mm)
|
|
590*410*155
|
|
|
|||
|
Weight
|
|
48kg
|
|
|
|||
|
Nominal voltage
|
|
51.2v
|
|
|
|||
|
Nominal capacity
|
|
100Ah
|
|
|
|||
|
Color
|
|
optional
|
|
|
|||
|
Parallel support
|
|
Parallel terminals are supported
|
|
|
|||
|
Output port mode
|
|
terminal
|
|
|
|||
|
Charging way
|
|
CC/CP/VP
|
|
|
|||
|
Charging current
|
|
0.5C(standard）
|
|
|
|||
|
Maximum charging current
|
|
Max1C @25℃
|
|
|
|||
|
Discharge current
|
|
1C
|
|
|
|||
|
Maximum discharge current
|
|
Max1.2C @25℃
|
|
|
|||
|
Charging operating temperature
|
|
charging:0~+50℃
|
|
|
|||
|
Discharge operating temperature
|
|
discharge:-20~+55℃
|
|
|
|||
|
Warranty
|
|
5 years warranty,over 10 years design lifespan
|
|
|
|||
|
Application
|
|
hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office,
military, base station and other uninterrupted energy storage power supply. |
|
|
|||
Guangdong Yuyang New Energy Co., Ltd
. has been dedicated to R&D and manufacturing of lithium batteries and inverters more than 10 years, witha strong professional technical R&D team, as well as overseas subsidiariesand warehouses; We have 2 production bases located in Lingnan Town DongguanCity, with over 550 technical workers and an annual output value of over 300 million US dollars. We have 12 fully automatic production lines, with a daily production of over 3000 units and over 100 domestic and foreign ertificates and patents. We have experience inleading global brands OEM/ODM and provide a series of photovoltaicenergy storage system products and solutions.
Yuyang
lithium batteries use A grade top 10 cells,The production process strictly controls quality, and the products have passed a series of international authoritative certifications such as CE, UL, SGS, UN38.3, ROHS, MSDS, CNAS, etc. The main raw components such as BMS, BCU, BAMS produced are matched with high-end intelligent modules; Improve
production efficiency and save costs through automated production equipment; Yuyang is also a customs AEO certified enterprise, supported by the green channel of customs, making our product inspection and delivery faster and more efficient. Every year, we participate in exhibitions at home and abroad dozens of times, and our products are favored by customers, ranking among the top few in the African market,as well as occupying a place in Southeast Asia, Europe and America; Yuyuan has entered the white list of new energy enterprises in China; Guangdong TV conducted on-siteinterviews at the factory, and well-known brands in Guangdong Province are trustworthy partners for you.
