Quick Details
-
Application:
-
Cutting Fabric, leather, PU
-
Place of Origin:
-
Shandong
-
Brand Name:
-
FINEWORKCNC
-
Power:
-
11kw
-
Dimension(L*W*H):
-
3450*2200*1250mm
-
Weight:
-
1200 KG
-
Features:
-
Automatic
-
Keyword:
-
Cnc Vibration Knife Fabric Textile Cutting Machinery China
-
Software:
-
Trocen
-
Name:
-

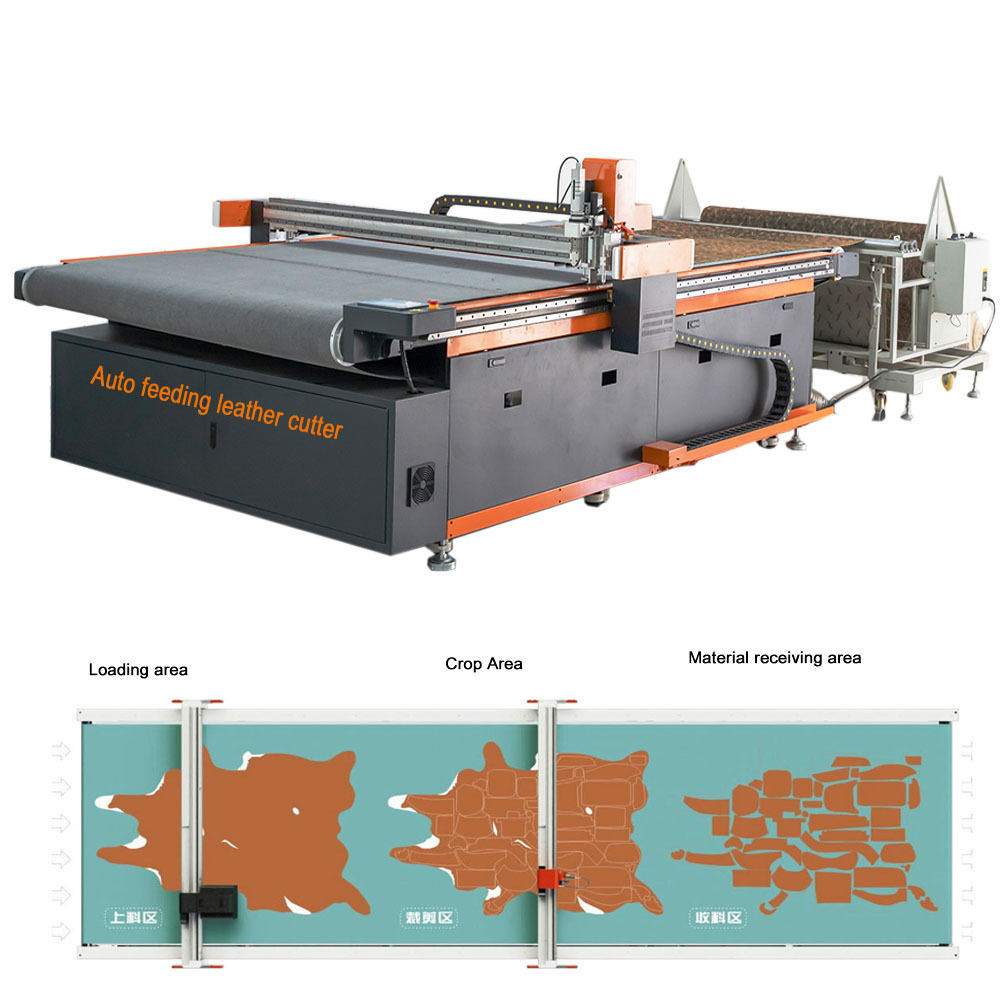

PVC/PU leather fabric automatic knife cutting machine
-
Material Capabilities:
-
Cutting Fabric, leather, PU
-
Color:
-
Customers' Request
-
Working size:
-
1600*2500mm
-
Graphic Format Supported:
-
DXF
-
Max Cutting Speed:
-
200-800mm/s
-
Cutting thickness:
-
≤22mm
-
Capacity:
-
2GB
Quick Details
-
Production Capacity:
-
100%
-
Voltage:
-
220V/380V
-
Marketing Type:
-
Hot product
-
Application:
-
Cutting Fabric, leather, PU
-
Place of Origin:
-
Shandong
-
Brand Name:
-
FINEWORKCNC
-
Power:
-
11kw
-
Dimension(L*W*H):
-
3450*2200*1250mm
-
Weight:
-
1200 KG
-
Features:
-
Automatic
-
Keyword:
-
Cnc Vibration Knife Fabric Textile Cutting Machinery China
-
Software:
-
Trocen
-
Name:
-
PVC/PU leather fabric automatic knife cutting machine
-
Material Capabilities:
-
Cutting Fabric, leather, PU
-
Color:
-
Customers' Request
-
Working size:
-
1600*2500mm
-
Graphic Format Supported:
-
DXF
-
Max Cutting Speed:
-
200-800mm/s
-
Cutting thickness:
-
≤22mm
-
Capacity:
-
2GB
Product Description
Feature of machine
Advantage 1.
Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and
stable working performance.
Advantage 2.
Whole machine is welded with thick square seamless steel structure and treated with high temperature,
ensures high accuracy, no deformation and super long service life
ensures high accuracy, no deformation and super long service life
Advantage 2.
The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
Advantage 3.
Digital cutting machine was designed easy to install, set-up and operate.
Advantage 4.
Being equipped with infrared sensor and emergency stop devices, guarantees safety.
Advantage 5.
Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine
Specification
|
Parameter/Model
|
FW1625
|
|
Working table size
|
1600*2500mm
|
|
Rated voltage
|
380V 3 phase , 220V 3 phase, 220V 1 phase
|
|
Table
|
vaccum working table, with auto conveyor table
|
|
Multi-functional Cutting Head
|
Replaceable oscillating knife
|
|
Safety
|
High sensitivity infrared induction (optional)
|
|
Moving Speed
|
Max. 1200mm/s
|
|
Cutting Speed
|
Max. 800mm/s(please set the speed according to the material)
|
|
Material Applicable
|
Corrugated paper, PVC expansion sheet, KT board, foam board,grey paperboard, cardboard, vehicle sticker, adhesive sticker etc.
|
|
Cutting Depth
|
Max 30mm (depends on the material)
|
|
Material Fixing Method
|
Strong power vacuum absorption and intelligence Partition
|
|
Resetting Positioning Accuracy
|
Max 0.01mm
|
|
Mechanical Precision
|
Max 0.02mm
|
|
Drive System
|
Steel Simultaneous Belt, Japna servo motor,HIWIN guide rail,synchronous belt, Taiwan ball screw
|
|
Control System
|
Kinco or Trocen control system
|
|
Operation Mode
|
Op worktable + data output control software (The op worktable has two type: connected and separated)
|
|
Display
|
English LCD
|
|
Command
|
HP-GL compatible format
|
|
Buffering Capacity
|
Standard--2GB
|
|
vaccum pump
|
9KW vaccum pump
|
|
Knife box
|
20 pieces for new customer
|
|
Body dimension
|
3391*2423*1235mm
|
Details Images
Accessories
1.Vacuum pump 9/11KW air cooling pump
2.
Automatic deviation correction feeding frame
3.
Pneumatic valve
Free test knives
Machine could install different type knives according to material
Samples made by machine
Packing & Delivery
Our Factory
Clients visist
Feedback
Service
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant. Lifetime maintenance free of charge.
3. Our staff can be sent to your company to install or adjust if necessary.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
