PLC touch screenLanguage:You can choose languages
For example:Chinese and English man-machineinterface realize various operationsand function display, makingoperation easier.
Function: You can set and changethe weight of the packaging materialand the length of the bag!
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
70-100 bag/min
-
Weight (KG):
-
410
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OSTAR
-
Dimension(L*W*H):
-
1350 * 1150 * 2260 mm
-
Product name:
-
Vertical Packing Machine
-
Feature:
-
Triangle bag packing machine
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
Triangle Bag
-
Material:
-
Stainless Steel 304/316
-
Bag length:
-
45 - 90mm
-
Bag width:
-
40 - 90mm
-
Suitable for packing:
-
tea,granule and so on
-
Packing material:
-
Nylon,Polyester net,non-woven fibries,corn fiber(Food grade).
-
Sealing type:
-
Three-dimensional sealing
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, Gluing, SLITTING, counting
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch, case
-
Packaging Material:
-
Plastic, Paper, Metal
-
Production Capacity:
-
70-100 bag/min
-
Weight (KG):
-
410
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OSTAR
-
Dimension(L*W*H):
-
1350 * 1150 * 2260 mm
-
Product name:
-
Vertical Packing Machine
-
Feature:
-
Triangle bag packing machine
-
Main Function:
-
Weighing Forming Filling Sealing
-
Bag type:
-
Triangle Bag
-
Material:
-
Stainless Steel 304/316
-
Bag length:
-
45 - 90mm
-
Bag width:
-
40 - 90mm
-
Suitable for packing:
-
tea,granule and so on
-
Packing material:
-
Nylon,Polyester net,non-woven fibries,corn fiber(Food grade).
-
Sealing type:
-
Three-dimensional sealing
Products Description
OS-KL040

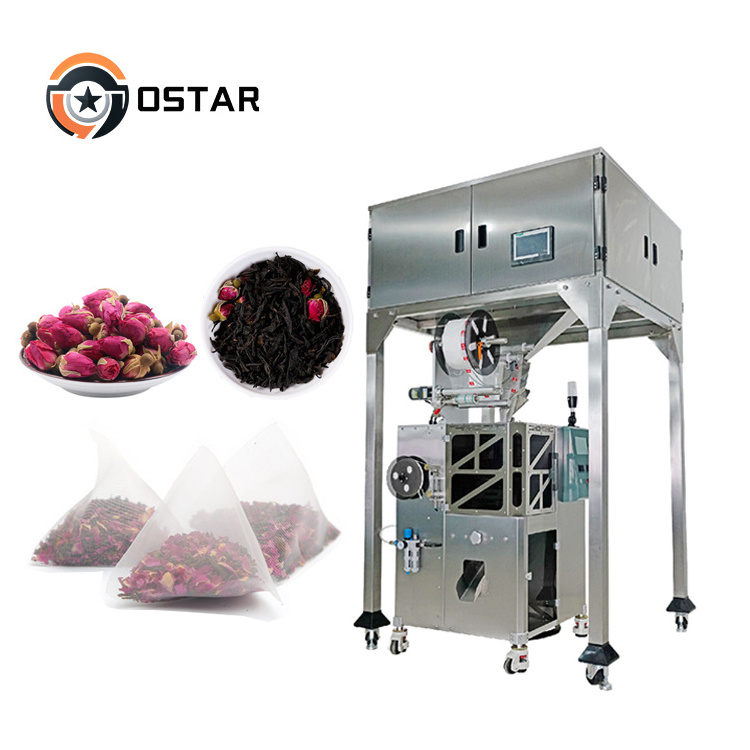

High-speed nylon triangle bag packing machine (electronic scale series)
Main Functions:
1.The machine is suitable for the green tea, black tea ,scented tea, coffee, Chinese tea ,healthtea, herbal tea, granule and so on.
2.The machineautomatically finish load, measuring, bagmaking, sealing, cutting ,counting ,finished canproduct conveyor, and other functions.
3. Adopt the imported ultrasonic sealing, use the electronic scale meteringtocutting-stock, perfect sealing, cutting-stock accuracy.
4.
Packing Material: Nylon,Polyester net,non-woven fibries,corn fiber(Food grade).
|
Technical Parameters
|
|
|
|
MODEL
|
OS-KL040
|
|
|
MEASURING SCOPE
|
1~10 G
|
|
|
PACKING SPEED
|
70~100 BAGS/MIN
|
|
|
BAG WIDTH
|
45~90 MM
|
|
|
BAG LENGTH
|
45~90 MM
|
|
|
DIMENSION ( L * W * H )
|
1350 * 1150 * 2260 MM
|
|
|
POWER
|
AC 220V / 50-60HZ / 2.0 KW
|
|
|
GAS SOURCE
|
≥0.6MPA
|
|
|
MACHINE WEIGHT
|
260~410 KG
|
|
Application
Machine Display
Smart screen
Electric eye
*High sensitive optical lextric color mark tracking system and digital input cutting position,which makes the sealing and cutting
more accurate.
more accurate.
Bag maker
*The bag making machine is made of 304 stainless steel and driven by a servo.
*The packaging film ispulled into the bag making machine by friction.
*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various widths.
Cutting & sealing parts
High speed of fine and clean cutting and sealing bags.
*Positioned stop function avoides sticking blades and wasting materials.
* Sealing method ： Three-dimensional sealing.
*Positioned stop function avoides sticking blades and wasting materials.
* Sealing method ： Three-dimensional sealing.
