Quick Details
-
Dimension(L*W*H):
-
800*800*2000mm
-
Weight:
-
250kg,
-
After-sales Service Provided:
-
Video technical support, Online support
-
Name:
-
used water well drilling rig for sale in india
-
Color:
-
Customer Required
-
Advantage:
-
easy cleaning air /water holes
-
Application:
-
Multifunction
-
Feature:
-
High Drilling Efficiency
-
Engine:
-
Electric Engine/Diesel Power
-
Drilling Machine Quality:
-
Tested before leaving factory
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
800*800*2000mm
-
Weight:
-
250kg,
-
After-sales Service Provided:
-
Video technical support, Online support
-
Name:
-
used water well drilling rig for sale in india
-
Color:
-
Customer Required
-
Advantage:
-
easy cleaning air /water holes
-
Application:
-
Multifunction
-
Feature:
-
High Drilling Efficiency
-
Engine:
-
Electric Engine/Diesel Power
-
Drilling Machine Quality:
-
Tested before leaving factory
-
Certification:
-
ISO9001

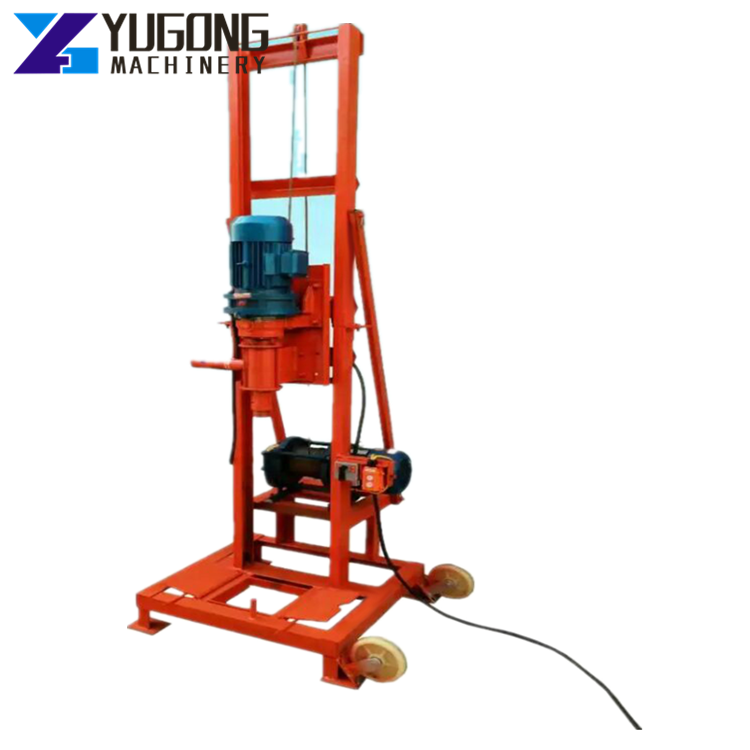

Top Drive Head Portable Artesian Water Well Drilling Machine for Sale
Information
1.Small drilling machine is widely used in family drilling wells, drilling wells, take domestic water, farm irrigation wells, water and air conditioning installation, solar water heaters, site piling.
2.Mainly used to hit the earth, limestone and other soft rocks,Hard rock is not recommended.
Features
1.Drilling speed, soil one hour can drill 30-40 meters;
2.Rig models smaller, easy to move;
3.The price is more affordable.
Technical Parameters
|
Model |
YG-S120 |
YG-S180 |
YG-S240 |
YG-S350 |
YG-S500 |
YG-S220 |
YG-S380 |
|
Drill depth(m) |
80 |
80 |
100 |
100 |
120 |
100 |
120 |
|
Drill dia.(mm) |
80-120 |
80-200 |
80-220 |
80-350 |
80-500 |
80-220 |
80-280 |
|
Drill pipe |
F42,1.5m |
F42,1.5m |
F51,1.5m |
F51,1.5m |
F65,1.5m |
F51,1.5m |
F51,1.5m |
|
Engine |
220V |
220V |
220V |
380V |
380V |
Gasoline/Diesel |
Gasoline/Diesel |
|
Power(Kw) |
1.25-1.5 |
1.5-2 |
4 |
3 |
5.5 |
15hp |
8hp |
|
Water pump(Kw) |
2.2 |
2.2 |
2.2 |
2.2 |
5.5 |
7.5hp |
3.5hp |
|
Dimension(m) |
0.7*0.7*2.9 |
0.7*0.7*2.5 |
0.7*0.7*2.5 |
0.8*0.8*2.7 |
1*1.5*2 |
0.8*0.8*2.7 |
0.8*0.8*2.7 |
|
Weight(Kg) |
120 |
120 |
150 |
250 |
600 |
250 |
200 |
Advantage of water well drilling rig
1. Light weight, energy saving.
2. ed product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.
Henan Yugong Machinery Co.,Ltd located in Zhengzhou,Henan province,China.Its a large engineering machinery manufacturing enterprise which focus on research and development, production and sale kinds of drilling rigs.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on.
We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard. Sincerely hope we can establish close,trustworthy and long term relationship with each customers. Any interests and needs about our Drilling rigs,please contact us.
Payment Terms:
1) T/T 30% deposit in advance, T/T 70% before shipment.
2) L/C at sight ( high cost, not very advise).
3) Escrow or make payment online.
Q:What is the MOQ?
R:MOQ is 1 set,we allow OEM and sample order,but the cost are paid by your side.
Q: Where is your factory located? How can I visit there?
R: Our factory is located in Zhengzhou City, Henan Province, China.Contact us ahead before you go visit,then we can fully arrange the schedule and meet you.Welcome to visit us!
Q: What is the warranty time of your products?
R: The warranty time is 12 months from the date of the commissioning.After the warranty, any questions and needs,please contact us.
