Quick Details
-
Dimensions (L x W x H) (mm):
-
6800*2500*3200, 6800*2500*3200
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CSC
-
Product name:
-
HOWO High Altitude Operation Truck, Cherry picker truck
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Hydraulic system:
-
Chinese Famous Brand, imported brand
-
Driving type:
-
Left hand drive/ Right hand drive
-
Description:
-
JMC High-Altitude Operation Truck
-
Name:
-
Aerial Lift Bucket Trucks
-
Max working height:
-
14m 16m 18m 20m 22meters, etc
-
Truck type:
-
Dongfeng 22m Platform Lift Truck
-
Color:
-
Customer's Requirement
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Dimensions (L x W x H) (mm):
-
6800*2500*3200, 6800*2500*3200
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CSC
-
Product name:
-
HOWO High Altitude Operation Truck, Cherry picker truck
-
Chassis brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Hydraulic system:
-
Chinese Famous Brand, imported brand
-
Driving type:
-
Left hand drive/ Right hand drive
-
Description:
-
JMC High-Altitude Operation Truck
-
Name:
-
Aerial Lift Bucket Trucks
-
Max working height:
-
14m 16m 18m 20m 22meters, etc
-
Truck type:
-
Dongfeng 22m Platform Lift Truck
-
Color:
-
Customer's Requirement

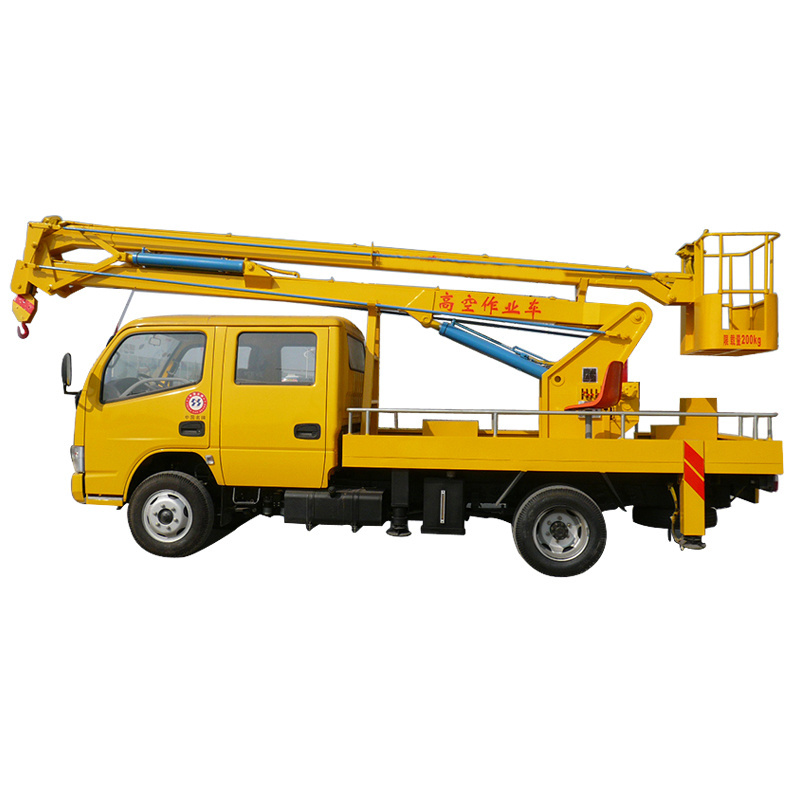

Dongfeng 18m - 22m truck mounted aerial work platform 4X2 hydraulic high lifting platform truck
Aerial work truck, also known as aerial device, elevating work platform, bucket truck, mobile elevating work platform, aerial lift, high altitude operation truck, cherry picker or scissor lift.
It refers to a special vehicle which work at high altitude (more than three meters), use a hydraulic or electric system multivessel hydraulic cylinders, can do up and down lifting operations, transport staff and equipment to the site, conduct high altitude operations, it is a modern advanced mechanical species equipment.
Aerial work truck is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
Technical parameter for Aerial Working Truck
|
MAIN DESCRIPTION |
|
|
Overall Dimensions |
8350× 2200 × 3300 mm |
|
Tare Weight |
7640 kg |
|
Front Overhang |
1130/1810 mm |
|
Wheelbase |
3800 mm |
|
CHASSIS |
|
|
Chassis Brand |
Dongfeng |
|
Cab |
left hand drive, 2 seats |
|
Engine |
Chaochai brand,YC4102-C3B, 136hp |
|
Gear Box |
5 forward & 1 reverse |
|
Axles number |
2 |
|
T ires |
7.50-16, 6 pieces + 1 spare |
|
Parameters for high altitude operation platform |
|
|
Max working height |
18m |
|
Max working radius |
7.9m |
|
Max working radium while in the max working height |
≥3.1m |
|
Max working height while in the max working radius |
≥10.2m |
|
Max loading weight of the basket in the top |
200kg |
|
Landing gear |
Type: H shape Quantity : 4 pieces Max outrigger transversal span :3755 mm Max Longitudinal span: 3750 mm |
|
Lifting hook |
Lifting weight: ≤1000kg, safe weight: 800kg Max lifting height: 7.7m |
|
Operation system |
Rotary platform and lifting basket can operate; Operate type: manual or hydraulic |
|
Lifting arm |
3 joints folding arm |
|
slewer device |
360 degree continuous turning |
|
Walking floor |
diamond plate |
