Quick Details
-
Output Power:
-
7KW/11KW/22kW
-
Input Voltage:
-
220V/380v
-
Product name:
-

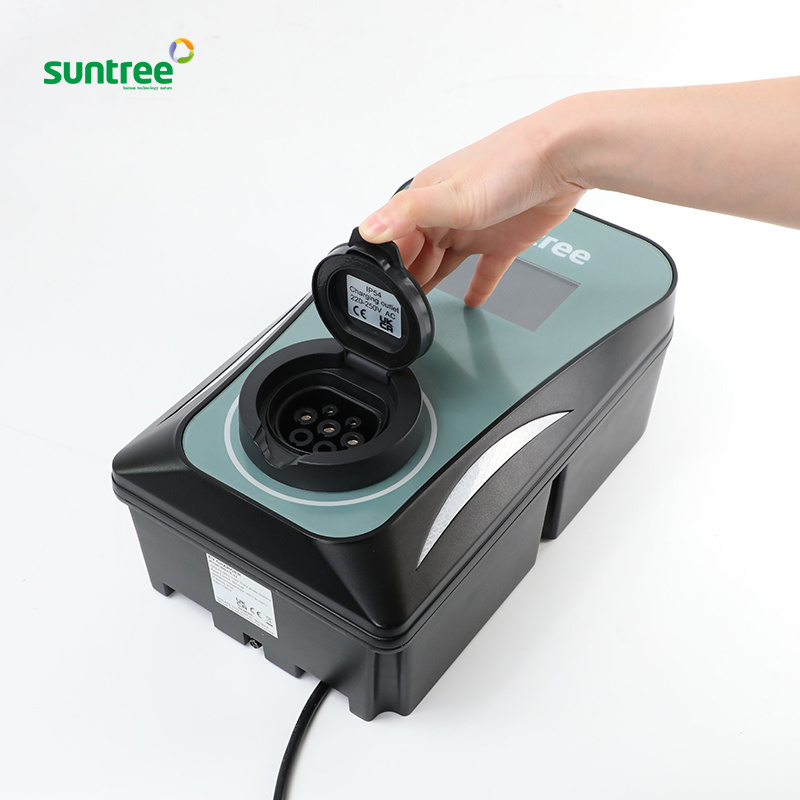

EV Charging Station (WallBox)
-
Input voltage:
-
AC220-240V / AC380-415V
-
Rated current:
-
6~16A/6~32A
-
Application:
-
AC Home Commercial EV Charging
-
Rated power:
-
7KW/11KW/22KW
-
Protection design:
-
surge, overcurrent, overvoltage, leakage, short circuit protection
-
Use environment:
-
indoor / outdoor
-
Certificate:
-
CE UKCA ISO IEC 62196
-
interface Protection:
-
IP55
-
Color:
-
Blue
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SWJ7E-11
-
Brand Name:
-
suntree
-
Output Power:
-
7KW/11KW/22kW
-
Input Voltage:
-
220V/380v
-
Product name:
-
EV Charging Station (WallBox)
-
Input voltage:
-
AC220-240V / AC380-415V
-
Rated current:
-
6~16A/6~32A
-
Application:
-
AC Home Commercial EV Charging
-
Rated power:
-
7KW/11KW/22KW
-
Protection design:
-
surge, overcurrent, overvoltage, leakage, short circuit protection
-
Use environment:
-
indoor / outdoor
-
Certificate:
-
CE UKCA ISO IEC 62196
-
interface Protection:
-
IP55
-
Color:
-
Blue
Product Description
Specification
|
Model
|
SWJ7E-7
|
SWJ7E-22
|
SWJ7E-11
|
||
|
Power Supply
|
1P+N+PE
|
3P+N+PE
|
3P+N+PE
|
||
|
Rated Voltage
|
AC220~240V
50/60Hz
|
AC380~415V
50/60Hz
|
AC380~415V
50/60Hz
|
||
|
Rated Current
|
Max 32A
(6-32A adjustable)
|
|
Max 16A
(6-16A adjustable)
|
||
|
Output Voltage
|
AC220~240V
50/60Hz
|
AC380~415V
50/60Hz
|
AC380~415V
50/60Hz
|
||
|
Maximum Current
|
Max 32A
(6-32A adjustable)
|
|
Max 16A
(6-16A adjustable)
|
||
|
Rated Power
|
7.4KW
|
22KW
|
11KW
|
||
|
Charger Socked
or Connector
|
Type 2
|
|
|
||
|
Material
|
ABS+PC Flammability Rating V-0
|
|
|
||
|
Colour
|
Black+Gray
|
|
|
||
|
Indicator light
|
Three Colour LED
|
|
|
||
|
Ingress Protector
|
IP54
|
|
Enclosure : IP65
Connector : IP54
|
||
|
PCB protecrion
|
Over current protection
The max 32A - Recommended 36A
|
|
|
||
|
|
Residual current protection
(AC Type A30mA , DC6mA)
|
|
|
||
|
|
Earth check
|
|
|
||
|
|
Over/Under voltage protection
|
|
|
||
|
|
Over temperature
|
|
|
||
|
|
PEN fault proetection
|
|
|
||
|
Certification
|
CE,UKCA
|
|
|
||
|
Certification Standard
|
EN 61851, EN62196
|
|
|
||
|
Standby power consumption
|
<10W
|
|
|
||
|
Installation
|
Wall mounted
|
|
|
||
|
Temperature
|
-25℃~50℃
|
|
|
||
|
Humidity
|
3％~95％
|
|
|
||
|
Altitude
|
<2000m
|
|
|
||
* Universal charging socket or Type 2 tethered lead
* Power rating — Up to 7.4kW or 22kW models
* Adjustable power rating — 10A, 13A, 16A, 32A
* Scheduled / off—peak charging
* Solar compatible (single phase models only)
* OCPP 1.6 compliant
*
Built—in LED charging status indicator
* Wi—Fi / Ethernet connectivity
* IP54 & IK08 rated
* Corrosion and fire resistant
* CE and UKCA certified
* Easy to install and maintain
* Wall or post mounting options
* PEN fault and residual current protection (AC 30mA Type A, DC 6mA)
+ UK Smart Charge Point Regulations Compliant including tamper security
* Dynamic load balancing (CT clamp(s) & cable(s) included)
Product packaging
FAQ
Q:How long time to make a sample?
A:3-7 days if we make a new sample for you.If you just select our existing sample, we can send you sample the next day.
Q:How long is the lead time？
A: The lead time is 7-30 days, it depends on the quantity and production scheduling.
Q: How many kinds of payment?
A: We have T/T and L/C etc.If you need the detailed terms of payment, pls contact us.
Our Service
1. We will reply you for your inquiry in 24 hours.
2. T/T and L/C etc payment terms all accepted.
3. Shipment:By air,By sea,By International express (DHL,Fedex,).
4. Provide operating guide (instruction).
5. Customized design,sample and packing according to clients requirements.
