Quick Details
-
Aluminum ingots diameter:
-
90mm
-
The inner diameter of container:
-
95mm
-
Length of aluminum ingots:
-
200~550mm
-
Length of container:
-
550mm
-
Output port size:
-
140*160mm
-
Extrusion power:
-
645T
-
Height of main engine center:
-
950mm
-
Main cylinder plunger diameter:
-
600mm
-
Rated system pressure:
-
21MPa
-
Electric power:
-
380V
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOBO
-
Weight (KG):
-
1000
-
Aluminum ingots diameter:
-
90mm
-
The inner diameter of container:
-
95mm
-
Length of aluminum ingots:
-
200~550mm
-
Length of container:
-
550mm
-
Output port size:
-
140*160mm
-
Extrusion power:
-
645T
-
Height of main engine center:
-
950mm
-
Main cylinder plunger diameter:
-
600mm
-
Rated system pressure:
-
21MPa
-
Electric power:
-
380V
Summary

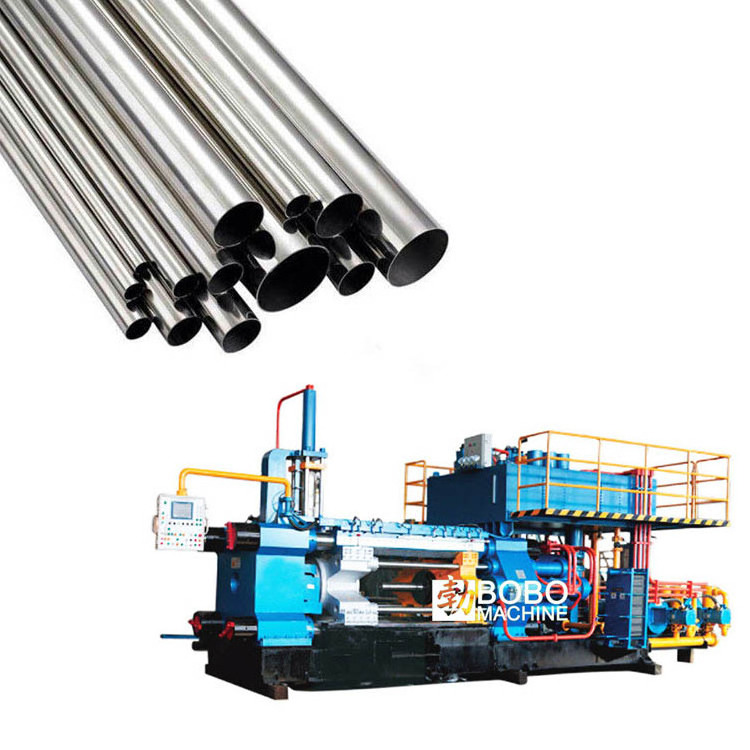

The aluminum extruder is the main machine, which is the power device for extruding the
profile.
* user to provide working medium: anti-wear hydraulic oil N68, about 2500Lone time.
* Power facilities provided by > users: 380V±10%; 50HZ 90KW
* cooling water source: cooling water quality: pH 6-8
Cooling water temperature: ≤30℃.
Circulating water flow: ≥10m3/ hour.
Circulating water pressure: 0.2-0.3MPa
profile.
* user to provide working medium: anti-wear hydraulic oil N68, about 2500Lone time.
* Power facilities provided by > users: 380V±10%; 50HZ 90KW
* cooling water source: cooling water quality: pH 6-8
Cooling water temperature: ≤30℃.
Circulating water flow: ≥10m3/ hour.
Circulating water pressure: 0.2-0.3MPa
|
Aluminum ingots diameter
|
Φ90mm
|
|
Length of aluminum ingots
|
200～550mm
|
|
The inner diameter of container
|
Φ95mm
|
|
Length of container
|
550mm
|
|
Output port size
|
Φ140×160mm
|
|
Electric power
|
380V±10%;50HZ 90KW
|
|
Height of main engine center
|
950mm
|
|
Extrusion power
|
645T
|
|
Rated system pressure
|
21MPa
|
|
Conventional aluminum bar specifications
|
φ90mm×（200-550）mm
|
|
Machine dimensions
|
7m×3.2m×2.8m
|
|
Main cylinder plunger diameter
|
φ600mm
|
|
Main cylinder extrusion pressure
|
590t
|
|
Side cylinder diameter
|
φ125mm/φ90mm
|
|
Side cylinder extrusion pressure
|
50t
|
|
Lock force of extrusion cylinder
|
103t
|
|
Shear mechanism diameter of oil cylinder
|
Φ125mm / Φ90mm
|
|
Shear force (working pressure 14MPa)
|
17T
|
|
The extrusion speed
|
0.2-8.6mm/s(adjustable) constant rate extrusion
|
|
Fast forward speed
|
295mm/s
|
|
Fast speed back
|
208mm/s
|
|
Opening speed of extrusion barrel
|
175mm/s
|
|
Closing speed of extrusion cylinder
|
152mm/s
|
|
Scissor descent rate
|
400mm/s
|
|
Scissor rising speed
|
500mm/s
|
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other
payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
