Quick Details
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-65-8TP, KP-9000-65-8GP
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
RJ45 8 Ports Industrial Ethernet Switch
-
Poe protocal:
-
802.3af & 802.3at
-
Operating temperature:
-
-40℃~+75℃
-
MDX/MIDX:
-
support
-
Jumbo Frame:
-
support 10K bytes
-
Watchdog:
-
support
-
Installation Method:
-
din rail mounted
-
Certification:
-
CE,ROHS,FCC
-
Warranty:
-
5 Years
-
DIP switches:
-
Support
Quick Details
-
Transmission Rate:
-
10/100Mbps; 10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.8G, 26G
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-65-8TP, KP-9000-65-8GP
-
Place of Origin:
-
Guangdong, China
-
Device Type:
-
RJ45 8 Ports Industrial Ethernet Switch
-
Poe protocal:
-
802.3af & 802.3at
-
Operating temperature:
-
-40℃~+75℃
-
MDX/MIDX:
-
support
-
Jumbo Frame:
-
support 10K bytes
-
Watchdog:
-
support
-
Installation Method:
-
din rail mounted
-
Certification:
-
CE,ROHS,FCC
-
Warranty:
-
5 Years
-
DIP switches:
-
Support

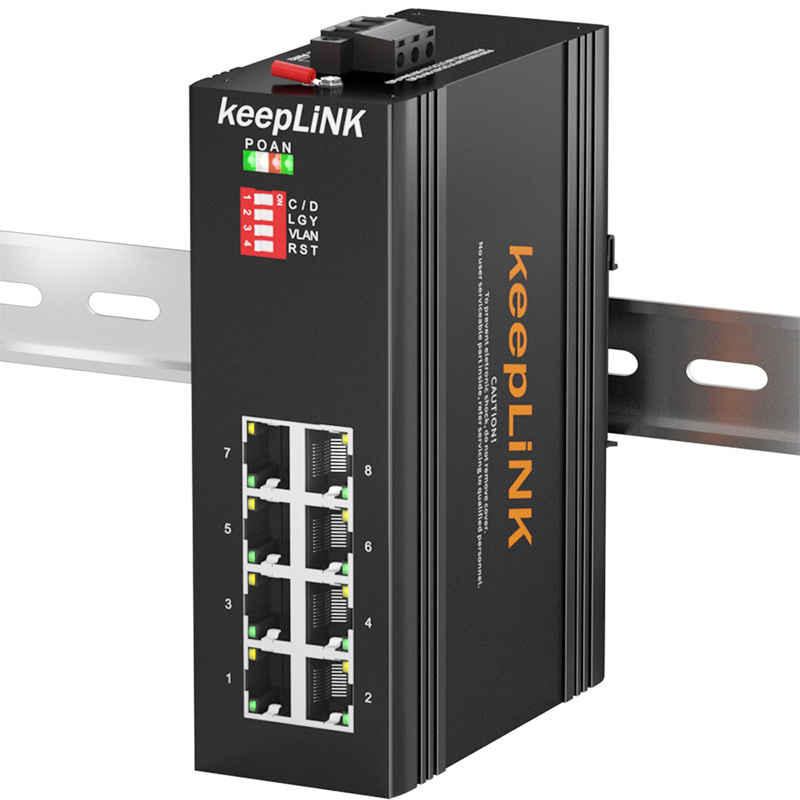

8 ports industrial ethernet switch IP40 din rail outdoor unmanaged gigabit ethernet switch 8 port poe
Leading
manufacturer of
industrial ethernet switches...
Smart POE IOT box,
Fusion splicer,PoE splitter,Fiber optical transceiver,
Fiber patch cable,
Media Converter
...
WE ARE AIM
TO BE YOUR BEST INDUSTRIAL NETWORKS SOLUTION PROVIDER
IN CHINA !
Product Description
Industrial 4kv surge protection
MTBF: 100,000 hours,
8KV-15KV
Anti-static,
CCC/CE/FCC/RoHS.
Din-Rail Design.
Durable Metal Body,
Fanless quiet,
IP40 protection level,
Din-Rail design to save room.
Widely Use.
-30
℃ ~ +75℃ widely use,
Dual power protect,
Input voltage:
DC 12-48V without POE,DC 12-58V with POE.
Keeplink Industrial Ethernet Switch.
Why buy our devices ?
1,
8KV-15KV Anti-static
lightning protection makes it safe，
2,
Dual power protect data loss avoid troubles，
3,
Fanless heat dissipation circuit design make its quiet，
4, -40
℃
~ +75℃ wide range of working environment temperature
（
Excellent high/low temperature resistance）,
5,
The industrial-grade quality enhances the reliability and security of industrial networks,
6,
CCC/CE/FCC/RoHS Certificate.
7, Two years warranty lifetime technology maintain.
Meet the deployment requirements in
rail transit, safe city, intelligent transportation,
outdoor surveillance and other harsh environments..
.
|
Models
|
Ports Number
|
Ethernet Switch Speed
|
POE Function
|
Product Size
|
||||
|
KP-9000-45-5TX
|
5 ri45 ports
|
10/100mbps
|
/
|
31mm*118mm*91mm
|
||||
|
KP-9000-45-5TP
|
5 ri45 ports
|
10/100mbps
|
Yes
|
31mm*118mm*91mm
|
||||
|
KP9000-45-5GT
|
5 ri45 ports
|
10/100/1000 mbps
|
/
|
31mm*118mm*91mm
|
||||
|
KP-9000-45-5GP
|
5 ri45 ports
|
10/100/1000 mbps
|
Yes
|
31mm*118mm*91mm
|
||||
|
KP-9000-65-5TX
|
5 ri45 ports
|
10/100mbps
|
/
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-5TP
|
5 ri45 ports
|
10/100mbps
|
Yes
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-5GT
|
5 ri45 ports
|
10/100/1000 mbps
|
/
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-5GP
|
5 ri45 ports
|
10/100/1000 mbps
|
Yes
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-8TX
|
8 ri45 ports
|
10/100mbps
|
/
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-8TP
|
8 ri45 ports
|
10/100mbps
|
Yes
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-8GT
|
8 ri45 ports
|
10/100/1000 mbps
|
/
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-8GP
|
8 ri45 ports
|
10/100/1000 mbps
|
Yes
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-16TX
|
16 ri45 ports
|
10/100mbps
|
/
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-16TP
|
16 ri45 ports
|
10/100mbps
|
Yes
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-16GT
|
16 ri45 ports
|
10/100/1000 mbps
|
/
|
48mm*143mm*104mm
|
||||
|
KP-9000-65-16GP
|
16 ri45 ports
|
10/100/1000 mbps
|
Yes
|
48mm*143mm*104mm
|
||||
|
These are just a small part,
we produce
fiber ports or combined ports also , contact us...
|
|
|
|
|
||||
|
|
|
|
|
|
||||
