Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HEXAD GLASS
-
Model Number:
-
Customized
-
Product name:
-
Hexad AR Laminated Glass
-
Size:
-
Custom size
-
Color:
-
Clear
-
PVB color:
-
Clear
-
PVB Thickness:
-
0.76mm, 1.14mm, 1.52mm etc.
-
Payment Terms:
-
T/T, L/C
-
Delivery time:
-
2-3 weeks
-
Packing:
-
Sea worthy wooden crates with interlayer paper or powder
-
Certificate:
-
ISO 9001, CE
Quick Details
-
Application:
-
Courtyard, Supermarket, Farmhouse, School, Exterior, Warehouse, Home Office, Staircase, Outdoor, Living Room, Park, Wine Cellar, Office Building, Storage & Closet, Mall, Entry, Apartment, Sports Venues, Basement, Hospital, Villa, Home Bar, Hall, Garage & Shed
-
Usage:
-
Industrial, Medical, Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Bulletproof, Display screen, Instrument
-
Thickness:
-
6mm-32mm, 6.76mm, 7.14mm, 7.52mm, 13.14mm etc.
-
Place of Origin:
-
China
-
Brand Name:
-
HEXAD GLASS
-
Model Number:
-
Customized
-
Product name:
-
Hexad AR Laminated Glass
-
Size:
-
Custom size
-
Color:
-
Clear
-
PVB color:
-
Clear
-
PVB Thickness:
-
0.76mm, 1.14mm, 1.52mm etc.
-
Payment Terms:
-
T/T, L/C
-
Delivery time:
-
2-3 weeks
-
Packing:
-
Sea worthy wooden crates with interlayer paper or powder
-
Certificate:
-
ISO 9001, CE
Products Description
|
Product Name
|
AR Laminated Glass
|
|
Glass Thickness
|
6.76mm, 7.14mm, 7.52mm, 13.14mm, 16.52mm, etc.
|
|
Glass Diameter Size
|
According customer's need
|
|
Light transparent
|
>95% on average
|
|
Packing
|
Sea worthy wooden crate with interlayer paper or powder
|
|
Delivery Time
|
It depends the quantity, normally 15-45days
|
|
Application
|
Museum display cabinets glass, display windows glass, TV LCD display cover glass, led lighting cover glass, electronic appliance glass and so on
|
Laminated glass is a kind of safety glass made by using a PVB film between two or more pieces of glass, which is compounded into a whole through high temperature and high pressure within a certain period of time. It is made through different combinations and has good impact resistance, shock resistance, noise resistance, and UV resistance.
Anti-Reflection Glass is also called AR Glass. It applies special treatment to the surface of the glass to increase its transparency. The principle is to use the interference effect generated by different optical material film layers to eliminate incident and reflected light, thereby improving the transmission rate.
There are two methods available: single or double side anti reflective coating. About 1 side anti reflective coating, the highest lighting transparency can reach 95%. About 2 sides anti reflective coating, the highest lighting transparency can reach 98%.
Characteristics of AR Laminated Glass
Selection of PVB film thickness
|
Glass type
|
Substrate thickness
|
PVB film thickness
|
|
|
|
|
|
Short edge ≤ 800 mm
|
Short edge ＞ 800 mm
|
|
|
Ordinary laminated glass
|
6mm
|
0.38mm
|
0.38mm
|
|
|
|
8mm
|
0.38mm
|
0.76mm
|
|
|
|
10mm
|
0.76mm
|
0.76mm
|
|
|
|
12mm
|
1.14mm
|
1.14mm
|
|
|
|
15、19mm
|
1.52mm
|
1.52mm
|
|
|
Glass type
|
Substrate thickness
|
PVB film thickness
|
|
|
||
|
|
|
Short edge
≤ 800 mm
|
Short edge
＞ 800 mm
|
Short edge
＞ 1500 mm
|
||
|
Flat tempered and semi tempered laminated glass
|
6mm
|
0.76mm
|
1.14mm
|
1.52mm
|
||
|
|
8—12mm
|
1.14mm
|
1.52mm
|
1.52mm
|
||
|
|
≥15mm
|
1.52mm
|
2.28mm
|
2.28mm
|
||
|
Glass type
|
Substrate thickness
|
PVB film thickness
|
|
|
|
|
|
Curvature radius
R ＞ 3mm
|
Curvature radius
R ≤ 3mm
|
|
|
Bent tempered and semi tempered laminated glass
|
≤8mm
|
2.28mm
|
1.52mm
|
|
|
|
≥10mm
|
1.14mm
|
1.52mm
|
|
|
Hot bent glass
|
≤6mm
|
0.76mm
|
1.14—1.52mm
|
|
|
|
≥8mm
|
1.14mm
|
1.52mm
|
|

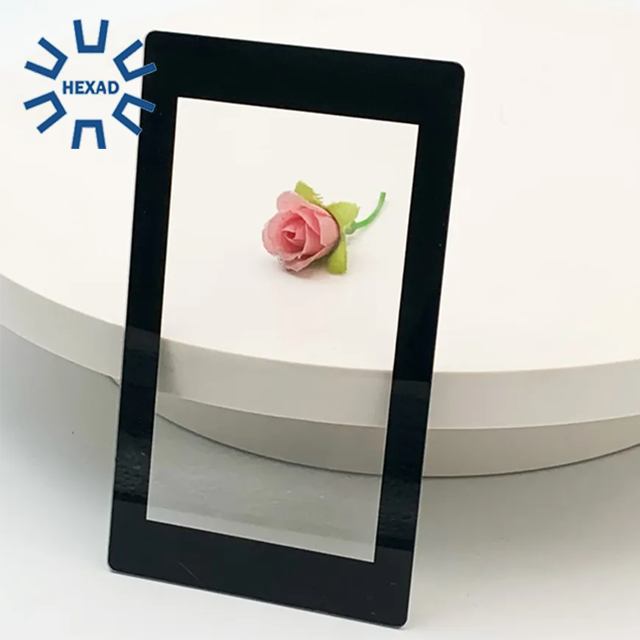

Product Display
Applications
AR Laminated Glass has excellent optical properties, impact resistance, shock resistance, noise resistance, and UV resistance. It is widely used as museum display cabinets glass, display windows glass, display screen glass, led lighting glass, machine glass, test equipment glass, high grade picture frame glass etc.
