Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ltmg
-
Model Number:
-
T320
-
Dimension(Long * Breadth * High):
-
5140*3388*3032mm
-
Product name:
-

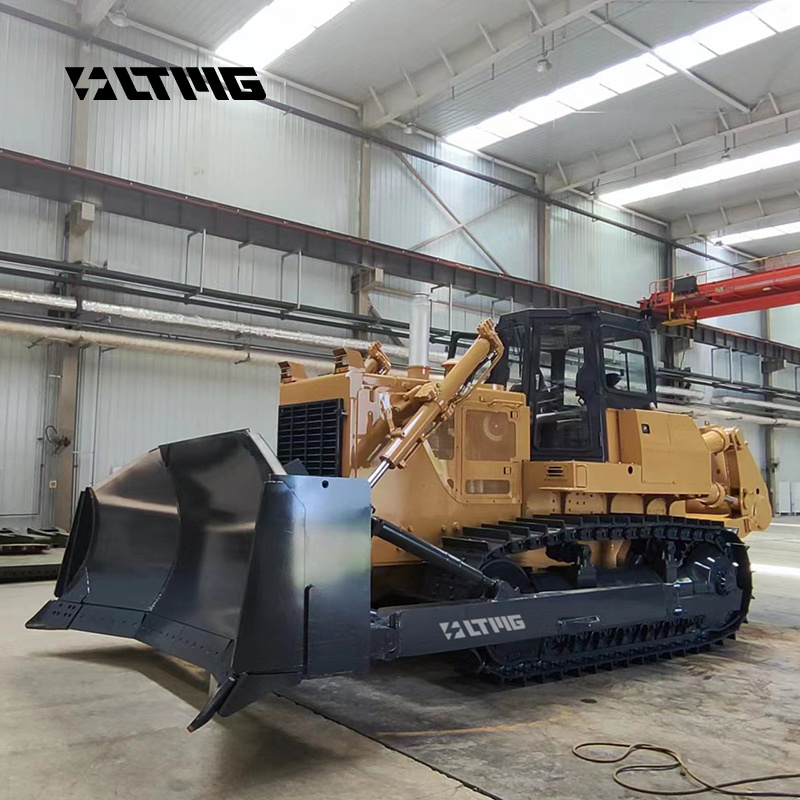

LTMG 320hp large crawler bulldozer with powerful engine for sale
-
Engine:
-
cummins-
-
Horse Power:
-
320hp
-
Operating weight:
-
17ton
-
Blade Capacity:
-
18.6mpa
-
Blade width:
-
3500mm
-
Discharge:
-
194L/min
-
Maximum drop below ground:
-
665mm
-
Track Type:
-
40 each side
-
Track Rollers:
-
7 each side
Quick Details
-
Machine Weight:
-
34570 KG
-
Dozing Capacity:
-
9.96CBM
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ltmg
-
Model Number:
-
T320
-
Dimension(Long * Breadth * High):
-
5140*3388*3032mm
-
Product name:
-
LTMG 320hp large crawler bulldozer with powerful engine for sale
-
Engine:
-
cummins-
-
Horse Power:
-
320hp
-
Operating weight:
-
17ton
-
Blade Capacity:
-
18.6mpa
-
Blade width:
-
3500mm
-
Discharge:
-
194L/min
-
Maximum drop below ground:
-
665mm
-
Track Type:
-
40 each side
-
Track Rollers:
-
7 each side
Product Shows
Advantages
|
Item
|
LTMG320hp bulldozer
|
|
|
Model & type
|
Cummins NT855-C280S10
|
|
|
Rate revolution (rpm)
|
2100
|
|
|
Rated power (KW)
|
177
|
|
|
Cylinder number-bore(mm) x Stroke
|
6-140x152
|
|
|
Piston displacement (ml)
|
14000
|
|
|
Min fuel consumption (g/kw.h)
|
235
|
|
|
Max torque (N.M/rpm)
|
1097/1500
|
|
|
POWER TRANSMISSION SYSYTEM
|
|
|
|
Torque Converter
|
Similar to Caterpillar technology,is power separating hydraulic-mechanic type.
|
|
|
Transmission
|
Similar to caterpillar technology, is planetary, power shift transmission.
|
|
|
Main drive
|
Cylinder gear and a pair of bevel gear transfer.
|
|
|
Steering clutch
|
Hydraulic pressed, non-constant engaged clutch.
|
|
|
Steering brake
|
The braking clutch is pressed by spring, separated hydraulic, constant meshed type.
|
|
|
Final drive
|
Similar to Caterpillar technology, Two-stage planetary reduction gear mechanism, splash lubrication.
|
|
|
TRAVEL SPEED
|
|
|
|
Forward (Km/h) Ⅰ / Ⅱ / Ⅲ
|
0-3.9 / 0-6.5 / 0-10.9
|
|
|
Reverse (km/h) Ⅰ / Ⅱ / Ⅲ
|
0-4.8 / 0-8.2 / 0-13.2
|
|
|
Type
|
The track is triangle shape. The sprocket is elevated elastic suspended.
|
|
|
Track rollers
|
7 each side(single flanges 4, double flange 3)
|
|
|
Track type
|
40 each side
|
|
|
Width of track shoes (mm)
|
560
|
|
|
Pitch (mm)
|
216
|
|
|
HYDRAULIC SYSTEMS
|
|
|
|
Maximum pressure (MPa)
|
18.6
|
|
|
Pump type
|
High pressure gears pump
|
|
|
Discharge (L/min)
|
194
|
|
|
Bore of working cylinder (mm)
|
120x2
|
|
|
Dozing capacity (m3)
|
8.4
|
|
|
Efficiency (m3/h) theoretical value 40cm
|
360
|
|
|
Blade width (mm)
|
3500
|
|
|
Blade height (mm)
|
1130
|
|
|
Maximum drop below ground (mm)
|
665
|
|
|
Maximum tilt adjustment (mm)
|
728
|
|
|
Weight of blade (kg)
|
1830
|
|
|
OPTION
|
AIR CONDITIONER,THREE-SHANKS RIPPER,FOREST CABIN,RIPPERS
|
|
|
Maximum digging depth of 3-shark ripper (mm)
|
741
|
|
|
Maximum lift above ground (mm)
|
809
|
|
|
Weight of 3-shark ripper
|
4300
|
|
|
Maximum digging depth of single ripper (mm)
|
850
|
|
|
Maximum lift above ground (mm)
|
770
|
|
|
Weight of single ripper
|
3900
|
|
|
OVERALL DIMENSIONS
|
|
|
|
Length (mm) Without ripper /With ripper
|
5677/7751
|
|
|
Width (mm) Without ripper /With ripper
|
3940/3940
|
|
|
Height (mm) Without ripper /With ripper
|
3549/3549
|
|
ODM/OEM
Optional A
ttachment
