Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
capacity:
-
150-550kg/h
-
motor power:
-
15,22 kw
-
diameter of briquette:
-
30,40, 50 mm,70,80, 90mm
-
electric heater:
-
2kw*3pcs,3kw*3pcs
-
materials selection:
-
sawdust,sugar cane,rice straw,etc
-
Raw material:
-
Wood Waste
-
Application:
-
BBQ
-
Function:
-
making wood briquettes
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
LEABON
-
Weight (KG):
-
800 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
capacity:
-
150-550kg/h
-
motor power:
-
15,22 kw
-
diameter of briquette:
-
30,40, 50 mm,70,80, 90mm
-
electric heater:
-
2kw*3pcs,3kw*3pcs
-
materials selection:
-
sawdust,sugar cane,rice straw,etc
-
Raw material:
-
Wood Waste
-
Application:
-
BBQ
-
Function:
-
making wood briquettes

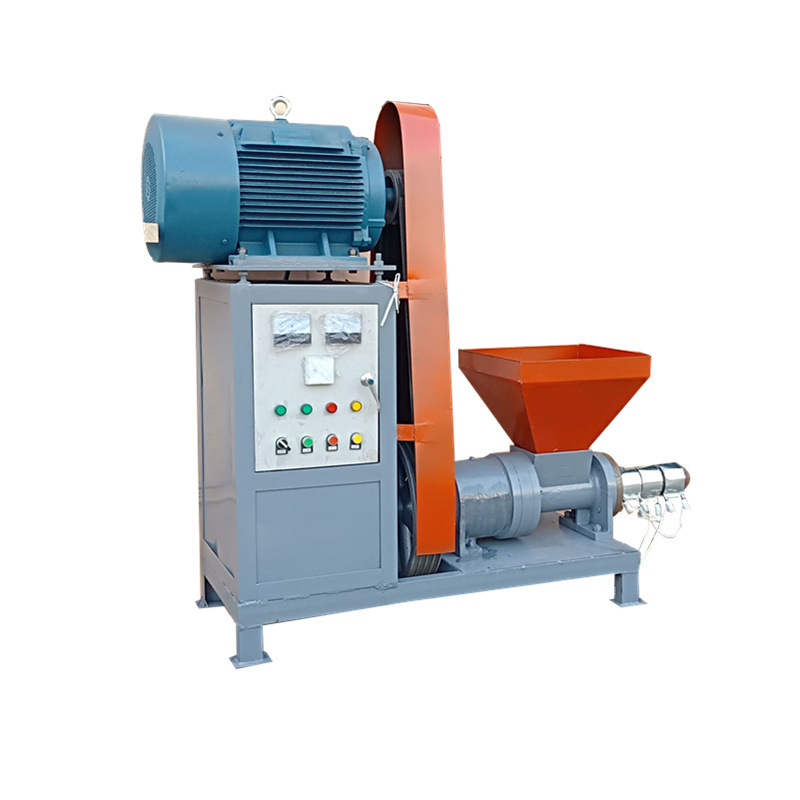

2019 New Wood Sawdust Briquette Press Wood Charcoal Making Machine
What Features of our Wood Charcoal Making Machine?
ZBJ (series) Biomass charcoal briquetting is the process of converting
substantial biomass agro/wood wastes into high density and energy concentrated
hollow bio fuel briquettes (half-charcoal stick) under high pressure and temperature.
During this process, no need to use binder and noxious chemical.
What Raw Material of our Wood Charcoal Making Machine?
Raw material: sawdust , sugar cane , rice straw , rice stalk , bamboo , corn / cotton husk ,etc.
Moisture: 8-12%,
Size: 3mm ~ 5mm
What Spare parts of our Wood Charcoal Making Machine?
The out diameter of final briquettes is 50 mm (ZBJ-50 ), 60mm, 70mm 80mm (ZBJ-80)
The length could be controlled and changed according to your requirements.
The follow spare parts are: Propeller, Forming Tubes , and Heating Collar.
What main data of our Wood Charcoal Making Machine?
|
Model |
Capacity |
Motor power |
Electric heater |
Diameter briquette |
Dimension (mm) |
|
ZBJ-50 |
180-210kg/h |
15kw,
|
2kw*3pcs |
50mm |
1780*750*1290 |
|
ZBJ-80 |
450-550kg/h |
22kw, |
3kw*3pcs |
60, 70 ,80mm |
1860*800*1360 |
What's final briquette of our Wood Charcoal Making Machine?
Finished briquettes can be used to heat boiler, fireplace etc., for warm in house.
It can produce retangular shape, and Hexagonal shape.
Related production for making wood briquette
Piston wood briquette machine with big capacity also produce the wood briquette.
Details Quotation Solutions for you, You can know information as follows:
1, What is your raw material?
According to the different raw material (such as wood, hard wood, soft wood, rice husk, cotton stalk,etc.), we can make sure whether will need the Wood Crusher or not.
2, What is the mositure and size of the raw material?
The moisture should be less than or equal to 12%.
The size of raw material is less than or equal to 20mm.
3, What's size of the final product?
The final product: Rectangular shape or hexagonal shape
The size of final briquettes are, 50mm, 60mm,70mm, 80mm. The length are adjustable.
4.Do you have manual and video with the machine?
Yes, we have the manual, it is in English version, of course we will send the machine installation and adjustable video to help you.
5.Can you send us the necessary paper to do the custom clearance?
Yes. the comericial invoice, packing list , proforma invoice , and bill of loading(BL), CE and CO are also avaliable,
if you need.
