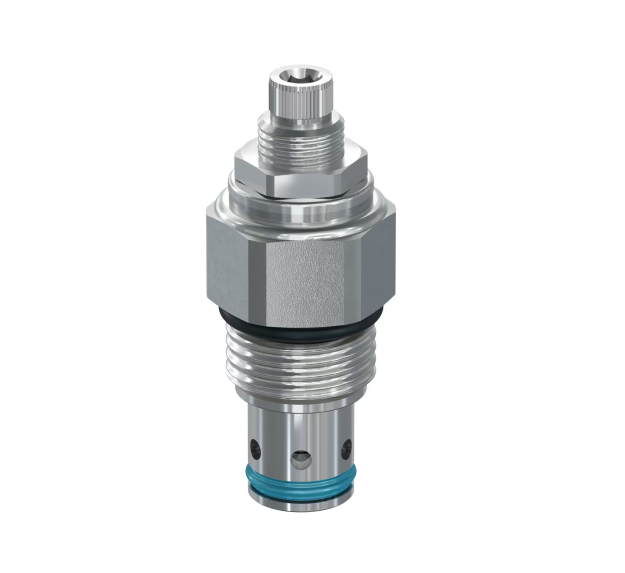

Parker pilot operated relief valves safety duty applications great stability RAH101S50 Threaded cartridge hydraulic valve

Parker pilot operated relief valves safety duty applications great stability RAH101S50 Threaded cartridge hydraulic valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $15

≥50 Pieces

US $10

≥200 Pieces

US $8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Weight:: 0.23

Power:: 0

Dimension(L*W*H):: 4*4*

Maximum pressure:: 420bar

Maximum Flow Rate:: 113L/min

Type:: Proportional Pressure Relief Valve

Product name:: Threaded Cartridge Valve

Material:: Carbon Steel

Structure:: Mechanical

After Warranty Service:: Online Support

After-sales Service Provided:: Spare Parts

Delivery Time:: 1-5 Days

Media:: Hydrualic Oil

Quick Details

Warranty:: 1 Year

Valve type:: PRESSURE CONTROL VALVE

Brand Name:: X-hydraulics

Place of Origin:: Shanghai, China

Weight:: 0.23

Power:: 0

Dimension(L*W*H):: 4*4*

Maximum pressure:: 420bar

Maximum Flow Rate:: 113L/min

Type:: Proportional Pressure Relief Valve

Product name:: Threaded Cartridge Valve

Material:: Carbon Steel

Structure:: Mechanical

After Warranty Service:: Online Support

After-sales Service Provided:: Spare Parts

Delivery Time:: 1-5 Days

Media:: Hydrualic Oil

Product Overview

Pilot Operated Relief Valve

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm)

Pilot Operated Spool-Type Relief Valve

FEATURES AT A GLANCE

• Hardened, precision ground parts for durability

• Low proffle adapter for minimal space requirements

• Fully guided poppet for
more consistent reseat

• Steel adapters are zinc plated

• Polyurethane “D”-Ring eliminates backup rings and prevents hydrolysis

• Internal screening protects pilot spring from debris

PRODUCT SPECIFICATIONS

No	Item	Data
1	Rated Flow	113L/min
2	Maximum Inlet Pressure Setting	350 Bar (5000 PSI)
	Maximum internal leakage @150 SSU (32 cSt)	5 cc per 100 PSI (6.8 Bar) setting
4	Operating Temp. Range/Seals	-45°C to +132°C (“D”-Ring) (-50°F to +270°F) -34°C to +121°C (Nitrile) (-30°F to +250°F) -26°C to +204°C(Fluorocarbon) (-15°F to +400°F)
5	Cavity	C10-2
