Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUADE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
22*4*3M
-
Power (kW):
-
75
-
Weight:
-
18
-
Keywords:
-
Pipe Machine CHINA
-
Automatic Grade:
-
Automtic
-
Inverter:
-
ABB
-
Function:
-
Automatic Pipe Making Machine Line
-
Contactor:
-
Schnerder
-
Cooling way:
-
Cooling Fan
-
Application Field:
-
Agricultural Irrigation
-
Control:
-
OMRON Temperature Controller
-
Temperature control:
-
Omron Japan
-
Pipe diameter:
-
20-160mm
-
Certification:
-
CE
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
33:1
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUADE
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
22*4*3M
-
Power (kW):
-
75
-
Weight:
-
18
-
Keywords:
-
Pipe Machine CHINA
-
Automatic Grade:
-
Automtic
-
Inverter:
-
ABB
-
Function:
-
Automatic Pipe Making Machine Line
-
Contactor:
-
Schnerder
-
Cooling way:
-
Cooling Fan
-
Application Field:
-
Agricultural Irrigation
-
Control:
-
OMRON Temperature Controller
-
Temperature control:
-
Omron Japan
-
Pipe diameter:
-
20-160mm
-
Certification:
-
CE
Product Description

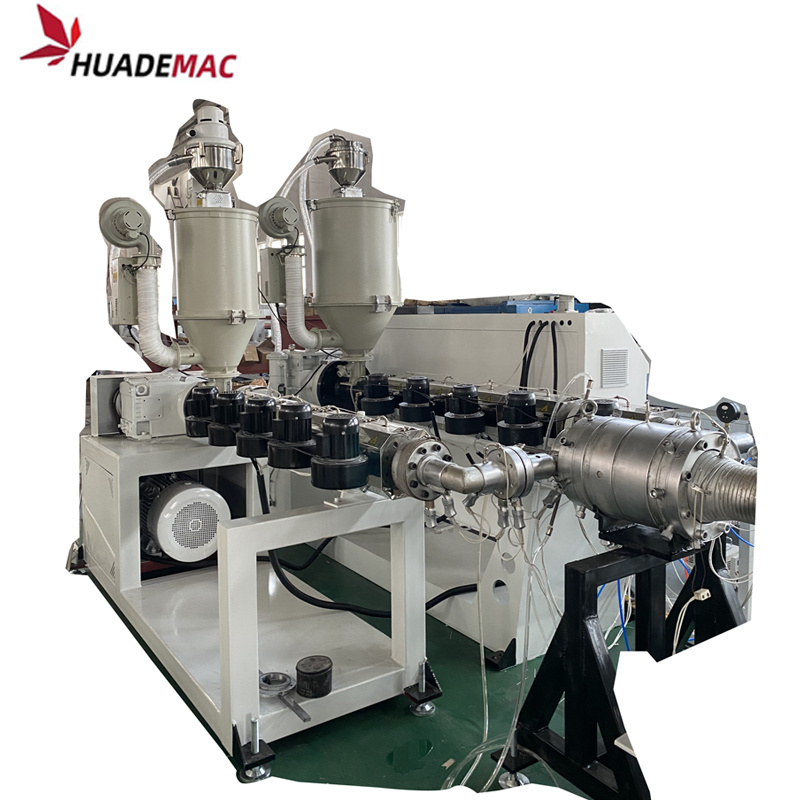

This line has two single-screw extruder.
It has a dual-channel structure and nitriding polishing head.
The forming machine adopts horizontal structure, chain drive design, advanced water cooling system, vacuum forming system,automatic lubrication system and advanced double-layer on-line expansion function.
It has a dual-channel structure and nitriding polishing head.
The forming machine adopts horizontal structure, chain drive design, advanced water cooling system, vacuum forming system,automatic lubrication system and advanced double-layer on-line expansion function.
Product Information
Double Wall Corrugated Pipe Making Machine
:
HDPE Double Wall Corrugated Pipe Application:
For green space plants, green garden spaces. Farmland, capital construction of farmland soil improvement, soil and water conservation, drought, waterlogging, land salinization improvement and so on.
HDPE Double Wall Corrugated Pipe Application:
For green space plants, green garden spaces. Farmland, capital construction of farmland soil improvement, soil and water conservation, drought, waterlogging, land salinization improvement and so on.
It is an easy and reliable coupling without any complex fitting, and replaces the concrete pipe and cast iron pipe. At present,
PE double wall corrugated piping is being used extensively to ensure the development of environmental protection during networking
of water and sewerage.
of water and sewerage.
Specification
|
Model
|
Pipe Diameter
|
Extruder
|
Capacity
|
Line occupation
|
|
HD110
|
50-110MM
|
SJ65/30+SJ65/30
|
150-200Kg/h
|
15X3X3m
|
|
HD160
|
63-160MM
|
SJ65/33+SJ75/30
|
300-400Kg/h
|
22X5X3.2m
|
|
HD250
|
110-250MM
|
SJ70/33+SJ65/33
|
400-500Kg/h
|
26X5X3.5m
|
