Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SIMO
-
Model Number:
-
SIMO Blower 6-03
-
Voltage:
-
380V/415V/440V/660V/6KV/10KV
-
Air composition:
-
Clean air/Dusty air
-
Temperature:
-
Normal temperature Air/Hot Air
-
Application:
-
Industrial Ventilation
-
Feature:
-
High Performance
-
Drivetrain:
-
Direct/Coupling Driven/V-belt Driven
-
Material:
-
Carbon Steel/Alloy Steel/Stainless Steel
-
Motor:
-
SIEMENS/ABB/By your demand
-
Bearing:
-
SKF/FAG/By your demand
-
Blade:
-
Forward / Backward/Backward Curved
-
Product name:
-
Hot Sale Industry Thermal Power Plant Steam Turbine Centrifugal Fan
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Construction works , Energy & Mining, Industrial power generation system
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SIMO
-
Model Number:
-
SIMO Blower 6-03
-
Voltage:
-
380V/415V/440V/660V/6KV/10KV
-
Air composition:
-
Clean air/Dusty air
-
Temperature:
-
Normal temperature Air/Hot Air
-
Application:
-
Industrial Ventilation
-
Feature:
-
High Performance
-
Drivetrain:
-
Direct/Coupling Driven/V-belt Driven
-
Material:
-
Carbon Steel/Alloy Steel/Stainless Steel
-
Motor:
-
SIEMENS/ABB/By your demand
-
Bearing:
-
SKF/FAG/By your demand
-
Blade:
-
Forward / Backward/Backward Curved
-
Product name:
-
Hot Sale Industry Thermal Power Plant Steam Turbine Centrifugal Fan

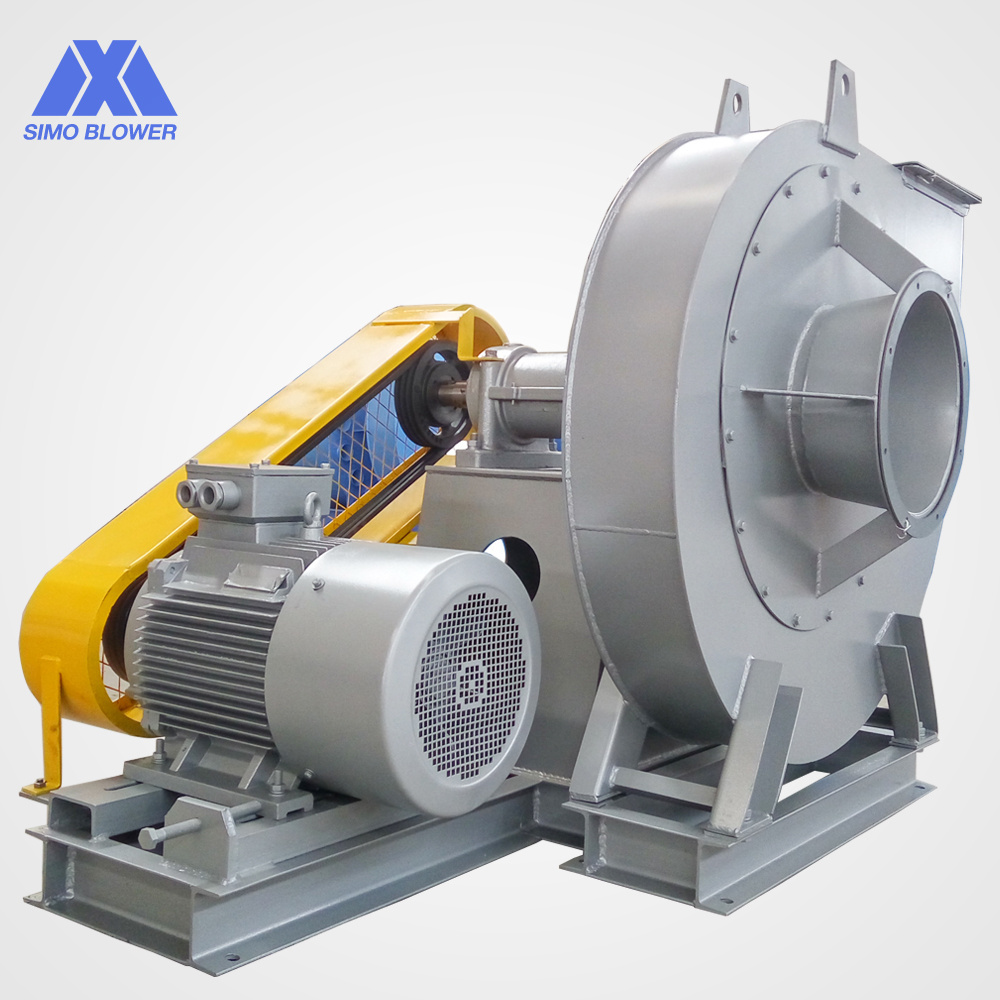

Hot Sale Industry Thermal Power Plant Steam Turbine Centrifugal Fan
| Series | Model |
Rotation Speed
(r/min) |
Total Pressure
(Pa) |
Air Capacity
(m³/h ) |
Power
(kW) |
| 5-05 | 2.5A~6.5A | 1420~2825 | 907~1313 | 599~11053 | 0.75~5.5 |
| 4C~10C | 1600~2900 | 1232~3867 | 3007~44413 | 3~45 | |
| 8D~12.4D | 1450 | 1989~4051 | 12028~76740 | 15~90 | |
| 5-06 | 8F~31.5F | 480~1450 | 1358~9828 | 9890~709000 | 15~2000 |
| 5-11 | 4C~9C | 1740~2900 | 990~3197 | 2750~36140 | 3~37 |
| 12D~12.4D | 1450 | 2471~3903 | 37100~75330 | 75~90 | |
| 5-12 | 4C~12.5C | 1000~3550 | 742~4234 | 2065~67803 | 2.2~110 |
| 6-03 | 5A | 2900 | 4393~3217 | 2240~4776 | 7.5 |
| 6C~9C | 1500~2400 | 187~5482 | 2403~17300 | 4~37 | |
| 6-04 | 12D~20D | 1450 | 3581~14867 | 14800~163000 | 55~800 |
| 6-05 | 2.5A~8.5A | 1420~2825 | 451~3391 | 403~18137 | 0.55~18.5 |
| 3.55C~10C | 1600~3450 | 588~3338 | 841~32144 | 1.5~37 | |
| 11.2D | 1480 | 2764~4086 | 21578~41773 | 45~55 | |
| 6-06 | 8F~31.5F | 480~1450 | 1903~10628 | 9900~776000 | 18.5~2500 |
| 8D~29.5D | 480~1450 | 1859~10980 | 11000~667000 | 15~2000 | |
| 6-09 | 6.3A | 1460 | 1800~1407 | 4116~7464 | 5.5 |
| 6-11 | 14D~20D | 1450 | 5435~14461 | 22889~121114 | 90~630 |
| 6-12 | 3.15C~12.5C | 400~3150 | 344~2043 | 755~56902 | 0.75~22 |
Please contact me for customized parameters !
|
Xinxiang SIMO BLOWER CO., LTD. which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, which covers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year. There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc. |
