Quick Details
-
Max. Spindle Speed (r.p.m):
-
2500 r.p.m
-
Max. Weight of Workpiece(kg):
-
400
-
Spindle Bore(mm):
-
82
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
500 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2410/2660/3160*1560*1730mm
-
Brand Name:
-
YZ CNC
-
Model Number:
-
CK6150
-
Voltage:
-
380V/220V/450V/415V
-
Weight (KG):
-
3000
-
Name:
-
CNC Metal Turning Lathe Machine CK6150 With Hydraulic Chuck
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Machine Type:
-
Horizontal CNC Lathe
-
Keyword:
-
Cnc Lathe Machine Tool
-
Product name:
-
CNC Lathe Mechine
-
Product Keywords:
-
Metal Lathe Cnc
-
Usage:
-
large CNC lathe
-
Machine Name:
-
Horizontal Cnc Metal Turning Lathe
-
Application:
-
CNC metal Turning Lathe
-
Function:
-
Machining Metal Lathe
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Year:
-
New
-
Max. Spindle Speed (r.p.m):
-
2500 r.p.m
-
Max. Weight of Workpiece(kg):
-
400
-
Spindle Bore(mm):
-
82
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
500 mm
-
Travel (Z Axis)(mm):
-
750 mm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2410/2660/3160*1560*1730mm
-
Brand Name:
-
YZ CNC
-
Model Number:
-
CK6150
-
Voltage:
-
380V/220V/450V/415V
-
Weight (KG):
-
3000
-
Name:
-
CNC Metal Turning Lathe Machine CK6150 With Hydraulic Chuck
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Machine Type:
-
Horizontal CNC Lathe
-
Keyword:
-
Cnc Lathe Machine Tool
-
Product name:
-
CNC Lathe Mechine
-
Product Keywords:
-
Metal Lathe Cnc
-
Usage:
-
large CNC lathe
-
Machine Name:
-
Horizontal Cnc Metal Turning Lathe
-
Application:
-
CNC metal Turning Lathe
-
Function:
-
Machining Metal Lathe
CNC Metal Turning Lathe Machine CK6150 Low Cost CNC Lathe
CK6150 CNC Lathe Specification
|
Item |
CK6150A |
CK6150B |
CK6150T |
|
Max. swing diameter over bed |
Φ500mm |
Φ500mm |
Φ500mm |
|
Max. swim diameter over cross |
Φ300mm |
Φ300mm |
Φ290mm |
|
Processing length |
1000mm |
1000mm |
1000mm |
|
Width of the bed |
400mm |
400mm |
360mm |
|
Diameter of spindle bore |
Φ82mm |
Φ82mm |
Φ70mm |
|
Spindle taper |
1:20/Φ90 |
1:20/Φ90 |
1:20/Φ90 |
|
Spindle nose |
D-8 |
D-8 |
A2-8 |
|
Spindle speed |
150-2000rpm |
36-1600rpm Three gears |
150-2000rpm |
|
Chuck size |
250mm |
250mm |
250mm |
|
Tool holder |
4 station |
4 station |
4 station |
|
Tool bar section |
25X25mm |
25X25mm |
25X25mm |
|
Main motor power |
7.5KW |
7.5KW |
7.5KW |
|
X/Z axis position accuracy |
0.01/0.015mm |
0.01/0.015mm |
0.01/0.015mm |
|
X/Z axis repeat accuracy |
0.008mm |
0.008mm |
0.008mm |
|
X/Z axis torque |
6/10N.M |
6/10N.M |
6/10N.M |
|
X/Z axis fast feeding speed |
6/8 M/MIN |
6/8 M/MIN |
6/8 M/MIN |
|
Tail stock sleeve travel |
180mm |
180mm |
120mm |
|
Tail stock taper |
MT5 |
MT5 |
MT5 |
|
Dimension |
3200*1560*1730mm |
3200*1560*1730mm |
2600x1500x1600mm |
|
Weight |
3200 |
3200 |
3000KG |

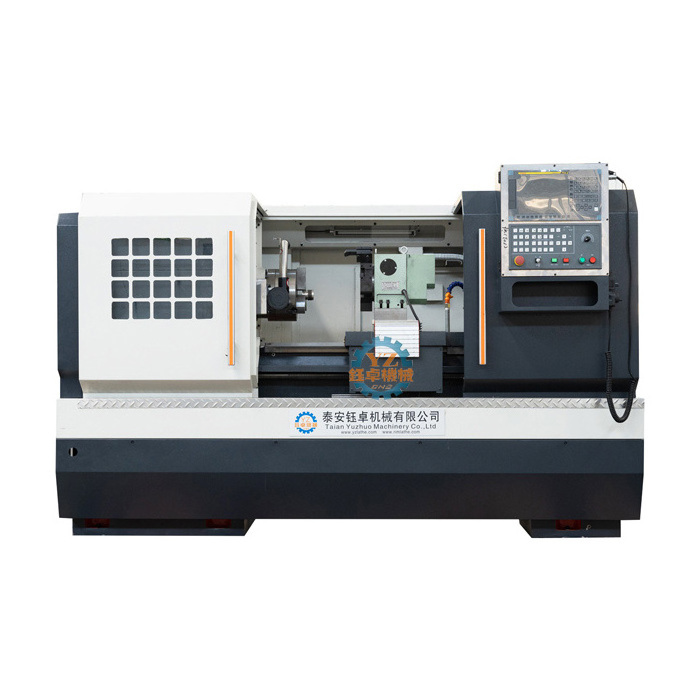

CK6150 CNC Lathe Photos
Standard Configuration
CNC system: GSK928, servo motor,Servo driver
Manual chuck 250mm 3 jaws
Manual tail stock,
Vertical four-station electric turret,
Automatic lubrication system,
Turning the cooling system.
Lighting system
Standard packing list
Tool box
380v 50hz 3phases
Optional Configuration
CNC : FANUC OI-TF , SIEMENS SYNTEC,KND,GSK
Manual 4 jaw chuck 250mm
Hydraulic chuck,hydraulic tail stock
Pneumatic chuck, pneumatic tail stock
6, 8 stations electric tool post
change machine voltage
