Quick Details
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
24V
-
Lamp Luminous Flux(lm):
-
2380
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-25 - 65
-
Product Weight（kg）:
-
0.04
-
Color Temperature(CCT):
-
3000-6500K Adjustable
-
Waterproof Grade:
-
IP20 / IP65 / IP68
-
Beam Angle:
-
120
-
Package Size:
-
5 meters per roll
-
Certification:
-
ce/RoHS/UL
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COXO
-
Model Number:
-
V2835-D240-SCCT
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
24V
-
Lamp Luminous Flux(lm):
-
2380
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-25 - 65
-
Product Weight（kg）:
-
0.04
-
Color Temperature(CCT):
-
3000-6500K Adjustable
-
Waterproof Grade:
-
IP20 / IP65 / IP68
-
Beam Angle:
-
120
-
Package Size:
-
5 meters per roll
-
Certification:
-
ce/RoHS/UL
Product Description

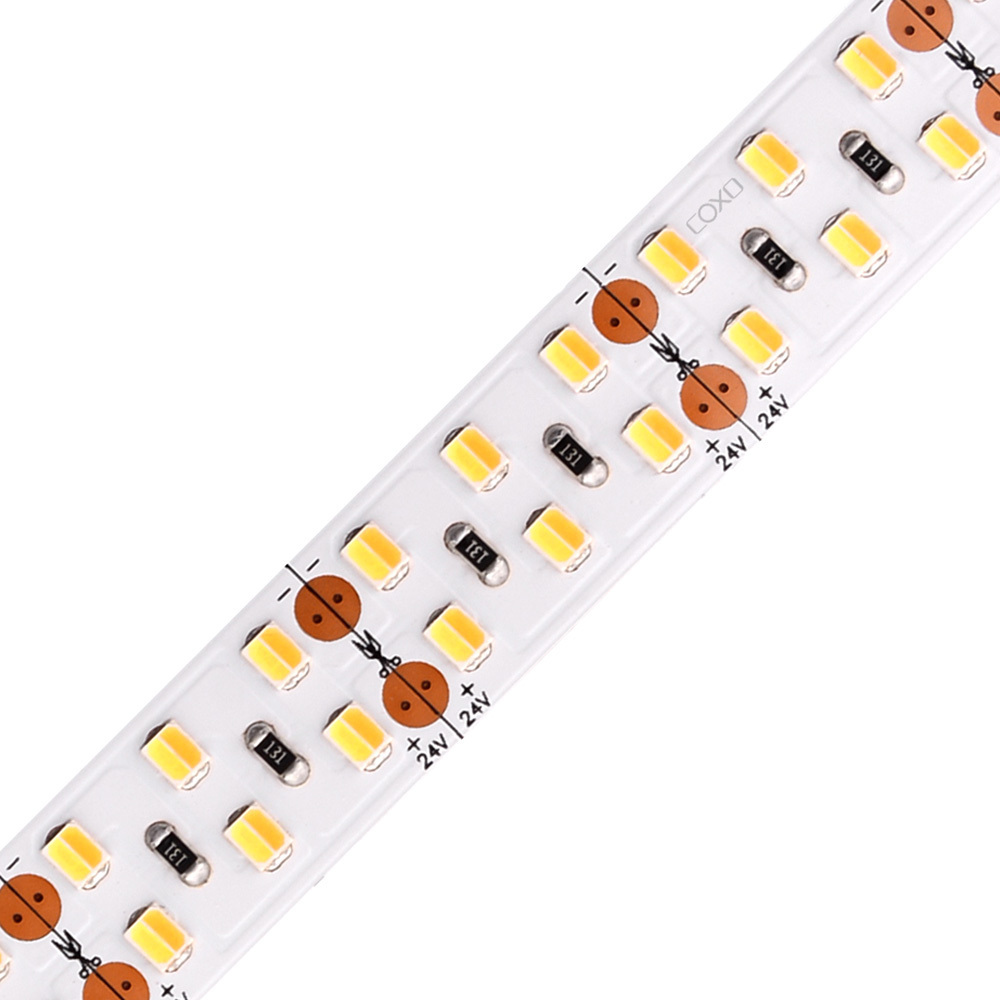

2835 D240leds SCCT Flexible LED Strips
Certification
Product Paramenters
|
Product Name
|
2835 SCCT LED Strip Light
|
|
|
|
|||
|
LED Type
|
SMD 2835
|
|
|
|
|||
|
LED Quantity
|
60 led/m
|
120 led/m
|
240 led/m
|
240 Double Lines
|
|||
|
Work Voltage
|
12V / 24V DC
|
12V / 24V DC
|
24V DC
|
24V DC
|
|||
|
Power
|
10W / 11W
|
15W / 18W
|
24W/M
|
24W/M
|
|||
|
Ra
|
>80
|
>80
|
>80
|
>80
|
|||
|
Brightness
|
920Lm / 1010Lm
|
1400Lm / 1680Lm
|
2300Lm
|
2380Lm
|
|||
|
PCB Thickness
|
2 oz
|
2 oz
|
3 oz
|
3 oz
|
|||
|
PCB Size
|
8mm
|
8mm
|
10mm
|
15mm
|
|||
|
IP Rating Available
|
IP20/IP66/IP67/IP68
|
IP20/IP66/IP67/IP68
|
|
|
|||
|
Certification
|
UL/CE/LVD/EMC/ROHS/BIS
|
|
|
|
|||
|
Warranty
|
3-Year
|
|
|
|
|||
Original 3M Adhesive Tape
Stable installation
UL AWG20# Wire
Temperature range:
-60℃~+200℃
IP Rating
|
IP20
|
Non-waterproof, 3M adhesive on the back.
|
|
IP54
|
Paint a thin layer of silicon glue on the led strip, 3M adhesive on the back.
|
|
IP65
|
Paint a thick layer of silicon glue on the led strip, 3M adhesive on the back.
|
|
IP66
|
Wrap the led strip by heat shrink tube，3M adhesive on the back.
|
|
IP67
|
Put the led strip into the silicone tube, without 3M adhesive on the back.
|
|
IP68
|
Put the led strip into the silicone tube, and filled with glue, or extrusion the led strip to silicon tube
|
Custom Solution
Custom LED Strip
Not only offer standard products bu with customized package, specification, length....
Custom Aluminum Profile
Factory finished aluminum profile and cover options are cuttable in specified length according to custom requirements
Custom Assemble Solutions
Supply LED Strip & aluminum profile asssembling service and simplify the installation process for users. Personalized length and color temerature is avaiable.
|
LED Type
|
LED Quantity
|
Work
Voltage
|
Power
(w/m)
|
CCT
|
Ra
|
PCB Width
|
Waterproof
(IP Rating)
|
Adhesive Tape
|
PCB Print
|
|
2835
5050
3528
3014
2110
2216
......
|
30
48
60
98
120
168
240
480
......
|
3V
5V
9V
12V
24V
36V
......
|
4.8w/m
6w/m
7.2w/m
14.4w/m
18w/m
24w/m
36w/m
......
|
1800K
2400K
2700K
3000K
4000K
6000K
10000K
UV395
......
|
80+
90+
95+
98+
|
3mm
4mm
5mm
8mm
10mm
12mm
36mm
......
|
IP20
IP54
IP65
IP66
IP67
IP68
|
3M 9080A
3M 300MP
3M 3229
......
|
UL
CE
ROHS
LOGO
......
|
More Options
Full Series LED Strip products
Application
Accessories for LED Strip Light One-stop Solution
LED Aluminum Profile
Flexible led strip 2835 smd 60 8mm led tape lights dc 12v 24v ip20 ip54 ip65 ip67 ip68 waterproof ce rohs ul led strip light
