Quick Details
-

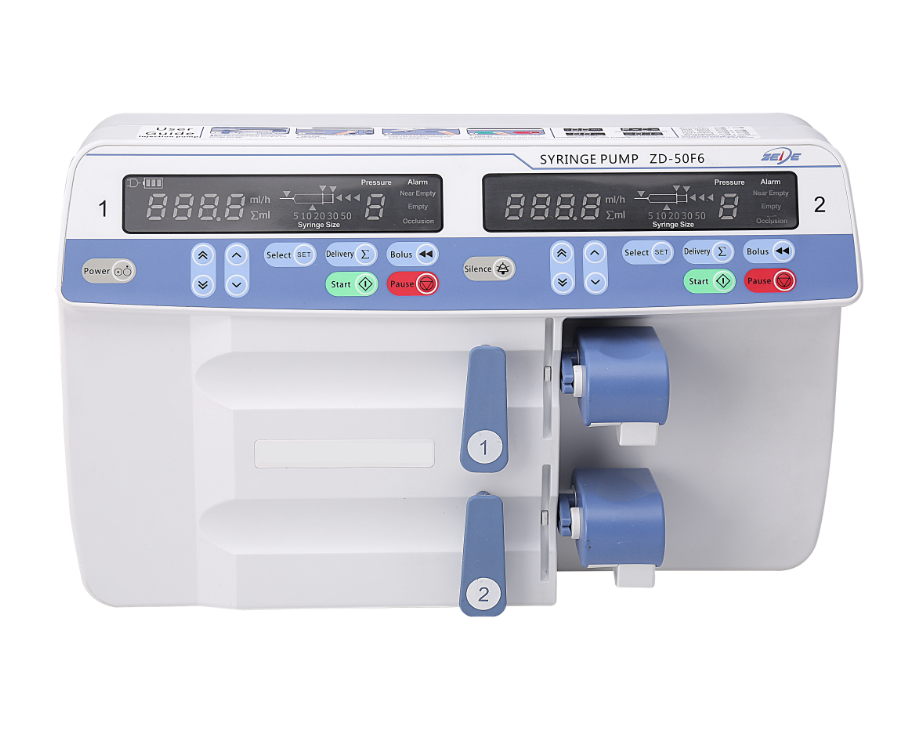

Model Number:
-
ZD-50F6
-
Place of Origin:
-
Jiangsu, China
-
Product:
-
syringe pump
-
Syringe size:
-
5/10/20/30/50ml (1/2/3ml is optional)
-
The range of limiting volume:
-
0~9999.0ml
-
warranty:
-
3 years
-
Accuracy:
-
≤±2%(mechanism≤±1%)
-
Endurance of battery:
-
10h (flow rate ≤5mL/h)
-
KVO rate:
-
0.5 ml/h
-
Water Proof Level:
-
IPX4
-
Color:
-
Blue, white
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
ZEDE
-
Model Number:
-
ZD-50F6
-
Place of Origin:
-
Jiangsu, China
-
Product:
-
syringe pump
-
Syringe size:
-
5/10/20/30/50ml (1/2/3ml is optional)
-
The range of limiting volume:
-
0~9999.0ml
-
warranty:
-
3 years
-
Accuracy:
-
≤±2%(mechanism≤±1%)
-
Endurance of battery:
-
10h (flow rate ≤5mL/h)
-
KVO rate:
-
0.5 ml/h
-
Water Proof Level:
-
IPX4
-
Color:
-
Blue, white
What's your products feature/ specialty?
(1) Our company works on medical devices for more than 11 years. We are professional and experienced.
(2) The only one company in the word who use 4pcs battery lines and battery sensors to make a good heat dissipation effect.
(3) With 26 patents to ensure safety and quality.
(4) The only one company in the word who use displacement sensor to avoid drug back flow.
|
Parameter |
||
|
Syringe Size |
5ml, 10ml, 20ml, 30ml, 50ml ( optional: 1/2/3mL ) |
|
|
Flow Rate |
0.0-150ml/h (0.1ml/h increment) 5ml syringe 0.0-300ml/h (0.1ml/h increment) 10ml syringe 0.0-600ml/h (0.1ml/h increment) 20ml syringe 0.0-900ml/h (0.1ml/h increment) 30ml syringe 0.0-1200ml/h (0.1ml/h increment,1ml/h increment if over 1000ml/h) 50ml syringe |
|
|
Precision |
≤±2%(mechanism≤±1%) |
|
|
Inquiry of total volume |
0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml) |
|
|
VTBI |
0.0ml-9999ml(0.1ml increment, 1ml increment if over 1000ml) |
|
|
Occlusion Value |
High(H):800±200mmHg (106.7±26.7kPa) Centre(C):500±100mmHg (66.7±13.3kPa) Low(L):300±100mmHg (40.7±13.3kPa) |
|
|
Alarm |
Remind alarm,Occlusion alarm,Near empty alarm, Empty alarm, syringe barrel unlock alarm, syringe plunger disengage alarm, syringe flange disengage alarm, AC power failure, Low battery alarm, Battery empty alarm, VTBI finish reminder, infusion tube disconnect(option) |
|
|
Power |
AC:100V-240V±10%, 50Hz-60Hz±1Hz Built-in Battery:DC15V Ni-MH battery. Built-in battery can run for 10 hours at 5ml/h. (It can be replaced by lithium ion battery pack if necessary.) DC:DC15V,vehicle power |
|
|
Running Environment |
Temperature:+5℃-+40℃ Relative Humidity:20%-90% Atmosphere Pressure:860hPa-1060hPa |
|
|
Transport And Storage Environment |
Temperature:-20℃-+55℃ Relative Humidity:10%-93% Atmosphere Pressure:500hPa-1060hPa |
|
|
Electric Safety Classification |
Class I, CF type,Built-in battery,Continuous operation equipment |
|
|
Water Proof Level |
IPX4 |
|
|
Net Weight |
3.5kg(include fastener) |
|
|
Dimension |
320mm(W)× 193mm(H)× 138mm(D) |
|
|
Function |
||
|
KVO rate Safety lock for PURGE/BOLUS All brands of syringes are available Preset occlusion detection pressure level Preset Volume To Be Infused Dual channel RS232 interface 4500 history log |
Standby function Safety lock for flow rate adjust Automatic syringe size detection Bolus release Inquiry of total infused volume Power indicator Vehicle Power Double CPU |
|
|
Advanced Function |
||
|
Adjust occlusion detection pressure Adjust KVO rate Preset maximum limit amount of single bolus Preset volume of alarm voice |
Calibrate parameter of syringe Preset residual amount of solution Preset maximum value of flow rate Preset system time |
|
Warranty rules :
1. Three years warranty for free;
2. Offer spare parts for free, during the warranty period when you have RMA problem.
