Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
HTFA-103
-

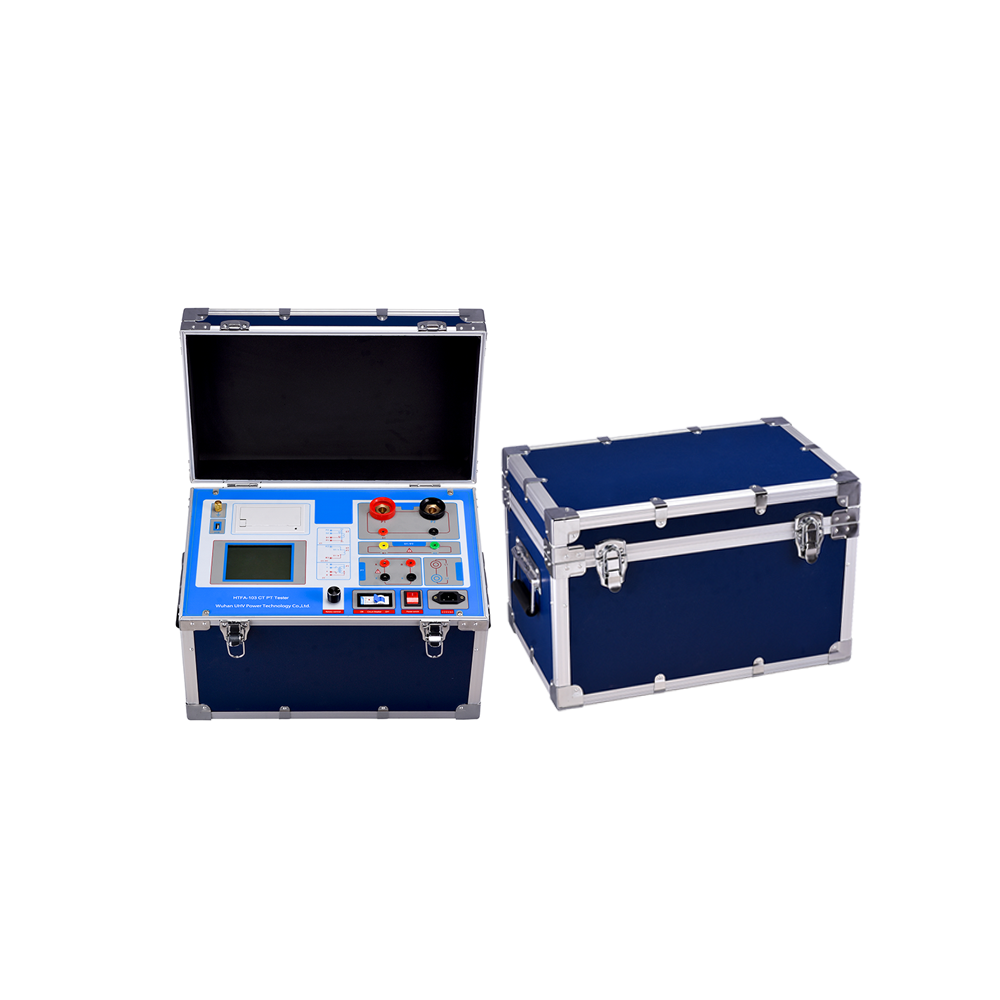

Product name:
-
CT PT Teste
-
Output voltage:
-
0~1200V (the maximum current setting is 20A)
-
High current output:
-
0~600A
-
Excitation measurement accuracy:
-
≤ 0.5% (0.3% * reading+0.2% * range)
-
CT ratio test range:
-
≤5000A/1A(25000A/5A)
-
PT ratio test range:
-
≤500kV
-
CT PT ratio measurement accuracy:
-
≤0.5%
-
Working temperature:
-
-10℃ ~ 40℃
-
Size:
-
410mm *260mm *340mm
Quick Details
-
Warranty:
-
1 years, 1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
HTFA-103
-
Product name:
-
CT PT Teste
-
Output voltage:
-
0~1200V (the maximum current setting is 20A)
-
High current output:
-
0~600A
-
Excitation measurement accuracy:
-
≤ 0.5% (0.3% * reading+0.2% * range)
-
CT ratio test range:
-
≤5000A/1A(25000A/5A)
-
PT ratio test range:
-
≤500kV
-
CT PT ratio measurement accuracy:
-
≤0.5%
-
Working temperature:
-
-10℃ ~ 40℃
-
Size:
-
410mm *260mm *340mm
Product Description
Product Description
Designed for automatic testing of protection and metrology CT / PT, suitable for laboratory and field testing.
Product Feature
Product Feature
1. Support testing CT and PT
2. Meet the requirements of GB 20840.3-2013, GB 20840.2-2014 and other regulations
3. No need to connect other auxiliary equipment, all testing items can be completed in a single machine
4. Comes with a micro-fast printer, can directly print test results on site
5. Using intelligent controller, simple operation
6. Large screen LCD, graphical display interface
7. CT / PT (excitation) inflection point value is automatically given according to the regulations
8. Automatically give 5% and 10% error curves
9. 3000 sets of test data can be saved without loss after power off
10. Support U disk transfer data, can be read through a standard PC, and generate WORD report
11. Small and light ≤22kg, very conducive to on-site testing
2. Meet the requirements of GB 20840.3-2013, GB 20840.2-2014 and other regulations
3. No need to connect other auxiliary equipment, all testing items can be completed in a single machine
4. Comes with a micro-fast printer, can directly print test results on site
5. Using intelligent controller, simple operation
6. Large screen LCD, graphical display interface
7. CT / PT (excitation) inflection point value is automatically given according to the regulations
8. Automatically give 5% and 10% error curves
9. 3000 sets of test data can be saved without loss after power off
10. Support U disk transfer data, can be read through a standard PC, and generate WORD report
11. Small and light ≤22kg, very conducive to on-site testing
