Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
XINGTAI
-
Dimension(L*W*H):
-
1000*790*590mm
-
Weight (KG):
-
285 KG
-
Warranty of core components:
-
years
-
Marketing Type:
-
New Product 2024
-
Laser tube brand:
-
Reci/EFR/CWG
-
Cutting materials:
-
Non-metallic Materials
-
Laser tube of power:
-
130W/150W
-
Working area:
-
1300*2500mm
-
Water chiller:
-
cw5200
-
Control Software:
-
Ruida
-
Cutting Thickness:
-
30mm Maxim
-
Function:
-
Cutting Engraving Marking
Quick Details
-
Engraving Area:
-
1300mm*2500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Brand Name:
-
XINGTAI
-
Dimension(L*W*H):
-
1000*790*590mm
-
Weight (KG):
-
285 KG
-
Warranty of core components:
-
years
-
Marketing Type:
-
New Product 2024
-
Laser tube brand:
-
Reci/EFR/CWG
-
Cutting materials:
-
Non-metallic Materials
-
Laser tube of power:
-
130W/150W
-
Working area:
-
1300*2500mm
-
Water chiller:
-
cw5200
-
Control Software:
-
Ruida
-
Cutting Thickness:
-
30mm Maxim
-
Function:
-
Cutting Engraving Marking

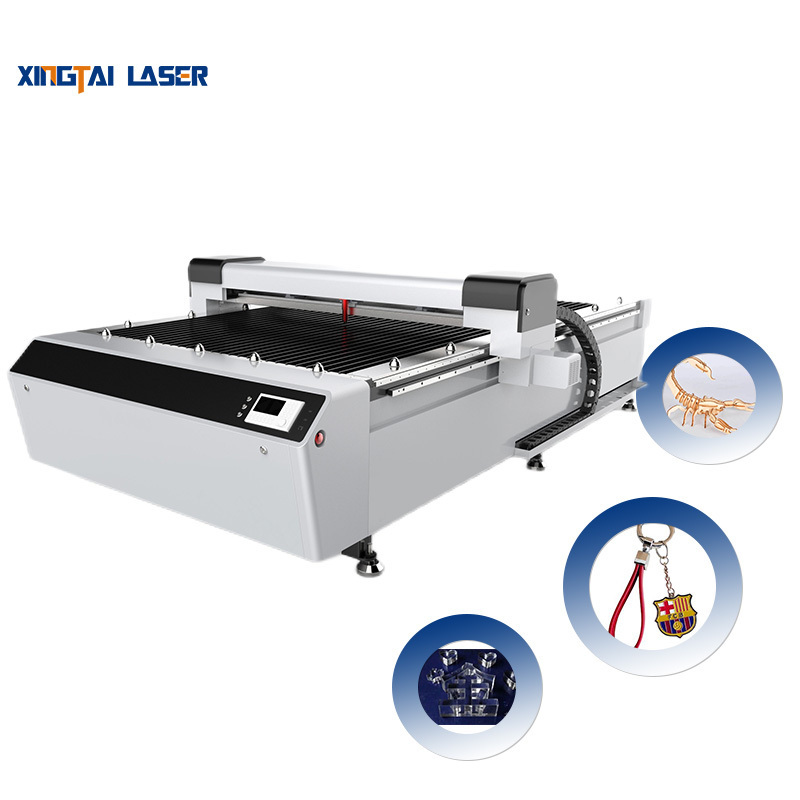

Laser 50W Ruida 400*400 Laser Engraving Machine For Plastic Laser Wood Cutting Machine Laser Engraving Machine For Silicone
Product Description
Specification
|
Taiwan Guide rail
|
Hiwin
|
Power Supply
|
220V/50Hz, 110V/60Hz
|
|
|
|
Laser medium
|
CO2
|
Min line width
|
≤0.15mm
|
|
|
|
Working area
|
1300*2500mm
|
Positon accuracy
|
0.01mm
|
|
|
|
Laser power
|
60W/80W/100W/150W/180W
|
Repetition accuracy
|
0.02mm
|
|
|
Automatic Focusing
Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.
RECI /Yong Li/ CWG Laser Tube
Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed.
Four-sided opening
This is four-sided opening. Which means the material can go through the machine. And It can add material from any direction.
Electronic lifting
The machine can automatically adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.
Taiwan Hiwin Linear Guide Rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
Japan OMRON
Japan OMRON Electronic Component, Long service life, stable operation.
Red light positioning
Easy to cut and position when carving; can first walk, can clearly mark the path of the laser engraving machine, identify the positioning size.
Water chiller CW5000
Long service life, stable operation. Cooling effect is good. The water chiller controls the laser's operating temperature so that the laser machine can work efficiently for a long time.
Lead shine Stepper Motor
Lower noise, low vibration, running more smoothly, higher torque, higher acceleration, higher precision, better acceleration performance.
Packing & Delivery
Wooden package
