Quick Details
-
Brand Name:
-
HENGTUO
-
Weight:
-
700kgs
-
Dimension(L*W*H):
-
1400*1100*1100mm
-
Certification:
-
CE
-
Usage:
-
rewind slit stretch film
-
Name:
-
PE stretch film rewinding slitter
-
Motor Power:
-
1.5kw
-
Roll laying mode:
-
by hand
-
Speed:
-
400m/min
-
Jumbo roll width and diameter:
-
500mm 3inch diameter
-
Sub roll Min width:
-
30mm
-
Machine Color:
-
gray&white or orange&white or customized
-
Sub roll diameter:
-
3inch, optional 2 inch 1.5inch or customized
Quick Details
-
Voltage:
-
380V or customized
-
Power:
-
1.5kw
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HENGTUO
-
Weight:
-
700kgs
-
Dimension(L*W*H):
-
1400*1100*1100mm
-
Certification:
-
CE
-
Usage:
-
rewind slit stretch film
-
Name:
-
PE stretch film rewinding slitter
-
Motor Power:
-
1.5kw
-
Roll laying mode:
-
by hand
-
Speed:
-
400m/min
-
Jumbo roll width and diameter:
-
500mm 3inch diameter
-
Sub roll Min width:
-
30mm
-
Machine Color:
-
gray&white or orange&white or customized
-
Sub roll diameter:
-
3inch, optional 2 inch 1.5inch or customized

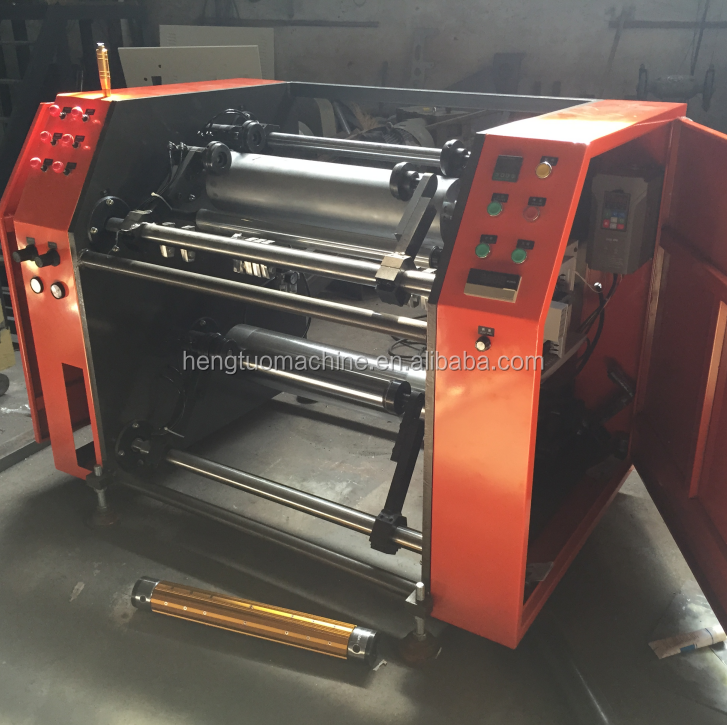

HT-500 PE Stretch Film Rewinding Slitter # Stretch Film Rewinding Slitting Machine # Stretch Film Slitting Machine
Use
It is a kind of multi-functional machine integrated with slitting and rewinding. It mainly slits large-sized stretch film into small ones which avoids the split-level film and improves
the technical index of product ,such as level and appearance quality e tc .
Main Technical Variables
|
Item |
HTS -500 |
HTS -1000 |
HTS -1300 |
|
Width of finished products(mm) |
500 |
1000 |
1300 |
|
Power of motor(kw) |
1.5 |
3 |
3 |
|
Linear speed of machinery(m/min) |
400 |
400 |
400 |
|
Roll laying mode |
By hand |
By hand |
By hand |
|
Diameter of parent roll(max)mm |
φ400 |
φ400 |
φ400 |
|
Width of parent roll(max)mm |
500 |
1000 |
1300 |
|
Core specification of parent roll |
3 " |
3 " |
3 " |
|
Width of sub-roll(mm) |
500 |
1000 |
1300 |
|
Diameter of sub-roll(max)mm |
φ300 |
φ300 |
φ300 |
|
Core specification of sub-roll |
3 " ,2 " |
3 " ,2 " |
3 " ,2 " |
|
Overall dimensions (L*W*H)(m) |
1.4*1.1*1.1 |
1.9*1.1*1.1 |
2.2*1.3*1.1 |
|
Weight(kg) |
700 |
1000 |
1200 |
