Quick Details
-
Engine:
-
Great energy150CC air-cooled engine
-
Fuel tank capacity:
-
7L
-
Weight:
-
350kgs
-
Passenger Capacity:
-
4 (2+2)
-
Max. Speed:
-
40-45km/h
-
range:
-
80-100km
-
Tire:
-
8inch Irion wheel
-
Color:
-
white,red,blue,green,yellow;accept customized colors
Quick Details
-
Dimension:
-
2900*1250*2050mm(L*W*H)
-
Product name:
-

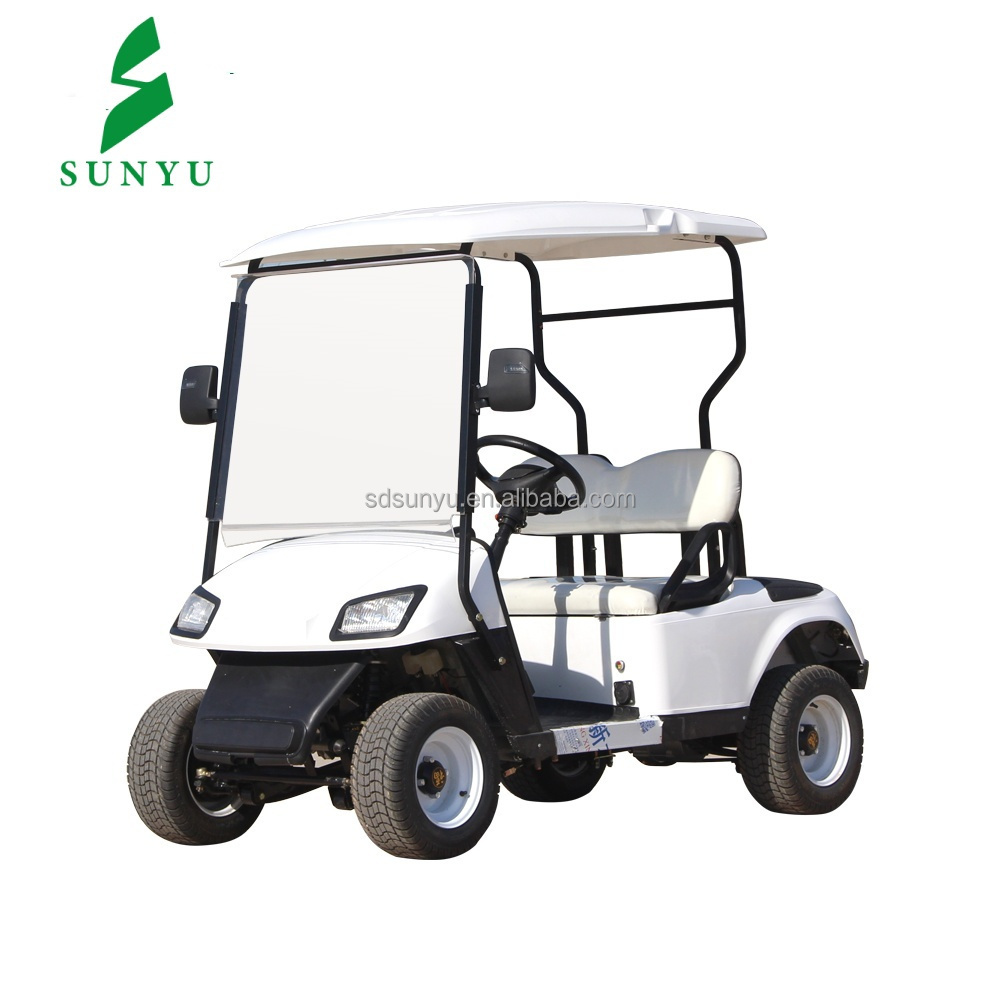

SY-GF-A22 2+2 Seat golf cart
-
Size:
-
22300*1250*1850mm(L*W*H)
-
Engine:
-
Great energy150CC air-cooled engine
-
Fuel tank capacity:
-
7L
-
Weight:
-
350kgs
-
Passenger Capacity:
-
4 (2+2)
-
Max. Speed:
-
40-45km/h
-
range:
-
80-100km
-
Tire:
-
8inch Irion wheel
-
Color:
-
white,red,blue,green,yellow;accept customized colors
Colors moke electric car golf carts gas powered gasoline off road golf cart wheels and tires buggy for sale
Specification
|
Vehicle mode
|
SY-GF-A22
|
|
|
Size（L*W*H）
|
2300*1250*1850mm
|
|
|
Passenger/seats
|
2+2 people
|
|
|
Max Speed
|
40-45Km/h
|
|
|
Min.ground clearance
|
≥196
|
|
|
Min. turning radius
|
≤4m
|
|
|
Braking distance
|
≤3m
|
|
|
Gradeability
|
25℃
|
|
|
Curb weight
|
350kg
|
|
|
Bear weight
|
450kg
|
|
|
Wheel track
|
855/955mm
|
|
|
Wheel base
|
1850mm
|
|
|
Engine
|
Great energy 150CC air-cooled engine
|
|
|
Gear Box
|
infinitely variable speeds
|
|
|
Fuel tank capacity
|
7L
|
|
|
Gear
|
D/N/R ((shaft drive shift)
|
|
|
Drive system
|
Stepless speed control system
|
|
|
Turning system
|
Automatic adjustment of rack and pinion steering machine
|
|
|
Front axle Suspension
|
Independent suspension + coil spring + cylinder type hydraulic shock absorption
|
|
|
Rear axle Suspension
|
Integral full floating rear axle, high strength leaf spring, cylinder type hydraulic shock absorption
|
|
|
Braking system
|
Front disc rear hub four wheel oil brake, parking brake device
|
|
|
8Tyre
|
10 inch aluminum wheels
|
|
|
Front windshield
|
unfolded
|
|
|
Body
|
High strength corrosion resistance long life PPC engineering plastic molded parts body, international brand DuPont automotive
special paint |
|
|
Instrument
|
Stainless steel instrument (including front and rear commutation, light, horn, power display meter)
|
|
|
Rear mirror
|
Left and right manual external mirrors
|
|
|
Light & Signal
|
Combined headlights, turn signals, combined rear lights, electric horn and reversing buzzer
|
|
|
Seat Material
|
(Single row double large flat or color matching seat + leather fabric + high rebound PU with armrest + seat belt)
|
|
|
Instrument board
|
combination instrument
|
|
|
Switch
|
Start switch, light switch, forward and backward gear switch, warning light
|
|
|
Chassis
|
Thickening national standard steel chassis high strength square steel welding optimization rust resistant paint treatment
|
|
|
Rear view camera
|
yes
|
|
|
Body material
|
LCD touch screen combination instrument (including power display meter, speed display meter, music system, Bluetooth, speaker,
USB, reverse image, etc.) |
|
|
Rear specification
|
Folding 2-in-1 with ice bucket (storage)
|
|
|
Body color
|
White/yellow/gold/green/support custom colors
|
|
|
Pcs/40HQ(container)
|
18
|
|
|
|
40HQ
|
|
|
option
|
Great energy 200CC/300CC air-cooled engine
|
|
|
|
15L Fuel tank capacity
|
|
|
|
Front bumper /front luggage bucket/back luggage bucket
|
|
|
|
Left and right side pedal
|
|
|
|
LED with lights left and right mirrors
|
|
|
|
Tire: 1) 12 or 14inch aluminum wheels 2) off-road tire
|
|
|
|
Ice box, sand bottle
|
|
|
|
ball washer
|
|
|
|
Rain curtain or Sunshine curtain
|
|
|
Accept customized logo,colors and other as customers'requirement
|
|
|
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We accept customized golf carts as your requirements .
