Quick Details
-
Name:
-

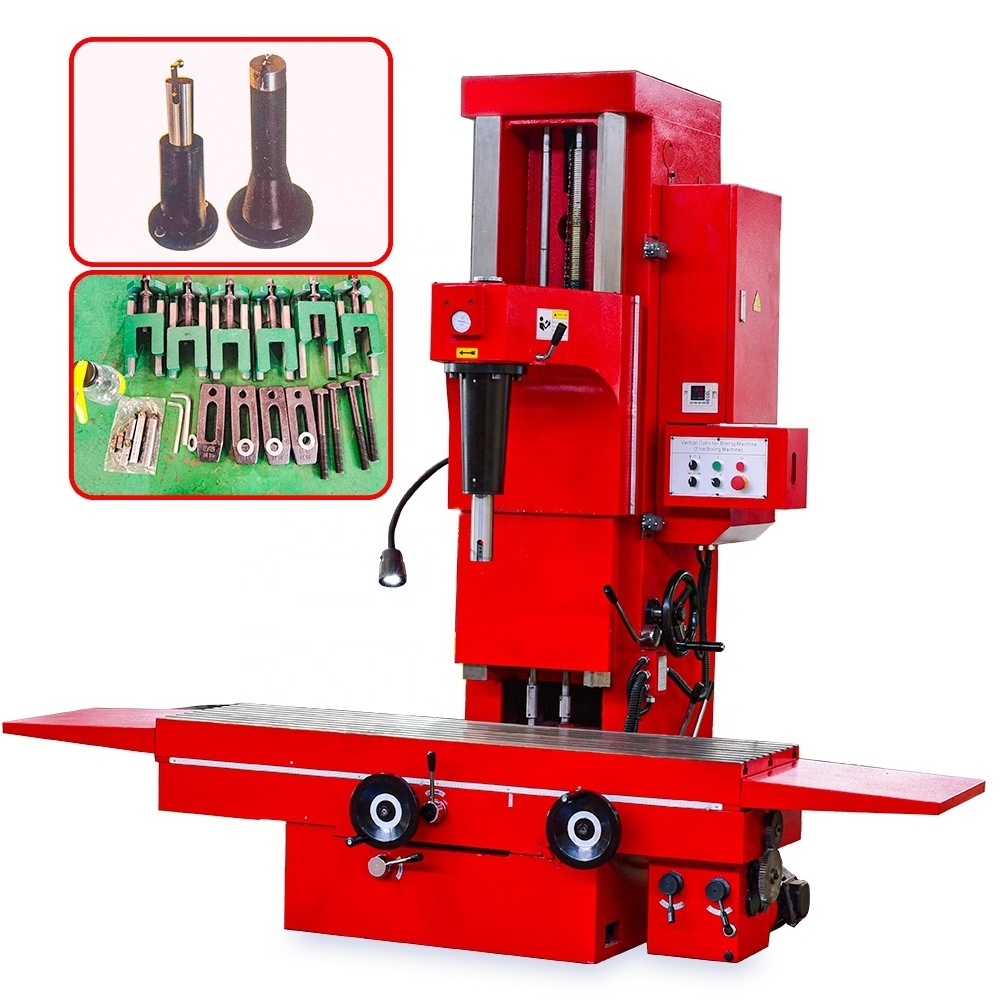

Fine Vertical Cylinder Boring Machine
-
Model:
-
T8018C
-
Boring Diameter (mm):
-
42- 180 mm (with optional accessories)
-
Max Boring Depth(mm):
-
650mm
-
Spindle Speed(R/Min):
-
175, 230, 300, 350, 460, 600
-
Spindle Feed(mm/r):
-
0.05, 0.10, 0.20
-
Main Motor (kw):
-
3.3 / 4.0
-
Motor power:
-
1.5kw
-
Net / Gross weight (kgs):
-
3500 / 3700
-
Package Size L*W*H (mm):
-
1600*1910*2575
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JN Quality CNC
-
Warranty:
-
2 Years
-
Name:
-
Fine Vertical Cylinder Boring Machine
-
Model:
-
T8018C
-
Boring Diameter (mm):
-
42- 180 mm (with optional accessories)
-
Max Boring Depth(mm):
-
650mm
-
Spindle Speed(R/Min):
-
175, 230, 300, 350, 460, 600
-
Spindle Feed(mm/r):
-
0.05, 0.10, 0.20
-
Main Motor (kw):
-
3.3 / 4.0
-
Motor power:
-
1.5kw
-
Net / Gross weight (kgs):
-
3500 / 3700
-
Package Size L*W*H (mm):
-
1600*1910*2575
Factory Direct Engine HoleT8018C T8018D Fine Vertical Cylinder Boring Machine
|
1
|
Name
|
Vertical Cylinder Boring Machine
|
|
2
|
Model
|
T8018C
|
|
3
|
Boring Diameter (mm)
|
Φ 42- Φ 180 mm (with optional accessories)
|
|
4
|
Max Boring Depth(mm)
|
650mm
|
|
5
|
Spindle Speed(R/Min)
|
0.05, 0.10, 0.20
|
|
6
|
Main Motor (kw)
|
3.3 / 4.0
|
|
7
|
Net / Gross weight (kgs)
|
3500 / 3700kgs
|
|
8
|
Machine size (L*W*H)
|
2690*1500*2325mm
|
|
9
|
Package size (L*W*H)
|
1600*1910*2575mm
|
|
10
|
Producting time‘
|
3-20 days
|
|
11
|
Warranty
|
2 years (no man-made reasons)
|
|
12
|
Electrical power
|
380v, 3ph, 50/60hz or 220v,1ph,50/60hz
|
|
13
|
Standard accessories
|
1). 2 boring heads with ø56mm and with ø75mm (or boring heads with ø60mm and with ø90mm);
2). 4 cutters;
3). 6 adjustable foot pads;
4). 2 wrenches and 1 oiler.
|
|
14
|
Optional accessories
|
1). Milling-surface head;
2). 30 °and 45 ° V-type fixture;
3). Parallel bracket;
4). Quick fixture;
5). Tooling gauge;
6). Boring heads with ø30mm;
7). Boring heads with ø40mm;
8). Boring heads with ø120mm.
|
