- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
A4
-
Type:
-
Hand switch
-
Power:
-
60W
-
Sensing Range:
-
6mm, 0CM
-
Product Name:
-
IR Hand Wave Switch
-
Input/Output Voltage:
-
12VDC
-
Max Load:
-
5A
-
Input/Output Cable:
-
Length 15cm
-
Product color:
-
Black Available
-
Support mirror thickness:
-
1-5mm mirror
-
Product size:
-
66*62*12mm
-
Certification:
-
CE/ROHS/FCC
Quick Details
-
Voltage:
-
DC12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HH
-
Model Number:
-
A4
-
Type:
-
Hand switch
-
Power:
-
60W
-
Sensing Range:
-
6mm, 0CM
-
Product Name:
-
IR Hand Wave Switch
-
Input/Output Voltage:
-
12VDC
-
Max Load:
-
5A
-
Input/Output Cable:
-
Length 15cm
-
Product color:
-
Black Available
-
Support mirror thickness:
-
1-5mm mirror
-
Product size:
-
66*62*12mm
-
Certification:
-
CE/ROHS/FCC
Contact us!! Get the
Discount
!!
TIPS:
1. Support OEM/ODM customization service!! Welcome to contact us ! 2. Support free sample, need sample to send inquiry to contact us ! 3. 3-Year Warranty. 4. There are special offers now. You can get them by sending an inquiry!
1. Support OEM/ODM customization service!! Welcome to contact us ! 2. Support free sample, need sample to send inquiry to contact us ! 3. 3-Year Warranty. 4. There are special offers now. You can get them by sending an inquiry!
Free Samples/ Manufacturer/ Low MOQ
Products Description

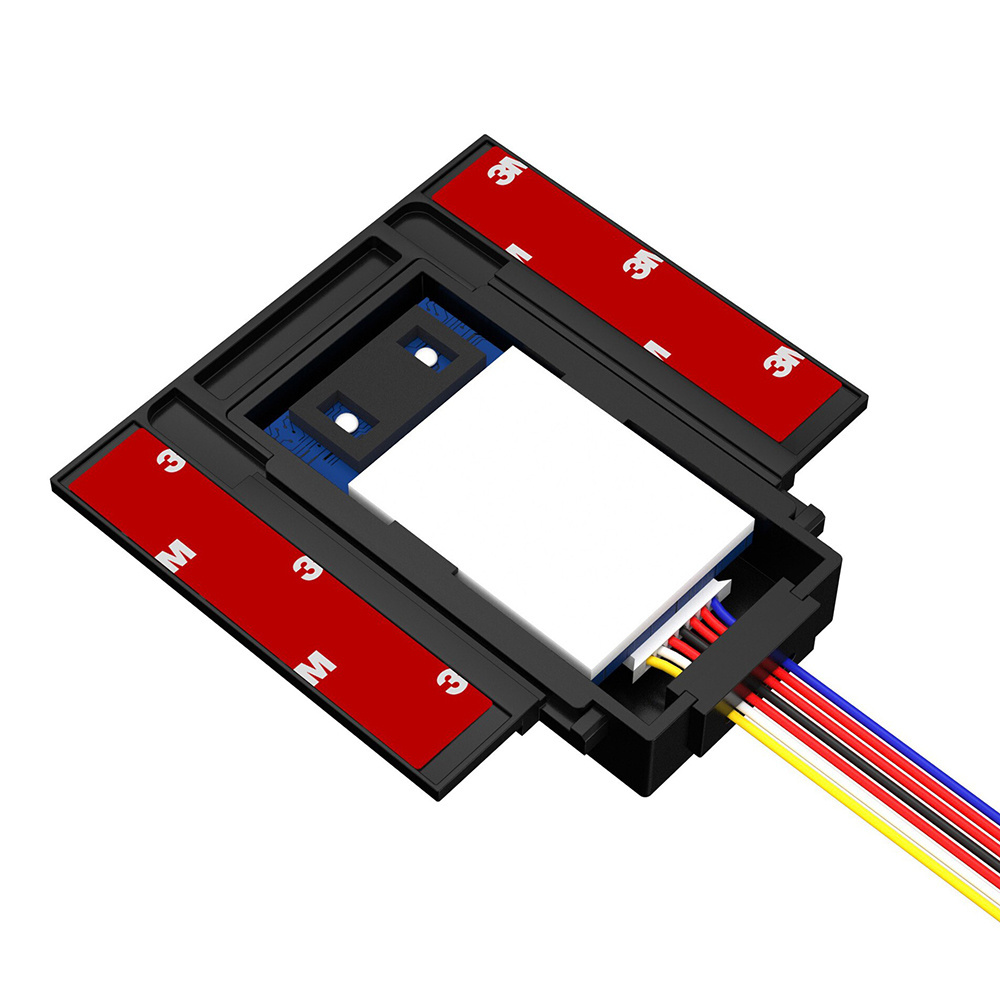

The Infrared Red Motion Hand Dimmer Switch, it's located underneath cabinet on right hand side for operating the LED lights which needs a clear area of 15cm to operate effectively.
The
Hand Sweep Infrared Sensor Switch
is a touchless switch. When you swap your hand in front of the sensor, the switch is on and when you swap your hand for the second time, the switch is off. Hold your hand over the sensor, light dimming. The sensor is very useful in public use where people do not have to touchthe same place with hand reducing the spread of virus.
The
smart hand wave switch
is used to turn on / off
12V LED lamps
with power up to
60W
.
The switch is equipped with a
direct on / off
function.
|
Product Name
|
Infrared Hand Dimmer Sensor Switch
|
|
|
|
|||
|
Function
|
ON/OFF + Dimming, Color Adjustable + Dimming, ON/OFF +Dimming+Anti-fog, Color Adjustable + Dimming+Anti-fog
|
Color Adjustable + Dimming
|
ON/OFF +
Dimming+Anti-fog |
Color Adjustable + Dimming+Anti-fog
|
|||
|
Working Voltage
|
12VDC
|
|
|
|
|||
|
Max Load
|
5A 60W Max
|
|
|
|
|||
|
Indicator Light
|
On(Blue); Off(White)
|
|
|
|
|||
|
Cable Length
|
Input: 20CM；Output: 20CM
|
|
|
|
|||
|
Dimension
|
66 x 62 x 12MM
|
|
|
|
|||
|
Support Mirror Thickness
|
≤ 5MM
|
|
|
|
|||
|
Detection Range
|
≤ 15CM
|
|
|
|
|||
NOTE!
Touch switches are demanding on the quality of the power source. Before buying a power supply, be sure to consult with our manager. The manager will select for you a power source that is guaranteed to be compatible with the sensor you have chosen.
Incorrect selection of the power supply may result in the failure of the sensor (this is not a warranty case).
NOTE!
Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct installation and operability, it is recommended to
fix the fixing plate additionally with the help of glue-sealant for mirrors or glue for a heat gun.
