- Product Details
- {{item.text}}
Quick Details
-
Core Components:
-
None
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Dimension(L*W*H):
-
2286x1143x1321mm
-
Weight:
-
824
-
Product Name:
-
Storage Tank
-
Material:
-
Carbon Steel
-
Storage Medium:
-
fuel/oil/petrol/ diesel/coolant/etc.
-
Storage Capacity:
-
1000 -10000Liters
-
Wall:
-
Double
-
Test Pressure:
-
35Mpa
-
Thickness:
-
4mm
-
Color:
-
Customers' Demands
-
Keywords:
-
Liquid Cylinders
-
Application:
-
Chemcial Storage
Quick Details
-
Capacity:
-
2000L
-
Max Working Pressure(MPa):
-
0 MPa
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
None
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUMAC
-
Dimension(L*W*H):
-
2286x1143x1321mm
-
Weight:
-
824
-
Product Name:
-
Storage Tank
-
Material:
-
Carbon Steel
-
Storage Medium:
-
fuel/oil/petrol/ diesel/coolant/etc.
-
Storage Capacity:
-
1000 -10000Liters
-
Wall:
-
Double
-
Test Pressure:
-
35Mpa
-
Thickness:
-
4mm
-
Color:
-
Customers' Demands
-
Keywords:
-
Liquid Cylinders
-
Application:
-
Chemcial Storage

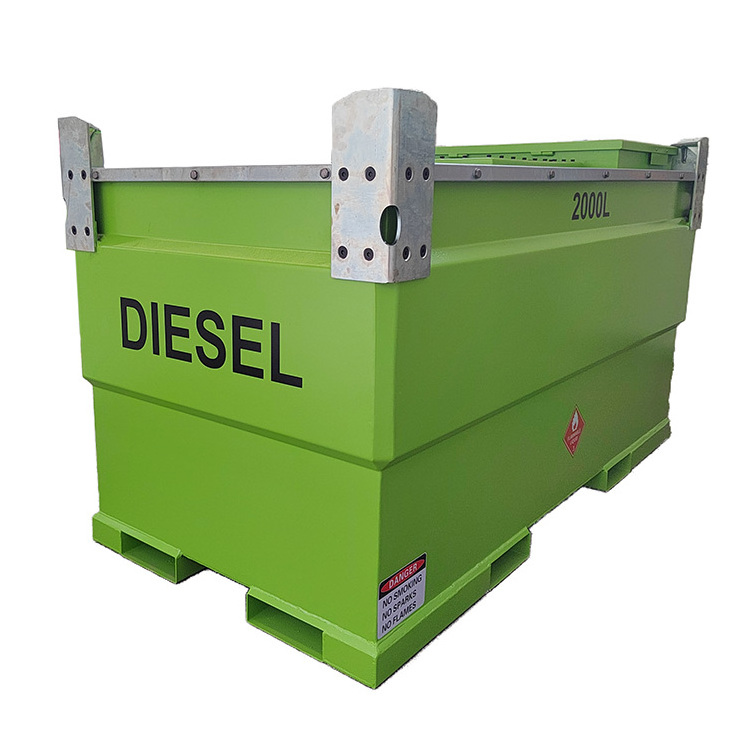

New Product Customized Double Wall 2000L Cube Fuel Oil Diesel Tank
Product Description
1.Suitable for
the storage and dispensing
of
Diesel, Petrol, Waste Oil, Waste fuel, Coolant, any liquid, other than a flammable liquid under normal temperature
.
2.
All connections are through the top and the double wall design makes them self bunded,
eliminating the chance of leakage into the environment
.
3.
Fuel tanks have
a unique outlet arrangement
that draws from the floor of the inner preventing build up of any type of sediment.Fully designed and manufactured by SUMAC, the self bunded tank
meets the industry standard for fabrication quality, and paint finish
.
4.
Rounded Rectangular tank profile, maximises storage footprint whilst maintaining full under self bunded tank visibility for
long term
tank fuel or oil
storage applications
.
Specification
|
Specification
|
NW-1000
|
NW-2000
|
NW-3000
|
NW-4000
|
NW-5000
|
||||
|
Capacity
(Normal/Safe fill (95%))
|
950/900 L
|
2090/1987 L
|
2980/2831 L
|
3785/3596 L
|
4600/4368
|
||||
|
Dimension
(LxWxH)
|
1143x1143x1321mm
|
2286x1143x1321mm
|
2286x1550x1321mm
|
2337x2337x1143mm
|
2337x2311x1321mm
|
||||
|
Weight
(Emptyl)
|
540kg
|
824
|
1100
|
1580
|
1690
|
||||
|
Testing pressure
|
35Mpa
|
|
|
|
|
||||
Comes With
· Gravity outlet valve - DN50, NPT,UL listing
· Free Vent - DN50 NPT
· Dipstick
· Fuel Gauge
· Meet strict quality standards,
CE approved
.
· All seams are welded to exacting standards.
· 2 Way forklift pockets.
· The tanks fit with SUMAC supplied free vent, gravity outlet valve and dipstick.
·
Stackable
, and with 1pc lockable lids and maintenance hole.
· Optional (Red, Greed, Yellow, Black, Orange) sticker, made by customer's design. We can also
customize
logo according to customer needs.
· Designed to be
stacked
for storage and transport empty.
· Can be lifted via forklift to ensure
ease of access and maneuverability
, as well as lifting eyes at each corner.
·
Removable lid
- Easy maintenance and cleaning of carbon steel inner tank.
Customer' project installation
