Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
7910*3016*3515mm
-
Machine Weight:
-
16900 kg
-
Bucket capacity:
-
2.5~4.5m3
-
Wheel base:
-
2960mm
-
Max.breakout force:
-
170kN
-
Min. turning radius:
-
5950mm
-
Gradeability:
-
28%
Quick Details
-
Engine Brand:
-
Famous brand
-
Power:
-
162kW
-
Brand Name:
-
XCMG
-
Place of Origin:
-
Jiangsu, China
-
Dimension(Long * Breadth * High):
-
7910*3016*3515mm
-
Machine Weight:
-
16900 kg
-
Bucket capacity:
-
2.5~4.5m3
-
Wheel base:
-
2960mm
-
Max.breakout force:
-
170kN
-
Min. turning radius:
-
5950mm
-
Gradeability:
-
28%
Products Description

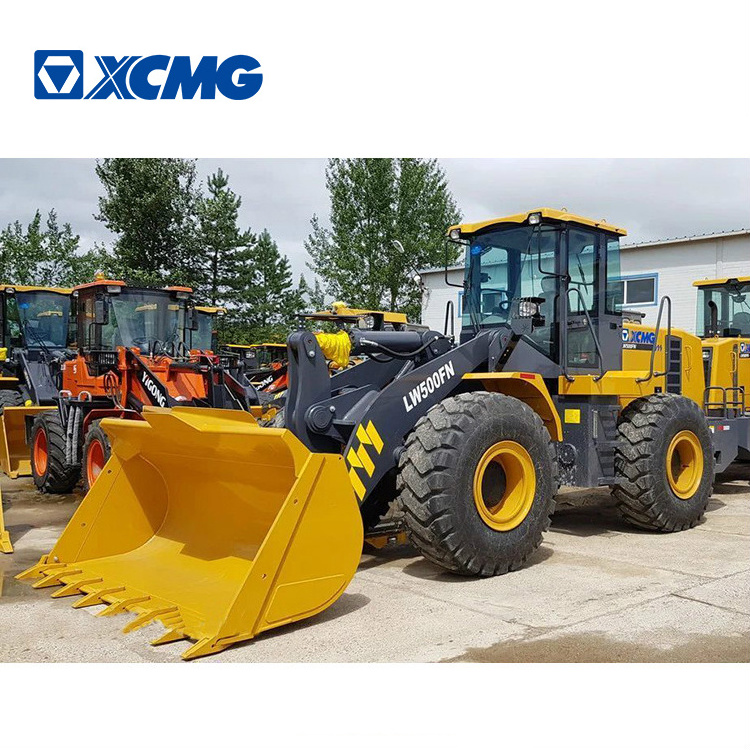

XCMG Brand 5 Ton Front Loader Machine LW500FN Used Wheel Loader
.
XCMG 5 ton used wheel loader LW500FN can be equipped with WEICHAI engine;
The max working weight is 20000kg, the weight of the whole machine is 17000kg;
The rated operating load is 5000kg, and the rated power is 162kw.
XCMG front wheel loader 5 ton LW500FN new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.
Specification
|
Description
|
|
Unit
|
Parameter value
|
|
|
Rated operating load
|
|
kg
|
5000
|
|
|
Bucket capacity
|
|
m³
|
2.5～4.5
|
|
|
Machine weight
|
|
kg
|
16900
|
|
|
Dump clearance at maximum lift
|
|
mm
|
3150～3560
|
|
|
Reach at maximum lift
|
|
mm
|
1100～1190
|
|
|
Wheel base
|
|
mm
|
2960
|
|
|
Tread
|
|
mm
|
2250
|
|
|
Height of hinge at maximum lift height
|
|
mm
|
4112
|
|
|
Working height(fully lifted)
|
|
mm
|
5510
|
|
|
Max.breakout force
|
|
kN
|
170
|
|
|
Hydraulic cycle time-raise
|
|
s
|
≤6
|
|
|
Total hydraulic cycle time
|
|
s
|
≤10.5
|
|
|
Min. turning radius over tyres
|
|
mm
|
5950
|
|
|
Articulation angle
|
|
°
|
35
|
|
|
Gradeability
|
|
°
|
28
|
|
|
Tyre size
|
|
|
23.5-25-16PR
|
|
|
Overall machine dimension L×W×H
|
|
mm
|
7910×3016×3515
|
|
|
Model
|
|
|
WD10G220E21
|
|
|
Rated Power
|
|
kW
|
162
|
|
|
Fuel Tank
|
|
L
|
250
|
|
|
Hydraulic Tank
|
|
L
|
210
|
|
|
Travel Speed
|
Ⅰ-gear(F/R)
|
km/h
|
13/18
|
|
|
|
Ⅱ-gear(F/R)
|
km/h
|
40
|
|
