Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BOTA
-
Dimension(L*W*H):
-
920*450 *746MM
-
Weight:
-
145
-
Rated power/speed:
-
11.03KW/2200
-
Product name:
-
10hp 15hp 18hp 20hp 24hp 28hp 30hp Small ZS1115 Diesel Engine
-
Brand:
-
OEM
-
Certification:
-
ISO9001
-
Rated Power:
-
15hp /11.03kw
-
Application:
-
tractor /farm machinery/industry machinery
-
Starting system:
-
Hand Crank or electric start
-
Engine type:
-
Water-cooled 4-stroke single cylinder
-
Quality:
-
Guaranteed
-
Model Number:
-
ZS1100
-
Packing:
-
Plywood box
Quick Details
-
Displacement:
-
0.903L
-
Emission Standard:
-
Euro 2
-
Power:
-
15HP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BOTA
-
Dimension(L*W*H):
-
920*450 *746MM
-
Weight:
-
145
-
Rated power/speed:
-
11.03KW/2200
-
Product name:
-
10hp 15hp 18hp 20hp 24hp 28hp 30hp Small ZS1115 Diesel Engine
-
Brand:
-
OEM
-
Certification:
-
ISO9001
-
Rated Power:
-
15hp /11.03kw
-
Application:
-
tractor /farm machinery/industry machinery
-
Starting system:
-
Hand Crank or electric start
-
Engine type:
-
Water-cooled 4-stroke single cylinder
-
Quality:
-
Guaranteed
-
Model Number:
-
ZS1100
-
Packing:
-
Plywood box

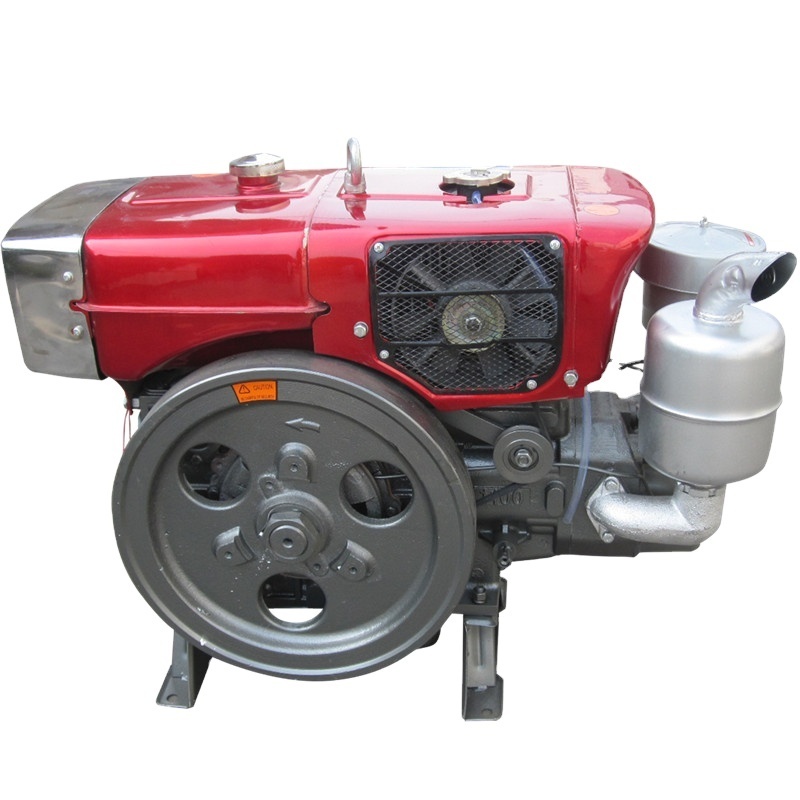

Diesel Engine 10hp 15hp 18hp 20hp 24hp 28hp 30hp Small ZS1115 Diesel Engine
Main feature:
- The new design appearance , Make the engines more beautiful
- Large capacity fuel tank
- Single balance axle let the engines work more stable
- Specific fuel is low , the engine work more economically
- Excellent start ability ,more easy start
- Oil bath air-filter makes the engine more suitable to the bad circumstance .
Highlight:
Our the engines are popular in the market at present , widely use in different field .
Main use in farm and industry field:
Mini tractor , cultivator , transportation vehicle in agricultural, Small generating sets , air –compressor, inland ships, engineering machinery and processing machines for agricultural products and sideline products( eg. Threshing machine, milling machine, grinding machine, feed mill machine) ,and so on.
|
Model |
ZS1100 N M |
|
Type |
single cylinder ,horizontal,4 stroke, water cooling, D irect injection |
|
Stroke ( mm ) |
115 |
|
Bore ( mm ) |
10 0 |
|
(Total isplacement)L |
0.903 |
|
(Compression ratio) |
17 : 1 |
|
12hour rated output ( KW) |
11.03 |
|
12hourrated output ( r/min) |
2 2 00 |
|
Specific fuel consumption g/( kw. h ) |
≤256 |
|
Specific lube oil consumption g/( kw.h ) |
≤2.72 |
|
Start |
Hand start and electric start |
|
Lubrication system |
(Pressure/splash) |
|
Cooling syetem |
E vaporative ,condensation |
|
Net weight kg |
150 |
|
Overall dimension mm |
857 497 675 |
|
Package WOOD CASE |
96 |
|
Lube oil capacity Water tank C apacity Fuel tank capacity |
4 3.5 12 |
