Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Mate solar
-
Model Number:
-
182MM MT5 MS425W-54H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 x 1134 x 30mm
-
Keyword:
-
108 cells
-
Weight:
-
20.5kg
-
Front Side Glass:
-
High transparency solar glass 3.2mm
-
Backsheet:
-
Black
-
Frame:
-
Black, anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cables:
-
4.0mm2, Portrait: 300mm / Landscape: 1200mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
OEM Order:
-
Acceptable OEM
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
Mate solar
-
Model Number:
-
182MM MT5 MS425W-54H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722 x 1134 x 30mm
-
Keyword:
-
108 cells
-
Weight:
-
20.5kg
-
Front Side Glass:
-
High transparency solar glass 3.2mm
-
Backsheet:
-
Black
-
Frame:
-
Black, anodized aluminium alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cables:
-
4.0mm2, Portrait: 300mm / Landscape: 1200mm
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
OEM Order:
-
Acceptable OEM

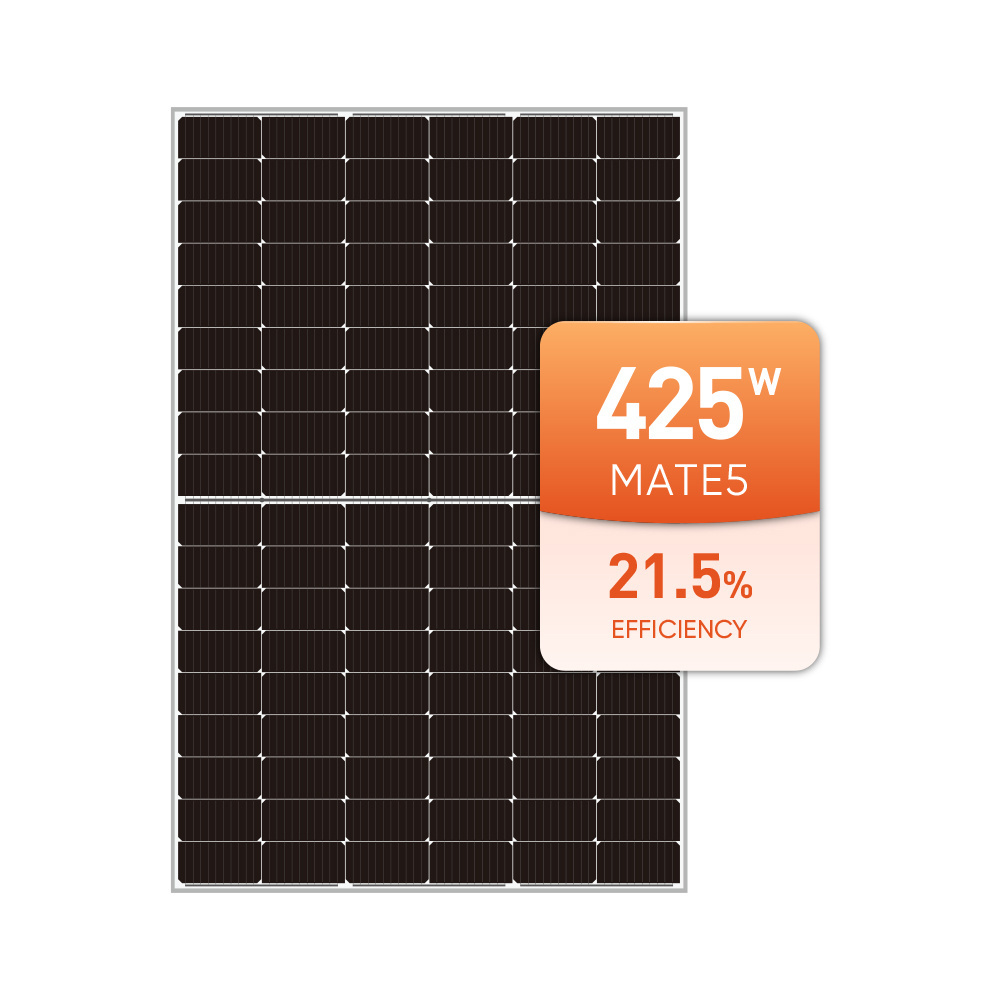

Mate Solar Panel
|
Maximum Power (Pmax/W)
|
405
|
410
|
415
|
420
|
425
|
||||
|
Maximum Power Voltage (Vmp/V)
|
30.52
|
30.62
|
30.72
|
30.82
|
30.92
|
||||
|
Maximum Power Current (Imp/A)
|
13.27
|
13.39
|
13.51
|
13.63
|
13.75
|
||||
|
Open Circuit Voltage (Voc/V)
|
37.06
|
37.14
|
37.22
|
37.30
|
37.38
|
||||
|
Short Circuit Current (Isc/A)
|
13.85
|
13.92
|
13.99
|
14.06
|
14.13
|
||||
|
Module Efficiency (%)
|
20.75
|
21.00
|
21.26
|
21.51
|
21.76
|
||||
|
Power Output Tolerance (W)
|
0~+5W
|
|
|
|
|
||||
|
Temperature Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
||||
|
Temperature Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
||||
|
Temperature Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
||||
