Quick Details
-
Type:
-
RC
-
Insulation:
-
FB/PVC/TF/SC/KAPTON
-
Color:
-
IEC, ANSI, JIS, etc.
-
Flexibility:
-
GOOD
-
Abrasion resistance:
-
GOOD
-
Conductor:
-
PtRh30-PtRh6
-
Product name:
-
TOPRIGHT thermocouple wire
-
MOQ:
-
100M
-
usage:
-
temperature sensing
-
Size:
-
0.4/0.45/0.5mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TOPRIGHT
-
Model Number:
-
RC
-
Type:
-
RC
-
Insulation:
-
FB/PVC/TF/SC/KAPTON
-
Color:
-
IEC, ANSI, JIS, etc.
-
Flexibility:
-
GOOD
-
Abrasion resistance:
-
GOOD
-
Conductor:
-
PtRh30-PtRh6
-
Product name:
-
TOPRIGHT thermocouple wire
-
MOQ:
-
100M
-
usage:
-
temperature sensing
-
Size:
-
0.4/0.45/0.5mm
Specifications
1)thermocouple compensating cable
2)IEC standard
Description:
Thermocouple` wire is wire compensation for thermocouples and second (base) of the instrument signal transmission, to the elimination of thermocouple cold junction temperature measurement error caused by the change to ensure that the instrument on medium temperature measurement accuracy, applicable to the power, metallurgical, oil, chemical, textile and other industrial and national defense research departments automation Thermometer single point or multi-point connection.
I nsulation and sheath can be customized according to customer requirment !
Thermocouple wire technical indicators:
| Model | Graduation | Equipped with thermocouple | Compensation wire alloy wires | ||
| Cathode | Anode | Color | |||
| BC | B | PtRh30-PtRh6 | Cu | Cu | Follow standard:BS/ANSI/DIN/JISC |
| SC | S | PtRh10-Pt | SPC(Cu) | SNC(Cu-Ni0.6) | |
| RC | R | Pt-Rh3-Pt | RPC(Cu) | RNC(Cu-Ni0.6) | |
| KCA | K | NiCr-NiSi |
KPCA(Fe)
|
KNCA(Cu-Ni22) | |
| KCB |
KPCB(Cu)
|
KNCB(Cu-Ni40) | |||
| KX | KPX(Ni-Cr-Si14) | KNX(Ni-Si4) | |||
| NC | N | NiCrSi-SiNi |
NPC(Fe)NPC (railways) |
NNC(Cu-Ni18) | |
| EX | E | SiNi-CuNi | EPX(NiCr10) | NNX(Ni-Si4) | |
| JX | J | Fe-CuNi | JPX(Fe) | JNX(Cu-Ni45) | |
| TX | T | Cu-CuNi | TPX(Cu) | TIPS(Cu-Ni45) | |
| WC3/25 | WRe3-WRe25 | WRe3-WRe25 | WPC3/25 | WNC3/25 | |
| WC5/26 | WRe5-WRe26 | WRe5-WRe26 | WPC5/26 | WPC5/26 | |
Thermocouple wire Insulation detail:
Thermocouple Color standard:

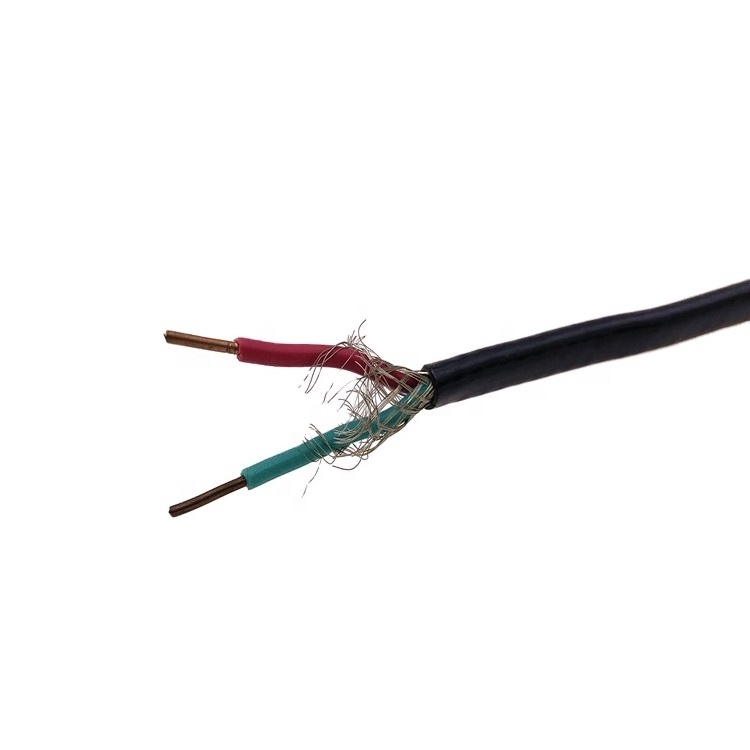

Thermocouple wire/cable photo:
