SUN 3.6/6K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DEYE
-
Model Number:
-
SUN-5K-SG03LP1-EU
-
Input Voltage:
-
370V
-
Output Voltage:
-
220/230Vac
-
Output Current:
-
21.7A
-
Output Frequency:
-
50/60Hz, 50/60Hz
-
Size:
-
330x580x232mm
-
Certificate:
-
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097
-
Warranty:
-
5 YEARS, 5 years
-
Weight:
-
25kg
-
Keyword:
-
Solar Inverter for Renewable Energy
-
Max. AC Input/Output Apparent Power (VA):
-
5500
-
Max. input current:
-
21.7A
-
Grid Type:
-
Single Phase
-
Battery Type:
-
Lead-acid or Lithium-ion
-
Charging Strategy for Li-ion Battery:
-
Self-adaption to BMS
-
No.of MPPT Trackers:
-
2
-
Installation Style:
-
Wall-mounted
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.60%
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DEYE
-
Model Number:
-
SUN-5K-SG03LP1-EU
-
Input Voltage:
-
370V
-
Output Voltage:
-
220/230Vac
-
Output Current:
-
21.7A
-
Output Frequency:
-
50/60Hz, 50/60Hz
-
Size:
-
330x580x232mm
-
Certificate:
-
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097
-
Warranty:
-
5 YEARS, 5 years
-
Weight:
-
25kg
-
Keyword:
-
Solar Inverter for Renewable Energy
-
Max. AC Input/Output Apparent Power (VA):
-
5500
-
Max. input current:
-
21.7A
-
Grid Type:
-
Single Phase
-
Battery Type:
-
Lead-acid or Lithium-ion
-
Charging Strategy for Li-ion Battery:
-
Self-adaption to BMS
-
No.of MPPT Trackers:
-
2
-
Installation Style:
-
Wall-mounted

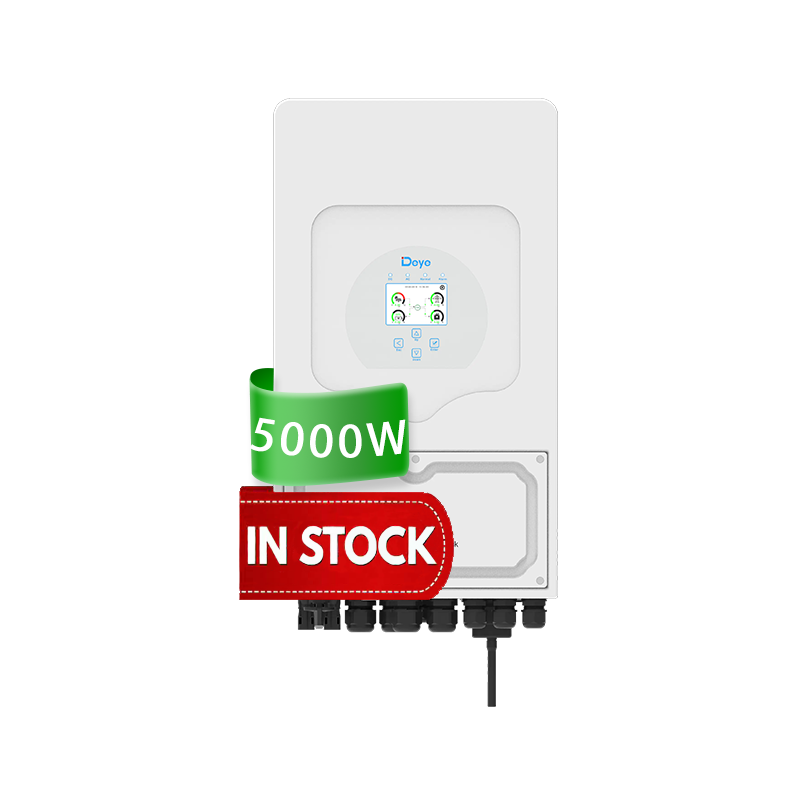

SUN-5K-SG03LP1-EU 5Kw Solar Inverter DC to AC Power Inverters Solar Inverter for Renewable Energy
Product Introduction
SUN-5K-SG03LP1-EU 5Kw Solar Inverter DC to AC Power Inverters Solar Inverter for Renewable Energy
SUN-3.6/5/6K-SG03LP1-EU | 3.6-6kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported
It equipped with RS485/CAN port for battery communication.
The SUN-3.6/5/6K-SG03LP1-EU not only offers ultimate versatility and flexibility, but also has the reliability and safety standards to meet a wide range of photovoltaic inspections – making it an ideal solution for solar applications and investments .
Product Paramenters
|
Model
|
SUN-3.6K-SG03LP1-EU
|
SUN-5K-SG03LP1-EU
|
SUN-6K-SG03LP1-EU
|
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|||
|
Battery Voltage Range (V)
|
40-60
|
|
|
|||
|
Max. Charging Current (A)
|
90
|
120
|
135
|
|||
|
Max. Discharging Current (A)
|
90
|
120
|
135
|
|||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
Number of Battery Input
|
1
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. PV Input Power (W)
|
4680
|
6500
|
7800
|
|||
|
Max. PV Input Voltage (V)
|
500
|
|
|
|||
|
Start-up Voltage (V)
|
125
|
|
|
|||
|
MPPT Voltage Range (V)
|
150-425
|
|
|
|||
|
Rated PV Input Voltage (V)
|
370
|
|
|
|||
|
Max. Operating PV Input Current (A)
|
13+13
|
|
|
|||
|
Max. Input Short-Circuit Current (A)
|
17+17
|
|
|
|||
|
No. of MPP Trackers/
No. of Strings per MPP Tracker |
2/1+1
|
|
|
|||
|
AC Input/Output Data
|
|
|
|
|||
|
Rated AC Input/Output Active Power (W)
|
3600
|
5000
|
6000
|
|||
|
Max. AC Input/Output Apparent Power (VA)
|
3960
|
5500
|
6600
|
|||
|
Rated AC Input/Output Current (A)
|
16.4/15.7
|
22.7/21.7
|
27.3/26.1
|
|||
|
Max. AC Input/Output Current (A)
|
18/17.2
|
25/23.9
|
30/28.7
|
|||
|
Max. Continuous AC Passthrough (grid to load) (A)
|
35
|
|
40
|
|||
|
Peak Power (off-grid) (W)
|
2 times of rated power, 10s
|
|
|
|||
|
Power Factor Adjustment Range
|
0.8 leading to 0.8 lagging
|
|
|
|||
|
Rated Input/Output Voltage / Range (V)
|
220/230 0.85Un-1.1Un
|
|
|
|||
|
Rated Input/Output Grid Frequency/Range(Hz)
|
50/45-55, 60/55-65
|
|
|
|||
|
Grid Connection Form
|
L+N+PE
|
|
|
|||
|
Total Current Harmonic Distortion THDi
|
<3% (of nominal power)
|
|
|
|||
|
DC Injection Current
|
<0.5% In
|
|
|
|||
|
Efficiency
|
|
|
|
|||
|
Max. Efficiency
|
97.6%
|
|
|
|||
|
Euro Efficiency
|
96.5%
|
|
|
|||
|
MPPT Efficiency
|
>99%
|
|
|
|||
