Quick Details
-
Horsepower:
-
150 - 250hp
-
Cargo Tank Type:
-
Chassis
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6X2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
FAW
-
Place of Origin:
-
Hubei, China
-
Size:
-
11000*2500*3200mm
-
Cargo Tank Dimension:
-
8600*2500
-
Product name:
-
FAW 6x2 flatbed truck 20 ton
-
Certificate:
-
ISO CCC
-
Color:
-
Optional
-
Drive type:
-
LHD or RHD
-
Emission standard:
-
Euro 3/4/5
-
wheelbase:
-
1900+4700mm
-
Delivery time:
-
10-30 days after payment
-
MOQ:
-
1 set
-
Port:
-
any port in china
-
Package:
-
nude or wax on Ro-Ro Ship or Bulk ship or container
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Market Segement:
-
Logistics transportation
-
Horsepower:
-
150 - 250hp
-
Cargo Tank Type:
-
Chassis
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6X2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
FAW
-
Place of Origin:
-
Hubei, China
-
Size:
-
11000*2500*3200mm
-
Cargo Tank Dimension:
-
8600*2500
-
Product name:
-
FAW 6x2 flatbed truck 20 ton
-
Certificate:
-
ISO CCC
-
Color:
-
Optional
-
Drive type:
-
LHD or RHD
-
Emission standard:
-
Euro 3/4/5
-
wheelbase:
-
1900+4700mm
-
Delivery time:
-
10-30 days after payment
-
MOQ:
-
1 set
-
Port:
-
any port in china
-
Package:
-
nude or wax on Ro-Ro Ship or Bulk ship or container
Professional export FAW 6x2 flatbed truck 20 ton
Specifications of FAW 6x2 flatbed truck 20 ton:
FAW 6x2 flatbed truck 20 ton , is also called engineering transportation truck, mainly used for long or short distance transportation of engineering machinery and undisassemble machines, such as excavator, wheel loader, harvester, paving machine, paver, road roller, engineering track, etc. It can be used for transit transport of large construction mechanical equipment of highway, municipal, farm and the building site. Flat bed truck is firm, practical, safe and reliable which can reduce transport costs and improve work efficiency. When you choose a flat bed truck, please select appropriate model according to your machinery for transport.
Product notes:
1. Our factory can produce 2 tons - 40 tons flatbed transport truck and trailer.
2. A variety of brand chassis options: Foton, CNHTC HOWO, FAW, dongfeng, shaanxi, JAC, Dayun, yuejin, KAMA ,etc.
3. Various driving type are available: left hand or right hand drive, 4 * 2, 4 * 4, 6 * 2, 6 * 4, 6 * 6, 8 * 4, etc.
4. The frame is a ladder type, and the longitudinal beam section is I-shaped. you can choose double girder or single girder.
5. Surface of the platform is low, use 5mm-8mm thick checkered steel plate which prevent engineering machinery to slip.
6. Double suspension rotary support is adopted, and the shaft material of each joint position is made of alloy steel.
7. According to the user’s requirements, we can design the frame bearing surface and install crane, box panel, hydraulic ladder to meet transportation of various special goods.
8. Factory direct sale, low price and high quality.
Our factory passed ISO9001-2008 quality system, our products all passed 3C certificate, it’s well-known products.Our company have more than 10 year professional experience.
Main parameters of FAW 6x2 flatbed truck 20 ton:
| product name: FAW 6x2 flatbed truck 20 ton | ||
| Item | detail | parameter |
| Vehicle | Model | CLW5250TPBC5 |
|
Overall dimensions (L*W*H/mm) |
11000*2500*3200 | |
| passenger allowed in cab | 3 person | |
| Gross weight(kgs) | 25000 | |
| Curb weight(kgs) | 9670 | |
| Axle load(kgs) | 6650/6850/11500 | |
| Traction system | 6*2 LHD or RHD | |
| wheel base(mm) | 1900+4700 | |
| Max speed(km/h) | 98 | |
| Chassis | Brand | China FAW GROUP |
| model | CA1250P62K1L7T3E5 | |
| Tire specification |
10.00R20 |
|
| Tire no. | 8+1(spare tire) | |
| Transmission | manual,8 forward and 1 reverse | |
| Engine | Model | BF6M2012-22E5 |
| manufacturer | Dachai | |
| fuel type | diesel | |
| Horse Power(kw/hp) | 165/220 | |
| Exhaust(ml) | 6060 | |
| Emission standard | Euro 3/4/5 | |
|
Upper Body standard configurations |
cargo platform, double - mounted ladder with double spring, 2 folding outriggers, etc | |
This parameter is just for your referance, we can produce different specification according to your demands.

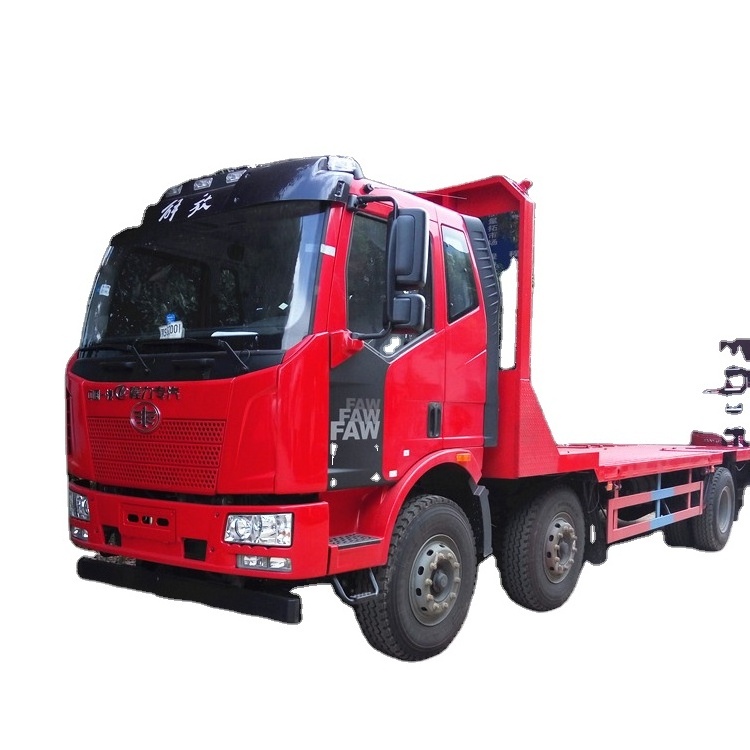

Pictures of FAW 6x2 flatbed truck 20 ton:
Pictures of flatbed transport truck series:
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
1. Factory direct supply : reliable quality and fast delivery;
2. Warranty : from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service : lifelong
4 . Chassis question : when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5 . Spare Parts : Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6 . OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7 . Warm tip : please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
CHENGLI SPECIAL AUTOMOBILE CO., LTD , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing many kinds of special trucks . Our l eading productions contain more than 300 types of trucks such as water truck, sewage suction truck, garbage truck, road sweeper, fuel tanker, chemical liquid truck, concrete mixer truck, LPG tanker, dump truck, refrigerated truck, etc . We have registered trademark "CHENLIWEI" and the products code is “ CLW ” . We have solid technology, flawless inspection, advanced equipments, reliable quality and flexible modes of operation. What's more, we have roundly passed the certification of ASME, ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007 and the China 3C Certification (China Compulsory Certification), etc.
CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company. It not only design, manufacture and test all kinds of special automobiles and fittings accurately as per the customer’s request ,but also provide all spare parts.
CHENGLI SPECIAL AUTOMOBILE CO., LTD is located in SUIZHOU City, HUBEI province, China, the native place of YANDI SHENNONG, and the Capital of Special Truck. Welcome the friends from all over the world to SUIZHOU! To our factory, you will be received the most enthusiastic reception.
1. Q:Are you manufacturer or trading company? you manufacturer or trading company?
A: We are direct manufacturer and are the well-known Special Purpose Truck manufacturer in China, our factory is located in South Suburb ChengLi Automobile Industry Park, Suizhou City, Hubei Province, it is very close to Wuhan City.
2. Q:How many is your min Order Quantity?
A: One unit or one sets;
3. Q: What is your payment term?
A: 30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
4. Q: How long is the specified delivery date from the date of order?
A: Usually it is 7-30 days, specified delivery date will depend on the detailed request.
