Quick Details
-
Brand Name:
-
ANCN
-
Model Number:
-
ACD131K
-
Max. Current:
-
1.2A
-
Control range:
-
-0.1MPa ~0~100MPa
-
control precision:
-
0.5%F.S
-
stability:
-
≤0.1%F.S/year
-
Display accuracy:
-
±0.1%F.S
-
Display method:
-
four-digit digital tube
-
Display range:
-
-1999~9999
-
Power range:
-
24V±20%
-
Maximum power consumption:
-
< 1W
-
load capacity:
-
<24V 1.2A
-
Response time:
-
≤5ms
-
Certification:
-
null
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ANCN
-
Model Number:
-
ACD131K
-
Max. Current:
-
1.2A
-
Control range:
-
-0.1MPa ~0~100MPa
-
control precision:
-
0.5%F.S
-
stability:
-
≤0.1%F.S/year
-
Display accuracy:
-
±0.1%F.S
-
Display method:
-
four-digit digital tube
-
Display range:
-
-1999~9999
-
Power range:
-
24V±20%
-
Maximum power consumption:
-
< 1W
-
load capacity:
-
<24V 1.2A
-
Response time:
-
≤5ms
-
Certification:
-
null
Products Description

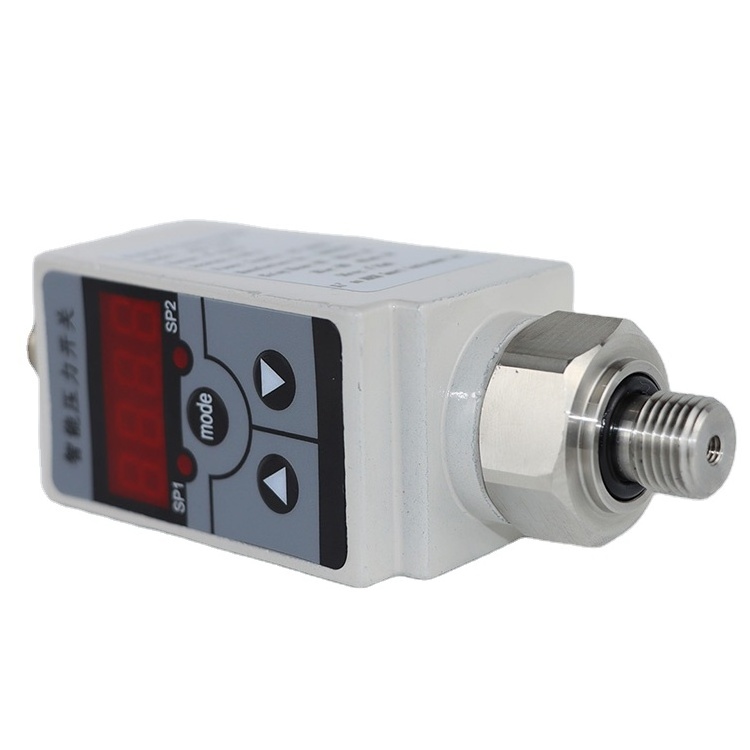

ACD-131K i
ntelligent pressure switch is an intelligent digital pressure measurement and control product integrating pressure measurement, display, output and control. It has high stability and fast response rate, and is suitable for high-speed response occasions such as hydraulic pressure.
Features:
1.Fast switching rate, 320 times/second
2.Support range scaling and migration
3. Pressure preset switch point and switch point action delay function
4. Switch output function optional (hysteresis function, window function)
5. Equipped with switch point node action light-emitting diode, easy to observe
6.Button adjustment and on-site setting of various parameters, easy to operate
7.2-way switch output, load capacity 1.2A
8.(4～20mA) analog output
9. The display window can be rotated 330°
|
Control range
|
-0.1MPa ～0～100MPa
|
|
|
control precision
|
0.5%F.S
|
|
|
stability
|
≤0.1%F.S/year
|
|
|
Display accuracy
|
±0.1%F.S
|
|
|
Display method
|
four-digit digital tube
|
|
|
Display range
|
-1999~9999
|
|
|
Power range
|
24V±20%
|
|
|
Maximum power consumption
|
< 1W
|
|
|
load capacity
|
<24V 1.2A
|
|
|
switch type
|
PNP, NPN optional
|
|
|
Response time
|
≤5ms
|
|
|
Switch life
|
>1 million times
|
|
|
Protection class
|
IP65
|
|
|
medium temperature
|
-40℃～150℃
|
|
|
Note: High temperature accessories are required when the medium temperature exceeds 80°C
|
|
|
