Quick Details
-
Filling Accuracy:
-
±2
-
Voltage:
-
380v 50hz 3p
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
2300*1900*2200mm
-
Weight:
-
2500 KG
-
Product name:
-

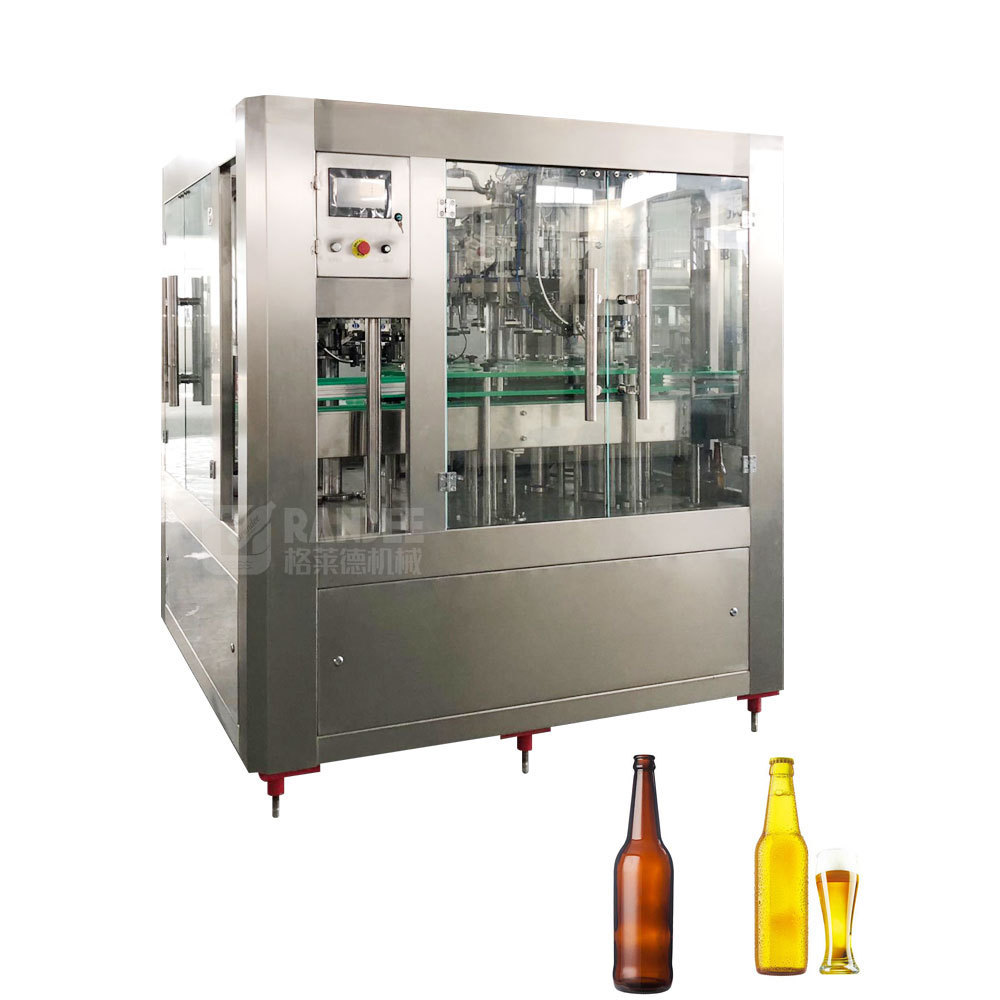

Automatic glass bottle small beer filling bottling machine
-
Function:
-
Washing Filling Capping 3 in 1
-
Capacity:
-
2000BPH for 500ml glass bottle
-
Filling volume:
-
220ml-500ml
-
Material:
-
SUS304/316
-
Filling temperature:
-
3-8degree
-
Vaccum:
-
one time vaccum
-
Usage:
-
Beverage Packaging
-
Cleaning pressure:
-
0.25-0.3MPa
-
Filling valve:
-
Nanjing Valve
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Filling Accuracy:
-
±2
-
Voltage:
-
380v 50hz 3p
-
Place of Origin:
-
Jiangsu, China
-
Dimension(L*W*H):
-
2300*1900*2200mm
-
Weight:
-
2500 KG
-
Product name:
-
Automatic glass bottle small beer filling bottling machine
-
Function:
-
Washing Filling Capping 3 in 1
-
Capacity:
-
2000BPH for 500ml glass bottle
-
Filling volume:
-
220ml-500ml
-
Material:
-
SUS304/316
-
Filling temperature:
-
3-8degree
-
Vaccum:
-
one time vaccum
-
Usage:
-
Beverage Packaging
-
Cleaning pressure:
-
0.25-0.3MPa
-
Filling valve:
-
Nanjing Valve
GRANDEE MACHINE
is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
Glass Bottle Beer Carbonated Natural Mineral Water Filling Machine DXGF14-12-5
Beer Carbonated drink filling equipment adopts bottle neck holding transmission technology to realize fully automatic bottle rinsing, pulp filling, carbonated filling and cap screwing. It employs single cavity plunger type of fixing filling volume technique. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable.
The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation etc.
Washing part
Rotary rinser is one of the key components, which is installed on the clamp, media distributor and other components.
When the figure of the rotary bearing rotation, driven turret and the other components are installed on the rotating simultaneously,
slewing bearing lubrication in order to concentrate lubrication.
Filling part
Open the charge valve, form a pathway between bottle and alcohol tank’s CO2.
The CO2 will filling into the bottle through the pathway. The charge valve will closed when the setting time reached,
that means the CO2 pre-charge process end.
Vacuum extraction
Open the take out-vacuum valve pole, form a pathway between bottle and vacuum.
The CO2 and air will be discharged from the bottle by the pathway, and form into vacuum in the bottle.
Capping part
The capper is made up of hopper, slide way, upper capper, lower capper, rise and fall parts,
and preventing turning upright stanchion.
The requirements of crown cap:
Only when the height and diameter all accord with crown cap’s standard,
the capper’s normal running can be guaranteed. The crown cap should be stored in the dry room.
Main technical parameter
|
Model
|
DXGF
14-12-5 |
DXGF
18-18-6 |
DXGF
24-24-8 |
DXGF
32-32-8 |
DXGF
40-40-12 |
DXGF
50-50-12 |
|||||
|
Capacity (500ml)
|
2000-3000
|
3000-5000
|
5000-7000
|
8000-9000
|
10000-12000
|
12000-14000
|
|||||
|
Suitable bottle shapes
|
PET circular
|
|
|
|
|
|
|||||
|
Bottle diameter
|
50-115mm
|
|
|
|
|
|
|||||
|
Bottle height
|
160-320mm
|
|
|
|
|
|
|||||
|
Filling type
|
Isobaric filling
|
|
|
|
|
|
|||||
|
Filling pressure
|
＜0.4MPa
|
|
|
|
|
|
|||||
|
Rinsing water pressure
|
＞0.06MPa ＜0.2MPa
|
|
|
|
|
|
|||||
|
Application
|
Carbonated soft drink bottling line
|
|
|
|
|
|
|||||
|
Total power
|
4.4kw
|
5.2kw
|
6.2kw
|
7.5kw
|
8.2kw
|
11kw
|
|||||
|
Overall dimensions
|
2.5*1.9m
|
2.8*1.9m
|
3.2*2.2m
|
3.4*2.5m
|
4.8*2.3m
|
5.5*3.3m
|
|||||
|
Height
|
2.3m
|
2.5m
|
2.5m
|
2.5m
|
2.5m
|
2.5m
|
|||||
|
Weight
|
3000kg
|
4500kg
|
6000kg
|
8500kg
|
10000kg
|
11000kg
|
|||||
|
NAME
|
BRAND
|
AREA
|
|
PLC
|
Siemens
|
Germany
|
|
INVERTER
|
Siemens
|
Germany
|
|
CONTACTOR
|
Siemens
|
Germany
|
|
TOUCH SCREEN
|
Siemens
|
Germany
|
|
INVERTER
|
Siemens
|
Germany
|
|
MOTOR
|
ABB
|
SWISS
|
|
PNEUMATIC PARTS
|
FESTO
|
GERMANY
|
|
ELECTRICAL PARTS
|
SCHNEIDER
|
FRANCE
|
Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
Carbonated drink mixer and water chiller
Carbonation mixer: 1500L/Hr,2000L/Hr,3000L/Hr,5000L/Hr, etc. Co2 content is from 2.0-3.8
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature).
