Quick Details
-
Voltage:
-
AC 220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GookiiTech
-
Gross Power:
-
9KW
-
Dimensions(L*W*H):
-
2600(L)x1220(W)x800(H) mm
-
Weight:
-
180 KG
-
Product Name:
-
Stainless Steel Hydro Dipping Tank
-
Overall Equipment Size/ mm:
-
2600 mm Long x 1220 mm Wide x 800 mm Tall
-
Overall Equipment Size/ in:
-
102.4 in Long x 48 in Wide x 31.5 in Tall
-
Internal Processing Area/ mm:
-
2200 mm Long x 1050 mm Wide x 700 mm Deep
-
Internal Processing Area/ in:
-
86.6 in Long x 41.3 in Wide x 27.6 in Deep
-
Material:
-
Stainless Steel, 1.5mm Thick
-
Power Configurations:
-
Single Phase 220V, 50 Hz, 7KW
-
Heating System:
-
Heater 2 Set, Single Phase 220V, 50 Hz, 6KW
-
Water Circulation System:
-
Pump 1 Set, Single Phase 220V, 50 Hz, 750W
-
Water Capacity:
-
1620 Liters/ 428 US Gallons
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Water Transfer Printing
-
Color & Page:
-
Multicolor
-
Voltage:
-
AC 220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GookiiTech
-
Gross Power:
-
9KW
-
Dimensions(L*W*H):
-
2600(L)x1220(W)x800(H) mm
-
Weight:
-
180 KG
-
Product Name:
-
Stainless Steel Hydro Dipping Tank
-
Overall Equipment Size/ mm:
-
2600 mm Long x 1220 mm Wide x 800 mm Tall
-
Overall Equipment Size/ in:
-
102.4 in Long x 48 in Wide x 31.5 in Tall
-
Internal Processing Area/ mm:
-
2200 mm Long x 1050 mm Wide x 700 mm Deep
-
Internal Processing Area/ in:
-
86.6 in Long x 41.3 in Wide x 27.6 in Deep
-
Material:
-
Stainless Steel, 1.5mm Thick
-
Power Configurations:
-
Single Phase 220V, 50 Hz, 7KW
-
Heating System:
-
Heater 2 Set, Single Phase 220V, 50 Hz, 6KW
-
Water Circulation System:
-
Pump 1 Set, Single Phase 220V, 50 Hz, 750W
-
Water Capacity:
-
1620 Liters/ 428 US Gallons

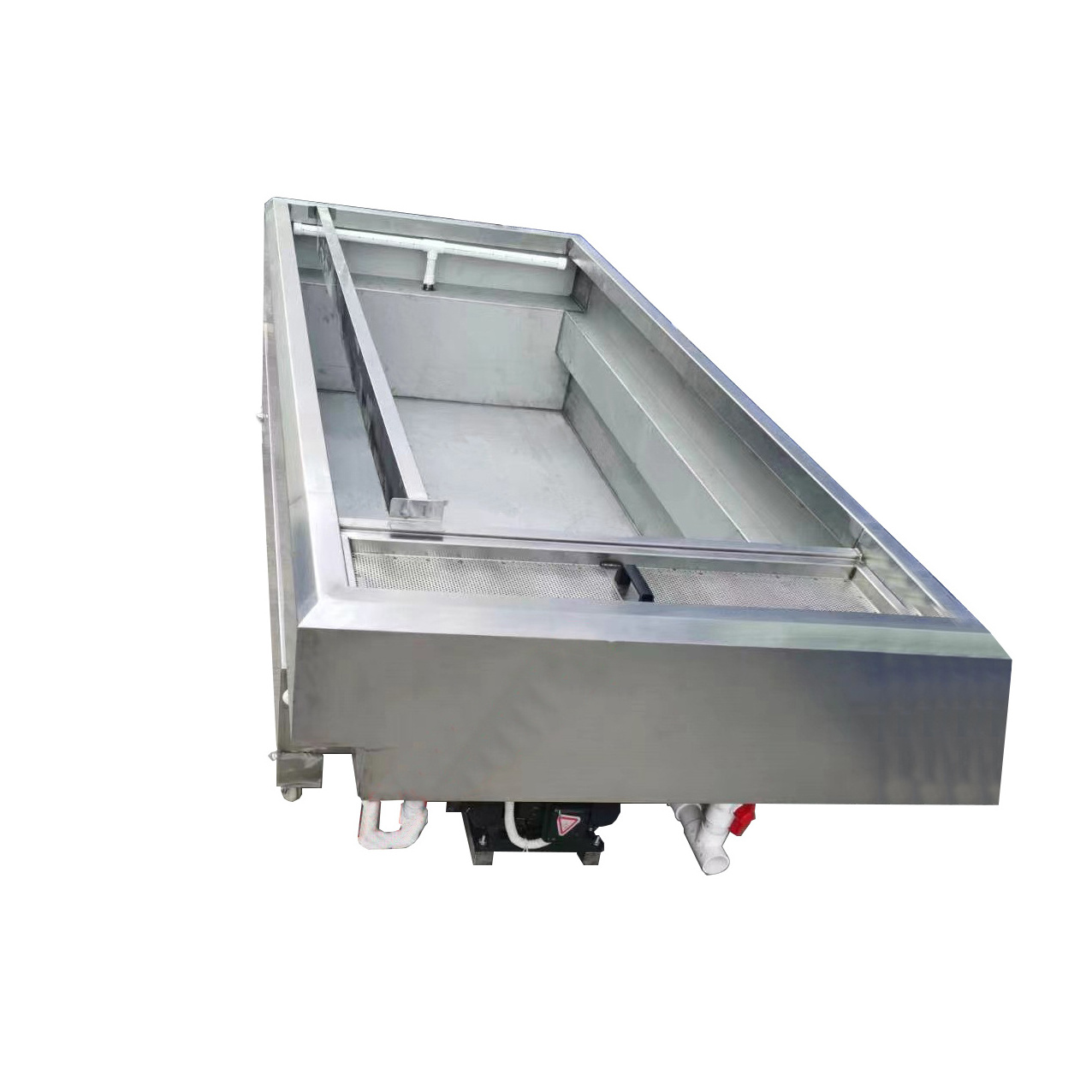

2.6M Stainless Steel Hydro Dipping Machine
By GookiiTech
|
Overall Equipment Size |
102.4 in Long x 48 in Wide x 31.5 in Tall |
2600 m m Long x 1220 m m Wide x 800 m m Tall |
|
Internal Processing Area |
86.6 in Long x 41.3 in Wide x 27.6 in Deep |
2200 m m Long x 1050 m m Wide x 700 m m Deep |
|
Material |
S tainless S teel |
1 . 5 mm T hick |
|
Water C apacity |
1620 Liters |
428 US Gallons |
|
Weight of W ater |
1620 Kg |
3571.5 P ounds |
|
Power Configurations |
Single P hase 220V , 50 Hz |
7KW |
|
Heating System |
Heater 2 Sets |
Single P hase 220V , 50 Hz, 6KW |
|
W ater C irculation S ystem |
Pump 1 Set | Single P hase 220V , 50 Hz, 750W |
|
Control System (Weak Current 24V) |
Power Indicator
Pump Switch/ Indicator Water Inlet Switch/ Indicator |
Drain Valve Switch/ Indicator
Temperature Regulator E mergency S top B utton |
|
Electromagnetic Valve |
2 Sets
|
Water Inlet; Drain Valve |
|
Package Details |
Net Weight: 180 Kg | Gross Weight: 220 Kg |
|
Package Size: 2750 m m Long x 1350 m m Wide x 900 m m Tall |
Material: Non-fumigation Plywoodcase |
Production processes
Hydro Dipping Samples
1. Do you have all these machines available in your factory?
- Some of the machines have stock, and some customized machines have no stock, but we can finish production in 7 to 10 days once you confirmed the order.
2. What if I want to do some customized on the machine? Likely to put my own logo, have some paint outside, or add some elements?
- We fully accept customization, we will produce according to your requirements.
3. How to place the order?
- Please choose the type you like, and send us your address and contact information, we will check the shipping price and quote everything to you immediately. If you agree the terms, then you can start paying, you can pay by visa credit card, western union, paypal etc.
4. How many days I can receive my products?
- It depends on your country, and the shipping way you choose, e.g.: to America & Europe, machines will be shipped by sea shipping, about one month you can receive. If Korea and Japan, sea shipping is about one week. Africa and other places also one week. Other Asia countries, about 2 weeks. If some small or light weight products, they can be shipped by air, the shipping time to countries all over the world, is less than 10 days, 6 to 10 days.
