Quick Details
-
Output Current:
-
400A
-
Output Frequency:
-
50Hz/60Hz, 50/60Hz
-
Output Power:
-
>1000KW
-
Type:
-
DC/AC Inverters
-
Capacity:
-
3kW-2500kW
-
Input Voltage:
-
120V/220V/240V/380V
-
Output Voltage:
-
220V/380V/400V
-
Output waveform:
-
Pure Sine Wave Output
-
Efficiency:
-
95%
-
Certificate:
-
CE
-
Display:
-
LCD
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GREEF
-
Model Number:
-
BNXG-1MWS
-
Output Current:
-
400A
-
Output Frequency:
-
50Hz/60Hz, 50/60Hz
-
Output Power:
-
>1000KW
-
Type:
-
DC/AC Inverters
-
Capacity:
-
3kW-2500kW
-
Input Voltage:
-
120V/220V/240V/380V
-
Output Voltage:
-
220V/380V/400V
-
Output waveform:
-
Pure Sine Wave Output
-
Efficiency:
-
95%
-
Certificate:
-
CE
-
Display:
-
LCD

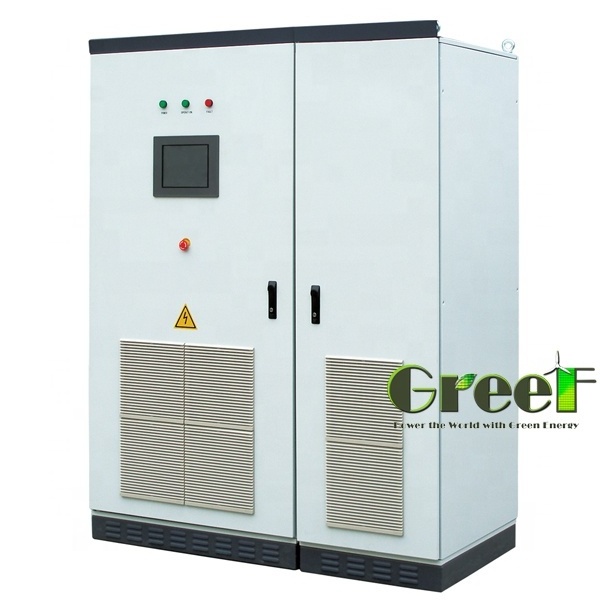

Grid Tie Inverter
- Main circuit adopt USA TI company DSP chip and IGBT from Mitsubishi, driving protection is from Japan Mitsubishi chip
- SPWM pulse width modulation technology,pure sine wave output.
- Power factor approaches 1
- Inverting current close-cycle control
- Power to control and adjustable
- Wide input voltage range to adapt to the needs of different occasions
- Have a full range scheme of power protection
- Perfect self-detection and self-protection function.
- Automatic protection function when there’s something wrong with the system
- Circuit frame compact, Max.Efficiency≥95%
The Grid tie Inverter is the core product for on-grid power system ,which will convert the DC to AC and feed the power into the grid.GREEF can provide customized inverter for your wind turbine system ,solar power system ,wind solar hybrid system, hydro energy system etc.
The power range can be from 3kW to 2500kW .
|
Model |
BNWG -1MW S |
|
Isolation |
Low frequency transformer isolation |
|
Maximum DC input power |
1100 KWp |
|
Max AC input voltage |
550V ac |
|
Input voltage range |
300Vac-5 2 0Vac |
|
AC output power |
1000 KW |
|
THD of AC current |
<3%( Rated power ) |
|
Power factor |
>0.99 |
|
Max. efficiency |
95% |
|
Euro efficiency |
93% |
|
Output rating voltage |
380Vac 50HZ |
|
Allowed Grid Voltage Range |
310~450Vac |
|
Allowed Grid Frequency Range |
47.5~51.5Hz |
|
Internal power consumption (standby) |
< 2 0 0 W |
|
Automatically put into operation conditions |
DC input and power to meet the requirements, the inverter automatically run |
|
Automatic restart after power failure time |
2min |
|
Protection |
Reverse polarity, short circuit, island, overheating and overload etc. |
|
Comm. interfaces |
Ethernet |
|
Operating Temp. |
-25℃~+50℃ |
|
Relative humidity |
0~90%, Non-condensing |
|
Altitude(m) |
6 000 meters (over 2000 m with derat e required) |
|
Cooling method |
Forced air cooling |
|
Noise |
≤60dB |
|
Protection degree |
IP20(indoor) |
Wind grid-Tied generation system is consist of wind turbine, controller , grid-tied inverter , metering device and power distribution system.
Wind energy is converted to the DC power , by parallel to the direct model contrary to change electric energy transformed into the grid network and frequency, wave aspect of the current , part of the power to local , surplus feeding the electricity network , so Grid-Tied rectifier Inverter is the crucial equipment in wind power system .
As our corporate users, you enjoy the following service :
(1) The machine warranty for free in two year s ;
(2) Technical support;
(3) Within 24 hours for respond after receiving notification;
(4) Cost maintenance forever.
When you confirm the failure of equipment, please promptly contact us and provide the equipment model, serial number and complete description of the problem with video.
1.Plywooden case . And for delivery by sea we can use tray
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air are available.
If you have any request in package and shipping please tell our sales we will do according to your request.
