Quick Details
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.08
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Henan, China
-
Width:
-
610mm
-
Length:
-
12m
-
Shrinkage (1800℉, 3h):
-
3.0%-3.5%
-
Brand Name:
-
Hongda
-
Model Number:
-
XWZ
-
Product name:
-
ceramic cotton fiber paper
-
Package:
-
Carton
-
Color:
-
Pure White
-
Size:
-
2*610*30000mm
-
Classification temperature:
-
1050/1260/1350/1430/1600
-
Work Temp:
-
1150℃
-
Aplication:
-
Heat insulation, Sealable gasket Paper
-
Insulation:
-
Electric Insulation
-
Feature 1:
-
Excellent Heat Resistance
Quick Details
-
Chemical Composition:
-
AL2O3+SIO2
-
Ultimate Strength (≥ MPa):
-
0.07-0.13
-
Working Temperature:
-
1150-1350
-
Fiber Diameter:
-
3-5um
-
Thermal Conductivity:
-
0.08
-
Density (kg/m³ ):
-
128
-
Place of Origin:
-
Henan, China
-
Width:
-
610mm
-
Length:
-
12m
-
Shrinkage (1800℉, 3h):
-
3.0%-3.5%
-
Brand Name:
-
Hongda
-
Model Number:
-
XWZ
-
Product name:
-
ceramic cotton fiber paper
-
Package:
-
Carton
-
Color:
-
Pure White
-
Size:
-
2*610*30000mm
-
Classification temperature:
-
1050/1260/1350/1430/1600
-
Work Temp:
-
1150℃
-
Aplication:
-
Heat insulation, Sealable gasket Paper
-
Insulation:
-
Electric Insulation
-
Feature 1:
-
Excellent Heat Resistance
gasket paper material flexible thermal insulation sheet ceramic cotton fiber paper

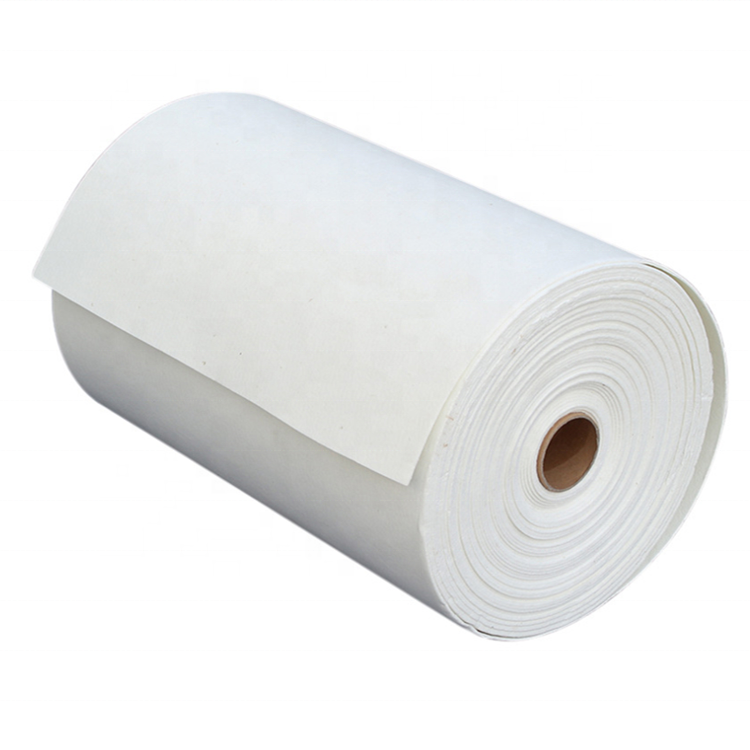

What is Ceramic Fiber Paper?
ceramic cotton fiber paper consists primarily of high purity alumnio-silicate fiber and is manufactured through a fiber washing process. This process produces a non-woven matrix blend of the fibers, binders, and additives to form randomly oriented fibers that are flexible, uniform, and lightweight. This process controls the content of unfiberized shots to a minimal level within the paper. Available in 3 grades with a variety of dimensions and temperature ratings.
Additionally, our Binderless paper provides a smoke free option and is manufactured without the organic binder system. ceramic cotton fiber paper is free of organics and used when higher fired strength is required or in applications where even a small amount of organic burnout is unacceptable.
Product details
|
characteristics: |
(1) Low thermal capacity (2) Low thermal conductivity (3) Excellent electrical insulation properties (4) Excellent machining performance (5) High strength, tear resistance (6) High flexibility (7) Low slag content (8) Excellent fire proof property |
Product index gasket paper material flexible ceramic fiber thermal insulation sheet
| Ceramic Fiber Paper | |||||
|
Product Name |
Standard |
High pure | High Aluminium |
Zirconium |
|
|
Chemical Composition |
AL 2 O 3 |
43 | 47 | 55 | 38 |
|
SiO 2 |
53 | 51 | 44 | 44 | |
|
Fe 2 O 3 |
1.0 | 0.3 | 0.3 | 0.2 | |
|
CaO + MgO |
≤0.3 |
≤ 0.3 | ≤ 0.3 | ≤ 0.2 | |
|
NaO + KO 2 |
≤ 0.5 | ≤ 0.3 | ≤ 0.3 | ≤ 0.2 | |
|
Max.Temperature(°C) |
1050
|
1150 | 1260 | 1430 | |
|
Density (kg/m3) |
160-220kg/m3 |
||||
|
Thickness(mm)
|
0.5-10mm |
||||
|
Width (mm)
|
1220/610 |
||||
|
Length (mm) |
60000/40000/30000/20000/15000/12000/10000 | ||||
With the company healthy and fast development, our ceramic cotton fiber paper products had been sold to all over the country, such as Vietnam, India, Pakistan, Kazakhstan and other southeast Asian countries and regions.
Customer Reviews
ceramic cotton fiber paper package is made from six layers kraft paper which is suitable for long-distance transaction.
We pay highly attention to every order, will provide the pictures and records of every packaging details to customers. gasket paper material flexible ceramic fiber thermal insulation sheet
|
Typical application |
(1) Industrial insulation, sealing, anti-corrosion material (2) Insulation material for instruments and heating element (3) Insulation material for automobile and aerospace industry (4) Expansion joints filling material (5) Isolation for construction material, metallurgy and glass industries, (6) Molten metal sealing gasket (7) Fireproof material (8) Substitute for glass fiber and asbestos fiber |
