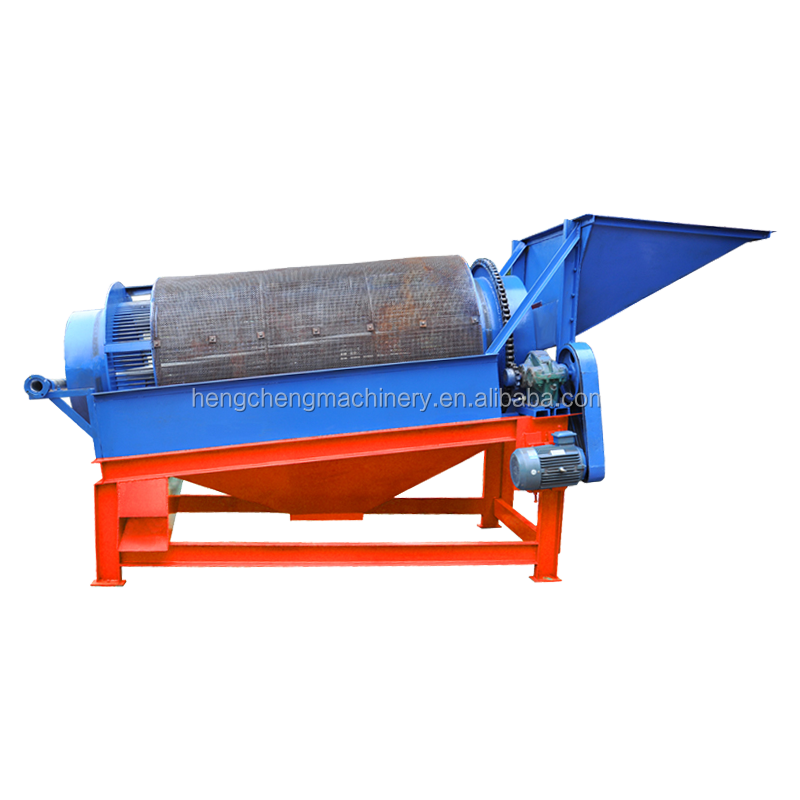

Mine Washing Machine tromel for placer gold mining plant

Mine Washing Machine tromel for placer gold mining plant

Features of trommel screen :

• Screen replaceable for different mesh sizes( many model mesh size for your chioce )

• Easily changed screen plates ( The inner screen is round steel and can be removed one by one after wear, making it easy to replace parts )

• Unique screen design, result in higher capacities, longer screen life and no material clogging

• Gear drive mechanism

• Is Axeless , can be insert the nozzle in the middle
• The whole screen in the lathe processing ,concentricity is higher.

Machince Structures :

If you have intrested in this products , " Send " the inquiry to get low price

Machine working principle:

♣ From the storage hopper ,the raw material is fed into the drum , and lifted up by the rotation, in the meantime washed by the flushing water as it falls back down, this action is repeated with each revolution along the wall of drum screen .the finer ore passes through the screen while the bigger ore tumbles towards the eventual exit at the backside of the drum.

♣ The fine size mineral ore is then passed to the downstream process equipment ,which can be in various forms ,such as centrifugal concentrator ,spiral chutes , jig machines etc

There have some question need comfirm with you (convinient for chioce model )

1) What's the capacity would you want ?

2) The simple screen mesh or double would you like ?

3) What's the size of the screen mesh ?the wet screen or dry screen ?

4) What 's the materials would you deal with ?

There have some model for your reference ? please checking !

Application in the mine sites:

Sand Trommel screen( washing plant) is a main washing & screening machine for alluvial deposit minerals, especially for those gold mine sites ; our trommel machine already exported to many different countries, like Africa Ghana, Togo,  Asia Philippines, Australia. etc

Packing & Delivery:
